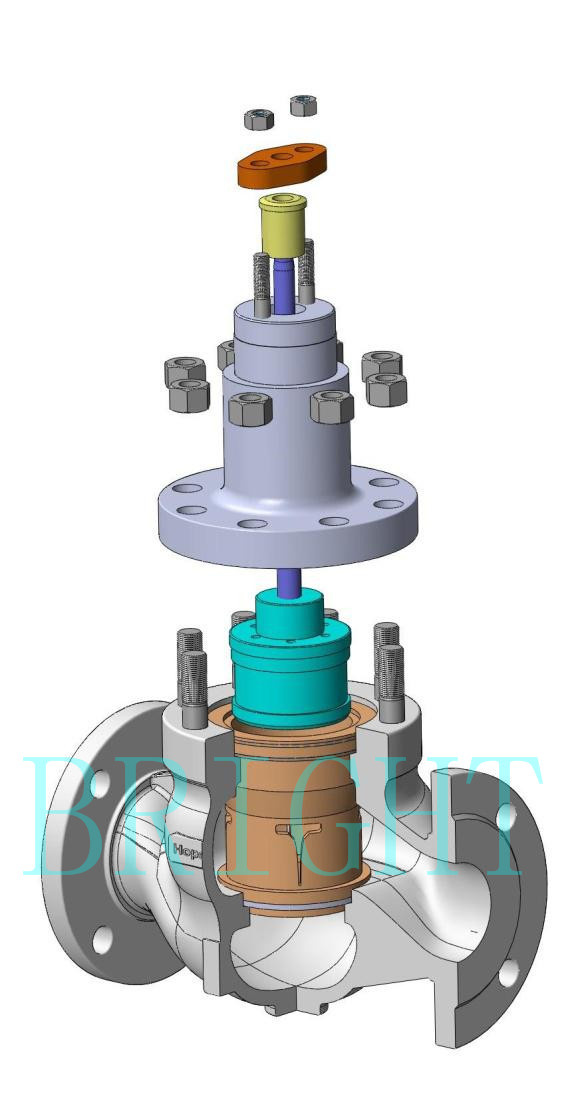

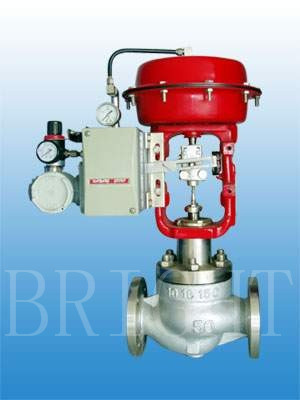

Hcb/Hcn/Hcp Pneumatic Balanced Type Control Valve

Price:	US $ 200/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	1/Piece
Pay Type:	L/C,T/T,D/P,Paypal,Money Gram

Contact Supplier

Chongqing Bright Technology Co., Ltd.

Showroom Product Company Profile

1. Product Introduction
HCB/HCN/HCP Pneumatic Balanced Cage Control Valve is applicable to chemical, petroleum, metallurgy, light indutry and other industries for the automatic control of liquid, gas and steam in pipelines. It features small pressure drop, good stability, low noise, small cavitation, wide adjustable range and high accuracy of flow characteristic, low leakage, reliable packing seal and compact structure.
Patent No. 2012202576089, 2012202575584, 2012202352849, 2012202282776,
2012301852068

2. Main Specifications

CV value and rated stroke	High capacity plug: see Table 2 of Catalogue for HCB/HCN/HCP Pneumatic Balanced Cage Control Valve; High accuracy flow characteristic plug: see Table 3 of Catalogue for HCB/HCN/HCP Pneumatic Balanced Cage Control Valve
Flow characteristics	Metal seat	High capacity flow characteristics	Refer to Fig. 1 of Catalogue for HCB/HCN/HCP Pneumatic Balanced Cage Control Valve for EQ% characteristic (%V)and linear characteristic(LV)
	Soft seat		Refer to Fig. 1 of Catalogue for HCB/HCN/HCP Pneumatic Balanced Cage Control Valve for EQ% characteristic (%T) and linear characteristic (LT)
	Metal seat	High accuracy flow characteristics	Refer to Fig. 2 of Catalogue for HCB/HCN/HCP Pneumatic Balanced Cage Control Valve for EQ% characteristic (%VF) and linear characteristic (LVF)
	Soft seat		Refer to Fig. 2 of Catalogue for HCB/HCN/HCP Pneumatic Balanced Cage Control Valve for EQ% characteristic (%TF) and linear characteristic (LTF)
	Note: Operating temperature and DP range of the soft seat is shown in Fig. 3 of Catalogue for HCB/HCN/HCP Pneumatic Balanced Cage Control Valve
Adjustable range	HCB/HCN/HCP	50:1
Seat leakage	HCB/HCN/HCP	Hard seal: Class II( III,V,VI for option)		Soft seal: Class VI
performance	Hysteresis error	With intelligent positioner: less than 0.5% of full stroke
	Basic error	With intelligent positioner: less than ±0.5% of full stroke
Allowable DP	HCB/HCN/HCP	Refer to Fig 7 of Catalogue for HCB/HCN/HCP Pneumatic Balanced Cage Control Valve

3. Body Specifications

Nominal Dia.	mm		40	50		65	80	100	125
	inch		1.5	2		2.5	3	4	5
Model	HCB		Δ	Δ		Δ	Δ	Δ	Δ
	HCN		Δ	Δ		Δ	Δ	Δ	Δ
	HCP		Δ	Δ		Δ	Δ	Δ	Δ
Nominal Dia.	mm		150	200		250	300	350	400
	inch		6	8		10	12	14	16
Model	HCB		Δ	Δ		Δ	Δ	Δ	Δ
	HCN		Δ	Δ		Δ	Δ	Δ	Δ
	HCP		Δ	Δ		Δ	Δ	Δ	Δ
Nominal Pressure	PN		1.6,4.0,6.4
	ANSI		CL150,CL300,CL600
Connec.	Flanged; Welded
Model & Product Name	HCB	Balanced Cage Globe Control Valve
	HCN	Low-noise Cage Guided Globe Control Valve
	HCP	Cage Guided Single-Seated Globe Control Valve
Body type	Through-type Casting Globe Valve
Gland type	Bolt clamping type
Plug type	Pressure Balanced Plug
Bonnet temp. range	(Nor.)				-17~ +230ºC
	I(EI)				-45~ -17ºC,+230~ +566ºC
	II(EII)				-100~ -45ºC
	III(EIII)				-196~ -100ºC

Note: 1.Δ refers to the specifcation range of valve.

4. Applicable Standard

	Chinese Standard	American Standard
Quality assurance	ISO9001,TS2710J59	ISO9001
Design and manufacture	GB12224-2005	ASME B16.34
Flange standard	GB9112-9124,HG20592-2009	ASME B16.5
Length of structure	GB12221-2005	ASME B16.10
Inspection and test standard	GB/T4213-2008	API598

5. Temp. Range of Main Material for Body

Name	Material	Temp. Limit	Name	Material	Treatment	Temp. Limit
Body	WCB	-40~+450ºC	Plug	304	+PTFE	-20~+180ºC
	CF8	-60~+580ºC		304	+STL	-60~+580ºC
	CF8M	-60~+580ºC		316	+PTFE	-20~+180ºC
	CF3M	-60~+580ºC		316	+STL	-60~+580ºC
Bonnet	WCB	-40~+450ºC		316L	+PTFE	-20~+180ºC
	CF8	-60~+580ºC		316L	+STL	-60~+580ºC
	CF8M	-60~+580ºC	Cage	304	+STL	-60~+580ºC
	CF3M	-60~+580ºC		316	+STL	-60~+580ºC
Packing	PTFE	-20~+180ºC		316L	+STL	-60~+580ºC

Prod Model:	HCB/HCN/HCP
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Nominal Diameter:	40mm (1.5")-400mm(16")
Nominal Pressure:	Pn1.6MPa (Cl150) -Pn6.4MPa (Cl600)
Material:	CS, S.S, Alloy Steel
