Product Explanation:
Nominal Diameter: DN150~DN3500
Nominal Pressure: PN2.5~PN40
Suitable Medium: Water, sea water, Sediment water, Oil and so on
Medium temperature: <<80° C
Opening valve time: 10~120 seconds( adjust)
Quick closing time: 1.5~30 seconds(adjust)
Slow closing time: 6~120 seconds(adjust)
Fast close angle: 70° ± 10°
Slow close angle: 20° ± 10°
Open state minimum flow resistance coefficient: 0.1
Optional control power: AC220V, DC220V, DC110V, DC24V

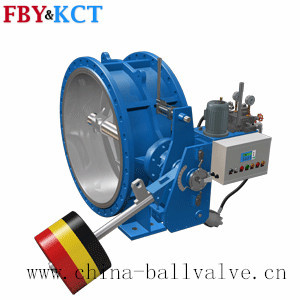

Hydraulic control slow closed butterfly valve is more advance pipeline control device in the domestic and abroad at present. Mainly installed on the entrance of turbine hydropower station., Used for turbine inlet valve. Or installed on water conservancy, electric power, water supply and drainage and other kinds of pump station of the water pump outlet, To be instead of check valve and gate valve. When it working, this valve cooperated with the pipeline host, According to the principle of hydraulic transient process, Through the electro-hydraulic control program of the effective setting, Achieved the pipeline cut-off reliably, eliminating pipeline water hammer effectively, and can auto-close valve without electric, So that can protect piping system security.
Our company produced the Intelligent hammer hydraulic control butterfly valve is heavy hammer potential of auto close valve power source. Using PLC intelligent control system. And can be according user requirements add the manual, automatic locking device, Small flow resistance modulus. High degree of automation, Completely function, Stable and reliable performance
Are our company widely collected, researched and summary in the basic of the domestic and oversea congeneric products, Bring in the valve, hydraulic, electrical and many industries'kinds of research results, thick is high, Developed a new generation of intelligent, high efficiency and energy saving products.
Kaixite Valve Co., Ltd. is a professional manufacturer For Ball Valve and valve actuators, located in the "China hometown of valves&pumps"-Oubei, Wenzhou. We specialized in Ball valve with ISO5211 direct mounting pad and various kinds of actuators, including electric actuators, pneumatic actuators, hydraulic actuators, which can meet with various automation flow controls.
In accordance with the ANSI, DIN, JIS standards, Our ball valves are widely used in Petrochemicals, Chemical, LNG&Cryogenics, Pulp&paper, Water and Wastewater, Mining, Refining, Marine, Electric power etc fields, successfully for flow controls. Our products had exported to Europe, America, Middle East, Southeast Asia etc.
KCT valve has a lot of advanced Machining center, NC lathes, valve test center, and computer control center with auto CAD/CQM software can effectively ensure our successful development, design, production, and quality control.
According to the different working conditions, we effectively meet customer' S requirements with top quality goods and service. We consider it is our company' Life to give every customer fully satisfaction and the remarkable quality and service are the KCT person' S forever pursue.
Welcome Friends to contact us from all over the world to establish business with us.
