| Price: | US $ 20000/Set |
|---|---|
| Trade Terms: | FOB,CFR,CIF |
| Min Order: | 1/Set |
| Pay Type: | L/C,T/T |
Featrue:Herb extractor can extract liquid or juice from herb, like licorice, stevia,Senna,tea or Polyphenols
Structure: this herb extractor and concentrator include extractor, concentrator, receiver, condenser, cooler, pipes, valves, meters, water-oil separator, filter, vacuum pump, transfer pump, and so on.
Principle: first you put the herb (leaves, root, flower or seed )into extractor, add water or other solvent( like alcohol) into extractor. Then heat the extractor, the component from herb will dissolved into water or solvent, after extraction, then pump the extracted liquid into the concentrator, evaporate the water or solvent( like alcohol) which will be cooled by condenser and flow to receiver , the solvent can be used again next time. the component in concentrator will became into cream or liquid which you need.
The machine extracted herbs like following:

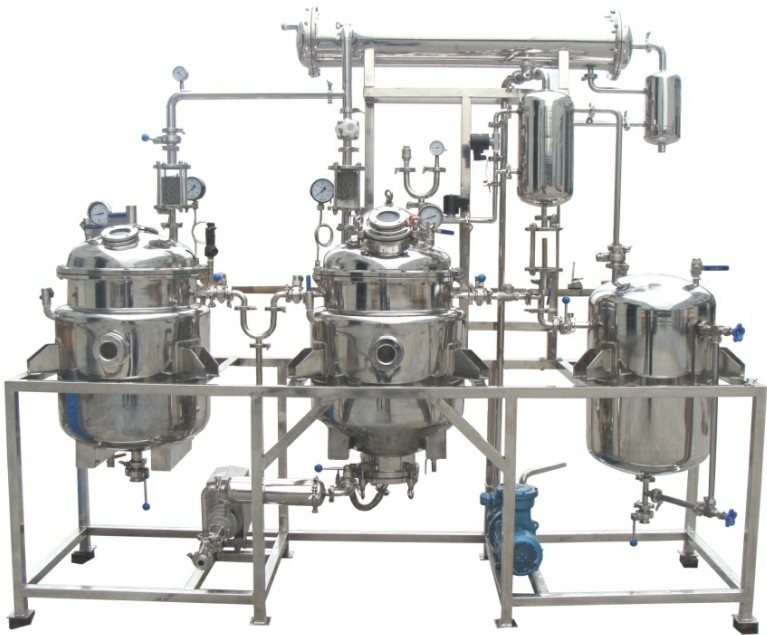

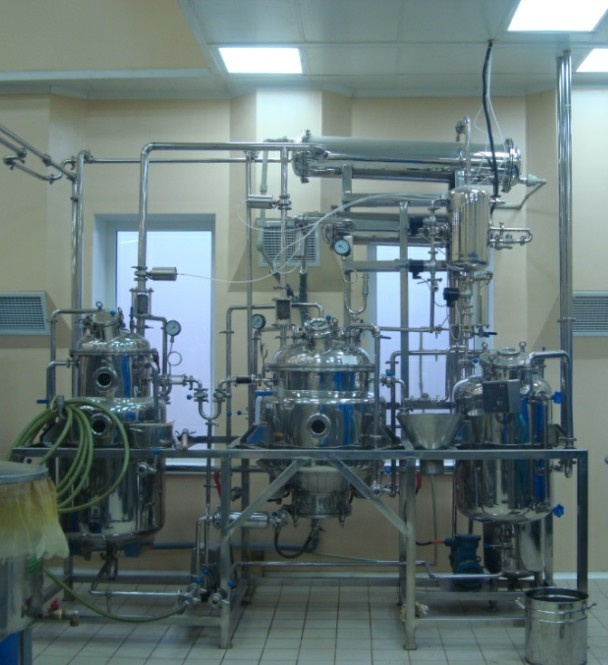

The machine picture

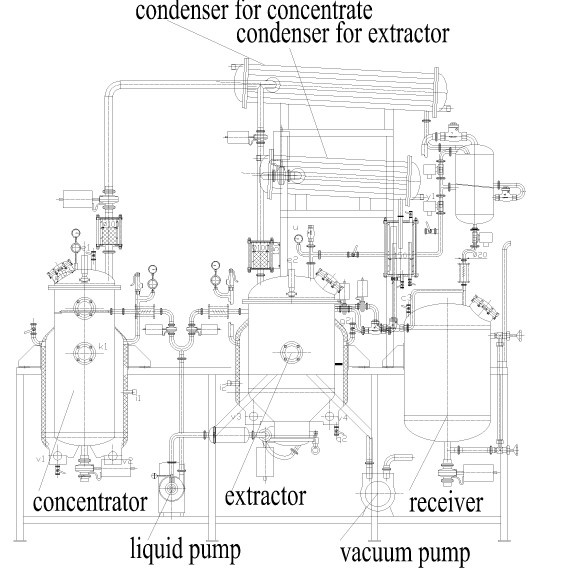

The machine drawing
| Model Items | TD-20 | TD-50 | TD-100 | TD-200 | TD-300 | TD-500 |
| Extraction volume ( L ) | 20 | 50 | 100 | 200 | 300 | 500 |
| Concentration volume ( L ) | 20 | 50 | 100 | 200 | 300 | 500 |
| Working pressure in jacket | < 0 . 1Mpa | |||||
| Working pressure in pot ( Mpa ) | Usual pressure or Negative pressure | |||||
| Extract Temperature ( °C ) | 40-100 | |||||
| Heat Medium | Steam / Hot water/hot oil | |||||
| Vacuum pump model | SK-0.4 | 2X-2.2KW | 2X-2.2KW | 2X-3KW | 2X-3KW | 2X-4KW |
| Electric power ( kw ) | 0.37 | 0.37 | 0.37 | 0.37 | 0.37 | 0.55 |
| Temperature scope | 0-200 °C | |||||
| Total electric power ( kw ) | 6+6 | 12+12 | 15+15 | 18+18 | 24+36 | 36+48 |
| Material | Stainless steel | |||||
| Prod Model: | TD |
|---|---|
| Markets: | North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Type: | Preparation Machinery |
| Finished Dosage Form: | Liquid |
| Certification: | ISO |
