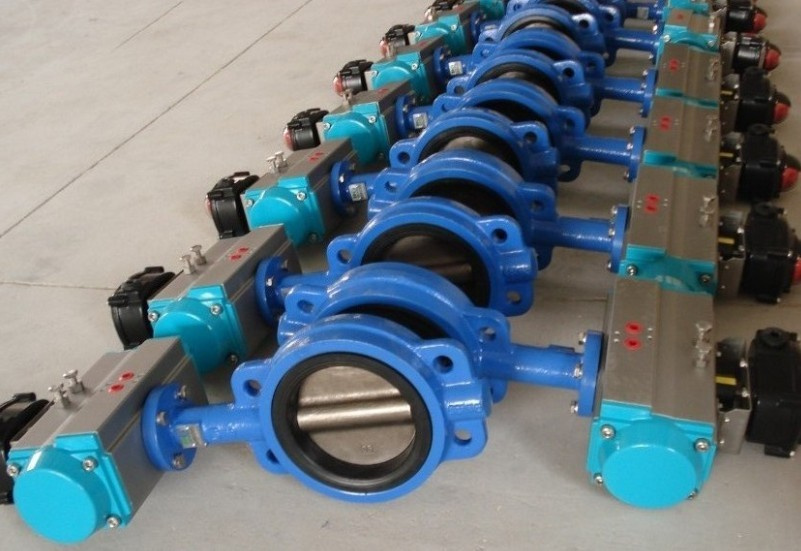

Butterfly valves are valves with a circular body and a rotary motion disk closure member which is pivotally supported by its stem. A butterfly valve can appear in various styles, including eccentric and high-performance valves. These are normally a type of valve that uses a flat plate to control the flow of water. As well as this, butterfly valves are used on firefighting apparatus and typically are used on larger lines, such as front and rear suction ports and tank to pump lines.
TypesConcentric butterfly valves - This type of valves has a resilient rubber seat with a metal disc.
Doubly-eccentric butterfly valves (high-performance butterfly valves or double-offset butterfly valves) - Different type of materials is used for seat and disc.
Triply-eccentric butterfly valves (triple-offset butterfly valves) - The seats are either laminated or solid metal seat design.
Triply-eccentric (offset) designTriple eccentric (offset) Design prevents galling and scratches between the metal seat and the metal disc due to its unique design. The only time where the seal comes into contact with the seat is at the point of complete closure. Triple offset valves are generally used in applications which require bi-directional tight shut-off in oil and gas, LNG/NPG terminal and tanks, chemical factories, and shipbuilding. Widely use for dirty/heavy oil to prevent extrusion.
Wafer-style butterfly valvesThe wafer style butterfly valve is designed to maintain a seal against bi-directional pressure differential to prevent backflow in systems designed for unidirectional flow. It accomplishes this with a tightly fitting seal; I. E., gasket, o-ring, precision machined, and a flat valve face on the upstream and downstream sides of the valve.
Lug-style butterfly valveLug-style valves have threaded inserts at both sides of the valve body. This allows them to be installed into a system using two sets of bolts and no nuts. The valve is installed between two flanges using a separate set of bolts for each flange. This setup permits either side of the piping system to be disconnected without disturbing the other side.
A lug-style butterfly valve used in dead end service generally has a reduced pressure rating. For example a lug-style butterfly valve mounted between two flanges has a 150 psi pressure rating. The same valve mounted with one flange, in dead end service, has a 75 psi rating.
|
Applicable range (Pa) |
10 5 ~1.3x10 -5 |
|
Gas leakage rate (Pa. L/S) |
≤ 1.3x10 -6 |
|
Medium temperature |
-25~+80(Seal material: acrylonitrile butadiene rubber) -30~+150(Seal material: fluororubber)
|
|
Pressure of air supply(MPa) |
0.4~0.6 |
|
Flange standard |
JB919 |
|
Installation position |
Anywhere |
|
Rated voltage |
Standard manufacture: AC220V/50Hz Special designation: AC110V; DC24V; DC12V etc.
|
|
Singal feedback device |
Standard manufacture: Valve position device Speical designation: jiggle siwtch; 4~20mA |
|
Gas cylinder |
Standard manufacture: Special designation: Can choose constant switch on or off |
Outline dimension and connection size
|
Model |
Nominal diameter (DN) |
Φ D |
Φ B |
H |
A |
L |
W |
n-Φ C |
|
GIQ-25B |
25 |
70 |
55 |
170 |
22 |
140 |
92 |
4-Φ 7 |
|
GIQ-32B |
32 |
78 |
64 |
173 |
|
GIQ-40B |
40 |
85 |
70 |
194 |
164 |
105 |
|
GIQ-50B |
50 |
110 |
90 |
205 |
4-Φ 9 |
|
GIQ-63B |
63 |
130 |
110 |
218 |
26 |
|
GIQ-80B |
80 |
145 |
125 |
248 |
30 |
190 |
124 |
|
GIQ-100B |
100 |
170 |
145 |
260 |
4-Φ 12 |
|
GIQ-125B |
125 |
195 |
170 |
273 |
35 |
|
GIQ-150B |
150 |
220 |
195 |
332 |
247 |
140 |
8-Φ 12 |
|
GIQ-200B |
200 |
275 |
250 |
386 |
40 |
302 |
165 |
|
GIQ-250B |
250 |
330 |
300 |
466 |
45 |
372 |
198 |
|
GIQ-300B |
300 |
380 |
350 |
535 |
55 |
432 |
225 |
8-Φ 14 |
|
GIQ-400B |
400 |
500 |
465 |
631 |
60 |
518 |
243 |
8-Φ 18 |
