High Platform Manual Three-Way Ball Valve
| Price: |
Negotiable/Piece |
| Trade Terms: |
FOB |
| Min Order: |
5/Piece |
| Pay Type: |
T/T,D/P |
| SIZE | DN | ISO-5211 | L | Φd | ΦD | R |
| 1/2" | 15 | F03 | 118 | 9.5 | 25.4 | 9 |
| 3/4" | 20 | F03 | 137 | 15.8 | 25.4 | 9 |
| 1" | 25 | F04 | 152.6 | 22.2 | 50.4 | 11 |
| 1-1/2" | 40 | F05 | 175 | 35 | 50.4 | 14 |
| 2" | 50 | F05 | 201.4 | 47.6 | 63.9 | 14 |
| 2-1/2" | 65 | F07 | 227.7 | 60.3 | 77.5 | 17 |
| 3" | 80 | F07 | 260.6 | 73 | 90.9 | 22 |
| 4" | 100 | F10 | 290.5 | 97.4 | 118.9 | 22 |

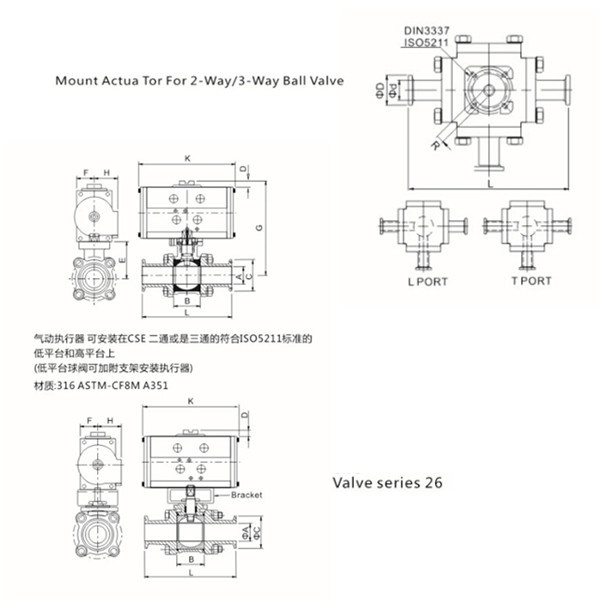

Mount Actua Tor For 2-Way/3-Way Ball Valve
| VDA/VSR | DN | D | F | G | H | K |
| C-125 | 15 | 20 | 28.5 | 131 | 33.7 | 120 |
| C-125 | 20 | 20 | 28.5 | 131 | 3.7 | 120 |
| C-250 | 25 | 20 | 33.6 | 156.2 | 47.8 | 144.3 |
| C-450 | 40 | 20 | 43.5 | 196.2 | 51.5 | 149.2 |
| C1000 | 50 | 20 | 54.5 | 227.2 | 64.5 | 183 |
| C-1000 | 65 | 20 | 54.5 | 250.2 | 64.5 | 183 |
| C-2250 | 80 | 20 | 65 | 278.7 | 75.5 | 259.6 |
| c-2250 | 100 | 30 | 65 | 302.2 | 75.5 | 259.6 |
Ball Valve series 26
| SIZE | DN | ΦA | ISO-5211 | ΦC | B | L | E | TOBQUE LBS/INCH |
| 1/2" | 15 | 9.5 | F03/F04 | 25.4 | 37 | 89 | 37.0 | 90 |
| 3/4" | 20 | 15.9 | F03/F04 | 25.4 | 37 | 101 | 47.0 | 100 |
| 1" | 25 | 22.2 | F04/F05 | 50.4 | 42 | 114 | 57.2 | 140 |
| 1-1/2" | 40 | 35 | F05/F07 | 50.4 | 50 | 138 | 78.2 | 240 |
| 2" | 50 | 47.6 | F05/F07 | 63.8 | 50 | 156 | 86.2 | 480 |
| 2-1/2" | 65 | 60.3 | F07/F10 | 77.6 | 72 | 170 | 109.2 | 650 |
| 3" | 80 | 73 | F07/F10 | 91 | 72 | 197 | 117.7 | 1150 |
| 4" | 100 | 97.4 | F10/F12 | 119 | 95 | 242 | 141.2 | 1400 |
| VDA/VSR | DN | D | F | H | K |
| C-125 | 15 | 20 | 28.5 | 33.7 | 120 |
| C-125 | 20 | 20 | 28.5 | 33.7 | 120 |
| C-250 | 25 | 20 | 33.6 | 47.8 | 144.3 |
| C-450 | 40 | 20 | 43.5 | 51.5 | 149.2 |
| C-1000 | 50 | 20 | 54.5 | 64.5 | 183 |
| C-1000 | 65 | 20 | 54.5 | 64.5 | 183 |
| C-2250 | 80 | 20 | 65 | 75.5 | 259.6 |
| C-2250 | 100 | 30 | 65 | 75.5 | 259.6 |
Ball Valve series 26
| SIZE | DN | ISO-2511 | B | ΦA | ΦC | TOBQUE LBS/INCH |
| 1/2"15 | 15 | F03 | 37 | 9.5 | 25.4 | 40 |
| 3/4" | 20 | F03 | 37 | 15.8 | 25.4 | 65 |
| 1" | 25 | F04 | 42 | 22.2 | 50.4 | 130 |
| 1-1/2" | 40 | F05 | 50 | 35 | 50.4 | 195 |
| 2" | 50 | F05 | 50 | 47.6 | 63.9 | 250 |
| 2-1/2" | 65 | F07 | 72 | 60.3 | 77.5 | 400 |
| 3" | 80 | F07 | 72 | 73 | 90.9 | 600 |
| 4" | 100 | F10 | 95 | 97.4 | 118.9 | 1200 |
Zhejiang WanGuo Fluid Equipment Technology Co., Ltd. is located in the north of Longwan District, founded in 2008. Our company is a technologically-innovative enterprise that integrates development, design, production, sale and technical services.
WanGuo specializes in designing, producing and selling high-precision sanitary pumps, butterfly valves, spherical reversing valves, safety valves, mix-proof valves, sample valves, unions, tri-clamp unions, elbows, tees and all kinds of valves and pipeline connecters. They are widely used in food, beverage, pharmaceutical, bioengineering, water treatment, chemical and other industries.
WanGuo always focuses on high quality, and we have the most advanced OKUMA-BYJC and MAZAK CNC processing equipment, machining centers, milling centers and other automatic production equipment. All of our products are strictly designed and manufactured according to international standards, such as DIN, SMS, 3A, IDF, ISO and RJT. The quality meets the full requirements of GMP, ISO9001 and CE safety standards. Our products are well recognized by clients in Europe, South America, North America, Southeast Asia, the Middle East and our country.
Honestly, quality and development are what we pursue forever. WanGuo people always perfectly combine the high-quality materials, sophisticated designs, strict manufacture process with a quality assurance system, and try our best to offer the best and high-quality products to our customers.
