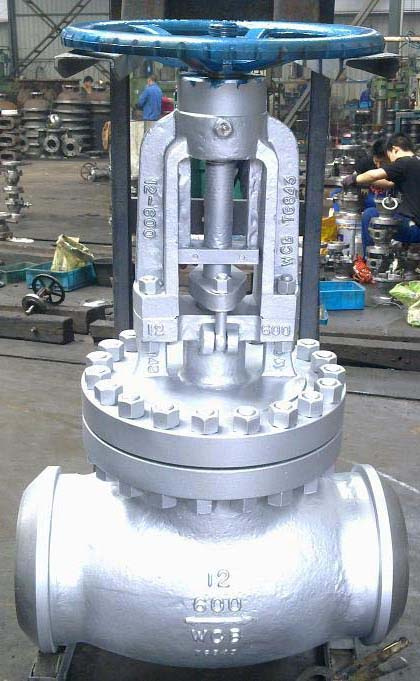

High Pressure ANSI Globe Valve
Price: |
Negotiable/Set |
Trade Terms: |
FOB,CIF |
Min Order: |
1/Set |
Pay Type: |
L/C,T/T |
High pressure globe valve is a kind of ANSI globe valve.
Standards
Design and manufacture as BS1873, ANSI B16.34
Face to face dimensions as ANSI B16.10
End flange dimension as ANSI B16.5
Pressure-temperature ratings as ANSI B16.34
Pressure test as API 598
Test Pressure
Test Item | Shell Test | Seal Test | Back Seal Test | Air Seal Test |
Medium | Water | Ai r |
Unit | MPa | Ibf/in2 | MPa | Ibf/in2 | MPa | Ibf/in2 | MPa | Ibf/in2 |
Pressure (Class) | 150 | 3.1 | 450 | 2.2 | 315 | 2.2 | 315 | 0.5-0.7 | 60-100 |
300 | 7.8 | 1125 | 5.6 | 815 | 5.6 | 815 |
400 | 10.3 | 1500 | 7.6 | 1100 | 7.6 | 1100 |
600 | 15.3 | 2225 | 11 2 | 1630 | 11 2 | 1630 |
900 | 23.1 | 3350 | 16.8 | 2440 | 16.8 | 2440 |
Materials for Main Parts
Name | Material |
Body Bonnet Wedge | A216WCB | A352 LCB | A217WC6 | A217WC9 | A217 C5 | A351 CF8 | A351 CF8M | A351 CF3 | A351 CF3M |
Stem | A182 F6 | A182 F304 | A182 F316 | A182 F304L | A182 F316L |
Stem Nut | ZcuAl10Fe3 Bronze |
Hand wheel | KTH350-10 |
Bonnet Bolt | A193-B7 A320-L7 A193-B8 |
Nut | A194-2H A194-7 A194-8 |
Prod Model: |
J541H-600LB |
Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Size: |
2 Inches to 32 Inches |
Temperature: |
-30 Degree to +425 Degree |
Structure: |
Through Way Globe Valve |
Stem Thread Position: |
Outside Screw Stem Globe Valve |
Standard: |
ANSI |
Application: |
Lining Fluorine Valve |
Shanghai Pacific Pump Manufacture (Group) Co., Ltd., is located at No. 25, Lane 7488, Hutai Road, Shanghai. Our company integrates scientific research, development, production, distribution and service. Our main products have eight series, such as clean water pumps, sewage pumps, chemical pumps, oil pumps, air conditioner pumps, fire pumps and vacuum pumps. We also produce control panel and booster system. Our pumps are widely used in different industries, such as petroleum, chemistry, metallurgy, mine, power generation, urban construction and agricultural irrigation.
Pacific pump belongs to Pacific Group whose headquarters is in Shanghai. It has two big factories, one in Shanghai and one in Wenzhou in Zhe jiang province. Our company covers 67, 000 square meters and we have more than 1000 employees, including more than 30 senior and intermediate professional technicians. We own more than 300 sets of advanced production and inspection equipment to manufacture products of various categories and specifications. Our company is a member of China Pump Industry Association and National Pump United Distribution Association and also a supplier of CNPC and SINOPEC. We have attained Fire Fighting License issued by Shanghai Fire Fighting Bureau. Our products have been approved by Shanghai Quality Inspection Center according to the standards for Mechanical and Electrical Products. Our company has passed the evaluation of ISO9001: 2000 and has the CE certificate. It has been successively awarded honors such as national, provincial and municipal New Product Prize, and Creditable Quality Enterprise.
Our company has powerful technical capabilities, advanced production and inspection equipment, scientific management method, stable and reliable product quality and perfect after-sales service. Our products are sold well in 20 provinces and cities throughout China and many other foreign countries, such as Middle East countries, Southeast Asian countries, European countries, South American countires, and North American countries. Our main products are sold best in Europe and Southeast Asia. They are well accepted by customers because of high quality, good after-sales service and competitive price. The exporting amount reached USD8.5 million in 2007.
"Not to be the largest, but to be the best, taking science and technology as priority, devoted ourselves to the work" is our tenet. We sincerely hope to cooperate with new and old customers from all over the world to gain mutual benefits.
