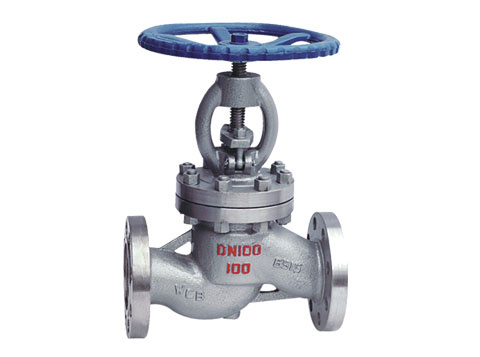

High pressure Cast steel flanged globe valve, stop valve
*Flanged globe valve is used in petroleum, chemical, pharmaceutical, fertilizer, power industry and other working conditions of the pipe which nominal pressure is between 1.6~16MPa, working temperature is between-29~550 degree to cut off or connected to pipeline medium.
Driven method is manual, gear transmission, electrical, pneumatic and so on
DN | L | D | D1 | D2 | b-f | Z-φ d | φ |
15 | 130±2 | φ80 | φ55 | φ40 | 12-2 | 4-φ12 | φ73 |
20 | 150±2 | φ90 | φ65 | φ50 | 14-2 | 4-φ12 | φ73 |
25 | 160±2 | φ100 | φ75 | φ60 | 14-2 | 4-φ12 | φ96 |
32 | 180±2 | φ120 | φ90 | φ70 | 16-2 | 4-φ14 | φ96 |
40 | 200±2 | φ130 | φ100 | φ80 | 16-3 | 4-φ14 | φ120 |
50 | 230±2 | φ140 | φ110 | φ90 | 16-3 | 4-φ14 | φ130 |
65 | 290±2 | φ160 | φ130 | φ110 | 16-3 | 4-φ14 | φ158 |
80 | 310±3 | φ185 | φ150 | φ125 | 18-3 | 4-φ18 | φ220 |
100 | 350±3 | φ205 | φ170 | φ145 | 18-3 | 8-φ18 | φ240 |
125 | 400±3 | φ235 | φ200 | φ175 | 20-3 | 8-φ18 | φ300 |
150 | 480±2 | φ260 | φ225 | φ200 | 20-3 | 8-φ23 | φ320 |
200 | 600±4 | φ315 | φ280 | φ255 | 22-3 | 8-φ18 | φ400 |
QC:
1) Checking the raw material after they arrived the factory
2) Checking the swatches after cutting by mould
3) Checking all the details while the production line operated
4) Checking the goods after thae are finished
5) Checking all the goods after they are packed
6) Seaworthy packing¼? Single valve is packed with foam plastic bag.Put sponge in each floor, 1.1*1.1*0.78m exported plywood case; One 20'GP can in bule loaded on 24pcs plywood cases more or less.
To make a suitable solution for the project, we need following information:
* design standard
* connection standard
* Size
* Body material
* Trim(Material for inside parts)
* Connection type
* Medium
* Temperature
* Ambient temperature range,corrosion considerations
* Operation type, application description
* Painting color
* Label content
* For OEM & ODM, we need your authorization letter.
