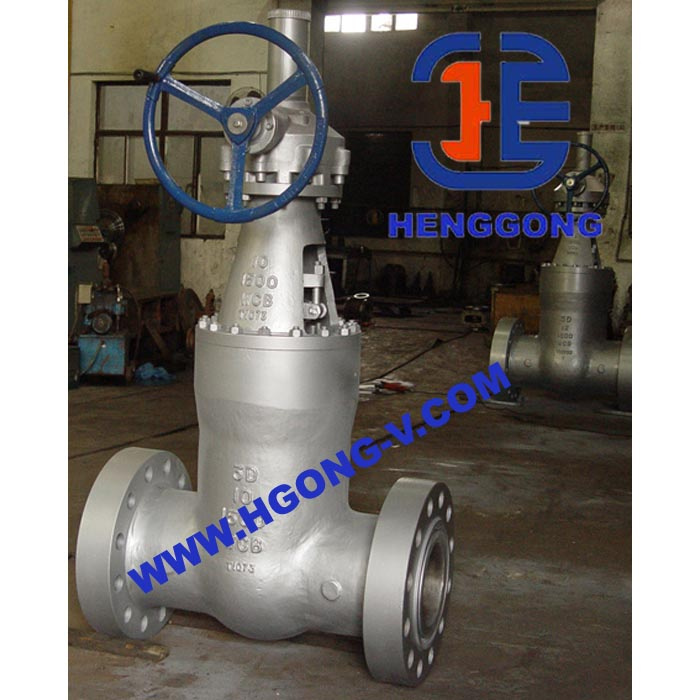

High Pressure Flange Ends Power Station Gate Valve

High Pressure Flange Ends Power Station Gate Valve
Price: US $ 20000/Piece
Trade Terms: FOB,CIF
Min Order: 1/Piece
Pay Type: L/C,T/T

Product Description
Specifications
1. 1500Lb~3500Lb
2. Suitable temperature: -29C~590C
3. E101 standard
4. Butt-welding
Standards
1. Design and manufacture: E101
2. Face-to-face dimension: E101
3. BW connection dimension: ASME 16.25
4. Inspection and test: E101
Main Parts Material:

1. Body: WCB, WC1, WC6, WC9
4. Disc:WCB, WC1, WC6, WC9
5. Bonnet:WCB, WC1, WC6, WC9
6. Stem:1Cr17Ni2, 12Cr1Mo1VA
7.Seat:15Cr1Mo1VA, 12Cr1Mo1VA
8.Yoke:WCB, WC1, WC6, WC9
9.Packing: Flexible Graphite
10. Seal Ring: Soft Steel, Flexible Graphite
11. Stem Nut: ZCuZn25A16Fe3Mn3

Design and manufacture
 BS5351 MSS SP-118
Scoket welded ends ANSI B16.11; JB/T1751
Butt-welded ends ANSI B16.25; JB/T12224
Screw ends ANSI B1.20.1; JB/T7306
Flanged ends ANSI B16.5; JB79
Test and inspection API 598; GB/T13927; JB/T9092

Prod Model: Z41Y
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Seal Pressure Gate Valve: Power Station Gate Valve
Connection Form: Flange
Seal Surface: Wedge Gate Valve
Thread Position Of Valve Rod: Outside Gate Valve
Application: Water Industrial Usage
Material: Wc6
Established in 1998, HengGong valve Group Co., Ltd., is located in Dongou Industrial Area in Oubei Town of Yongjia County, the cradleland of "China Pump and Valve", which enjoys favorable geographical location and convenient transportation. Presently, our company is covering an area of 3000 square meters, and owns 10 senior engineers, 20 technicians and more than 150 staff. The company has strong technical capabilities and high-quality personnel teams.

Our company owns advanced manufacturing technologies, testing equipments. Moreover, our products have passed the ISO9001 Quality System Certification and Pressure Equipment Direction EC Certification. From design to delivery, in each procedure, products are controlled strictly in accordance with ISO9001(CQC) and the quality of products produced by our company is all insured by People's Insurance Company of China.

The company is specialized in production of a series of products such as knife style gate valves, various types of metal hard sealed ball valves, PTFE soft sealed ball valves, high temperature and pressure wrought steel ball valves and eccentric semispherical valves, three way valves(T-pattern, Y-pattern and L-pattern), API valves, forged steel valves, butterfly valve, globe valves, check valves and more, which are designed and manufactured according to international standards like GB, ANSI/API, JIS, DIN and etc. The main body material of produced valves.

Includes: WCB, WC1, WC6, WC9, CF8, CF8M, CF3, CF3M, 12CrMoV, 15Cr1Mo1V, LCB, LF and so on. The nominal diameter vary from 10mm to 1000mm and from 1/2" to 24". Operating pressure vary from 10MPa to 160MPa and 150Lb to 2500Lb. There are many driving modes including manual drive, helical wheel drive, electric drive, pneumatic power, hydraulic power, combined drive by electricity and liquid. All sorts of non-standard valves can be designed and produced in accordance with customers' request.
