Product Details:

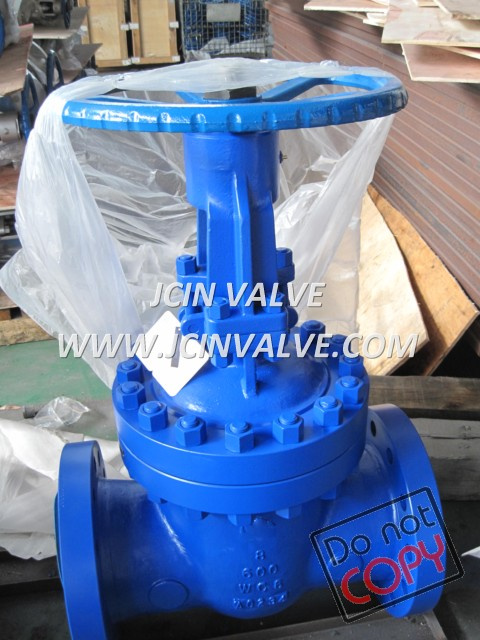

Gate Valve is used when the need exist for a device that allows an interruption or cut off the flow of a fluid. It is not recommendable to use Gate Valves for flow modulation as the high velocity of the through may result in erosive damage to the wedge and seats when the valve is partially opened. Under normal operating conditions, the valve should remain either fully open or fully closed. Gate Valve is widely used for the medium of water, steam, air, oil, petroleum and petroleum products, nonaggressive fluids.
Applicable Standard
Design Standard: API 600
Face to Face: ASME B16.10
End Flange: ANSI B16.5, ANSI B16.47
Butt welding Ends: ANSI B16.25
Inspection and Test: API 598
Design Features
Standard port design
OS&Y, outside and screw
Bolted bonnet, back seal structure
Flexible wedge, fully guided
Thread or welded seat
Extended stem design for low temperature
Flanged or butt-welding Ends
|
Size: |
2" ~40 " |
|
Rating: |
ANSI 150lb ~ 2500lb |
|
Body Materials: |
Carbon Steel, Stainless Steel, Alloy Steel, Duplex Steel |
|
Operation: |
Hand wheel, Gear, Electric, Pneumatic |
|
|
Please contact us for other sizes, pressures and materials. |
