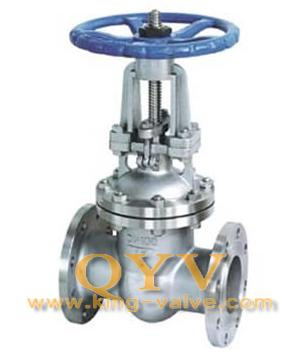

High pressure Gate valveThe design and manufacture of high-pressure valve is in accordance with ANSI B16.34 E101, GB/T 12224, the valve has a beautiful shape, compact structure, reliable sealing. Valve for the Class 900-Class4500 various tubes on the road.
High-pressure self-sealing valve has the following advantages:
1) Self-sealing high-pressure valve allows the structure of the valve body, valve cover tight junction structure, the provincial Public Works save cost, safe and reliable.
2) valve pressure in the valve cover seal, the use of the modular structure to achieve linear sealed its seals at the same time the use of austenitic stainless steel, anti-cavitation, extended life, thereby ensuring that the valve seal under high-pressure differential did not leak.
3) valve in the 2500 pounds and above level, the body cavity sealing contact with the surfacing of stainless steel lining Department to avoid the valve sealing region under high-pressure differential erosion by soft drinks appear Ma leakage point, thus to ensure a safety valve, long-term operation.
High-pressure self-sealing valve
Product Sort: Gate valve>>High pressure Gate valve
Pressure: 150LB-2500LB
Size: DN15-DN2000
Design Std: API, DIN, GB, JIS, BS
Product Material: ASTM A351 CF8, CF8M, CF3, CF3M, wcb
Stainless steel high pressure gate valve
Product Sort: Gate valve>>High pressure Gate valve
Pressure: 150LB-2500LB
Size: DN15-DN3000
Design Std: API, DIN, BS, GB, JIS, EEMUA
Product Material: ASTM A351 CF8, CF8M, CF3, CF3M,
High-pressure flange steel gate valve
Product Sort: Gate valve>>High pressure Gate valve
Pressure: 150LB-2500LB
Size: DN15-DN3000
Design Std: API, DIN, BS, GB, JIS, EEMUA
Product Material: A105 WCA, WCB, WCC, LCB, LCC, WC6, WC9, C5, C12, CF8, CF8M, CF3M, CF8C, CK20, CN7M, CD4MCU, CK3MCuN, Cu5MCuC, CN3MN, M35-1, MONEL400, MONEL500, CY40, CW6M
Shanghai Qiuyi Valve Co., Ltd. is a specialized company devoted into manufacture and sales of valves, the company have tow manufactory, one situates in A area 2175, zhennan Road, China, the other situates in No. 9 zhuangyuan road, Dajia industrial park, ou-bei town, Wenzhou, Zhejiang, China. Including machine workshop, assemble workshop, synthetic finished and half-finished warehouse.
The company has a modernized staffs of tech research and product development, ISO, API6D, CE certificated. And now the company has the capability of manufacturing big series of high temperature and high tech pressure power station ball valve, gate vall, globe valve, check valve, butterfly valve and valve parts, including flange and ball. Diameter of valves varie from DN15 to DN1800, working pressure varie from PN1.0Mpa to 42Mpa, and working temperature from -196 celcius degree to +570 celcius degree; The main body adopts WCB, WC6, WC9, Cr5Mo, 20Crmo, 12Crmov, 15Crmov, CF3m, CF8m; The actuator type includes manul type, spur gear, electric type, pneumatic type, hydraulic type; Manufacturing adopts advanced domestic and foreign standards such as GB, API, JIS, DIN, BS, NF and ANSI. The company possesses full precise casting equipments, integrated physical and chemical gauges, experimentation equipments and test methods, as well CAD design capability, which ensure products always in high quality.
