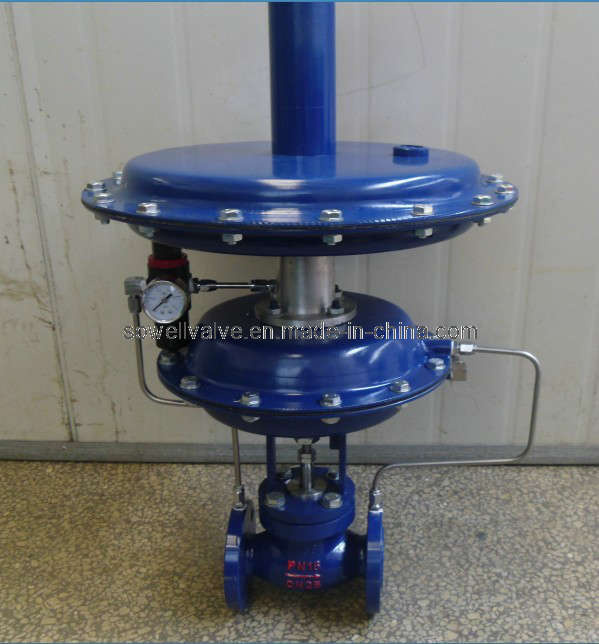

High-pressure single-seated control valve is a top-guide valve, the compact valve body, having a S-shape floe passage that features low pressure loss, allows a large flow capacity and wide rangeability. The valve plug is highly vibration-resistant as it is held by a top guide section which has a large sliding area, the seat leakage performance complies with the ANSI B16.104 standard. Adopts the top guided unbalanced structure, featured by high strength, heavy load, S type flow channel, low pressure drop loss, high flow coefficient, wide adjustable range, high flow characteristic precision, etc. Featured by tight shut-off, this kind of control valve is suitable for applications with relatively low differential pressure. It is suitable for controlling medium flow or pressure.
Applications:
Offers fine control for liquids, oils, gases and steam
Suitable for high pressure, high temperature & high pressure drop applications
Suitable for fluids like Oxygen, Chlorine, Thermic fluid, Hydrocarbon and Sea water
Specifications:
Size - ½ " (15 mm) to 16" (400 mm)
Rating - ANSI 150 # to 2500 #
And other standards available on request
Shanghai ThinkTank Process Management Co., Ltd. is the sole production and R&D institute of Taiwan STONE Company in Mainland China. ThinkTank entered Chinese market in 2002 and moved from Hangzhou to Shanghai headquarter in 2012. Based on over 30 years experience in researching and manufacturing automatic instruments, brining in overseas advanced technology and combining domestic users real working situation, ThinkTank is specialized in producing new typed self-regulating valves, control valves and various kinds of automatic instruments. ThinkTank's business includes engineering projects such as electricity, metallurgy, petrochemical processing, light industry and building materials, municipal water service and natural gas.
Enterprise history
1985.08 Taiwan STONE company was established in Taipei city.
1990.02 Sales network covered Southeast Asia.
2002.06 Branch office was fund in Hangzhou, Zhejiang, handling all business in China
2012.10 Mainland head office was moved to Pudong, Shanghai
Shanghai ThinkTank Process Management Co., Ltd. Has a professional team works for control valves design and engineering application. ThinkTank develops a series of hi-tech products after absorbing overseas advanced technology and innovating.
*New self-regulating, micro pressure, differential pressure, flow, temperature control valve
*New pneumatic (electric) linear actuator (low dB, high pressure) control valve
*Pneumatic (electric) rotary actuator (O/V ball, butterfly) control valve
*Pneumatic (electric) special corrosion resisting control valve
Shanghai ThinkTank Process Management Co., Ltd sticks to the policy of "client oriented, quality comes first, and faith is root". Depending on many years experience on engineering application in various industries, ThinkTank provide clients with good, reliable full service, focusing on maximizing the rate of return on investment for clients.
