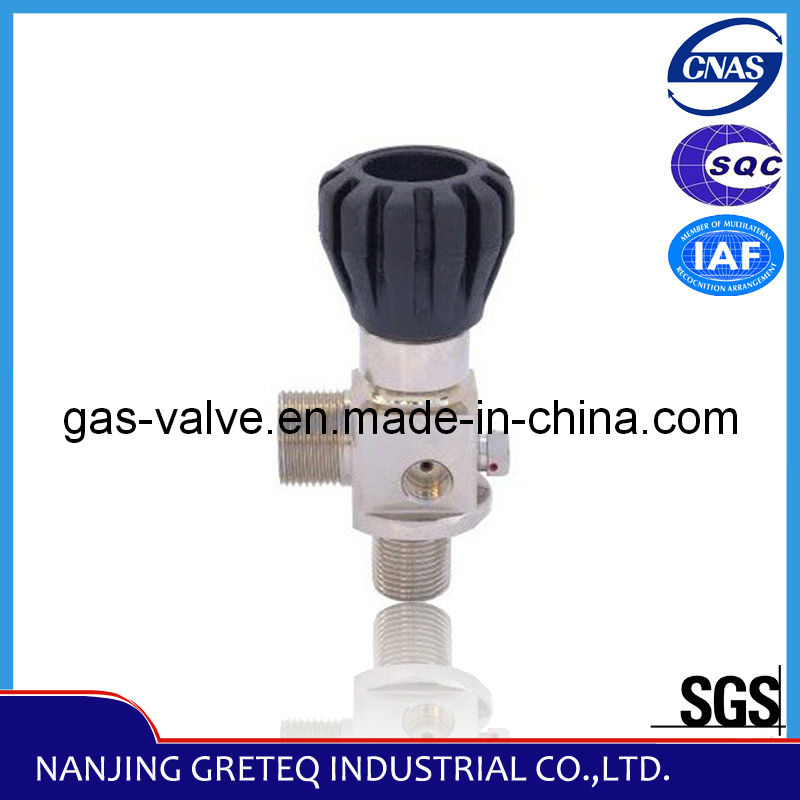

High Pressure TH10-11 Escape Appliance Valve in China

High Pressure TH10-11 Escape Appliance Valve in China
Price: US $ 19-27/Piece
Trade Terms: FOB,CFR,CIF
Min Order: 200/Piece
Pay Type: L/C,T/T,D/P
High Pressure TH10-11 Escape Appliance Valve in China

1: Specifications
1)Suitable Medium: Air,
2)Working Pressure: 21Mpa
3)Diameter: 3
4)Joint: M22*1.5, M18*1.5
5)Safety Device: 29~33MPa
6)Suitable Medium: Air,
7)Working Pressure: 21Mpa
8)Diameter: 3
9)Outlet thread: M22*1.5,
10)Joint thread to cylinder: M18*1.5
11)Safety Device: 29~33MPa

2: Packaging & Delivery
Packaging Details: One PC/carton
Delivery Detail: Within 15days

3: Quality certificate
1)SQC certificate for quality management system, has complied with the requirements of GB/T 19001-2000 idt ISO 9001: 2000
2)Manufacture License of Special equipment in People's Republic of China TSF210024-2012
NO. Type No.  Product Name Suitable
medium
PN
(Mpa)
DN
(mm)
Outlet
thread(mm)
Jiont thread to
cylinder (mm)
Temp/pressure
of safety device ( Mpa)
1 QF-H30 High Pressre SCBA Cylinder  Valve Air 30 2 G5/8 M18 x 1.5 39-45
2 QF-H30-1 High Pressre SCBA Cylinder  Valve Air 30 2 G5/8 M18 x 1.5 39-45
3 QF-H30-2 High Pressre SCBA Cylinder  Valve Air 30 2 G5/8 M18 x 1.5 39-45
4 QF-H30A High Pressre SCBA Cylinder  Valve(with gage) Air 30 2 G5/8 M18 x 1.5 39-45
5 QF-H30A-1 High Pressre SCBA Cylinder  Valve(with gage) Air 30 2 G5/8 M18 x 1.5 39-45
6 QF-H30B High Pressre SCBA Cylinder  Valve(self-lock proof  with gage) Air 30 3 G5/8,M22 x 1.5 M18 x 1.5 39-45
7 QF-H30B-1    High Pressre SCBA Cylinder  Valve(self-lock proof  with gage) Air 30 3 G5/8,M22 x 1.5 M18 x 1.5 39-45
8 QF-H30B-2 High Pressre SCBA Cylinder  Valve(self-lock proof  with gage) Air 30 3 G5/8,M22 x 1.5 M18 x 1.5 39-45
9 QF-H30C High Pressre SCBA Cylinder  Valve(self-lock proof  with gage) Air 30 3 G5/8,M22 x 1.5 M18 x 1.5 39-45
10 QF-H30D High Pressre SCBA Cylinder  Valve Air 30 3 G5/8,M22 x 1.5 M18 x 1.5 39-45
11 QF-H30E High Pressre SCBA Cylinder  Valve                            Air 30 3 M16 x 1.5 M16 x 1.5 /
12 QF-H30E-1 High Pressre SCBA Cylinder  Valve Air 30 3 W21.8 x 1/14 M18 x 1.5 /
13 QF-H30E-2 High Pressre SCBA Cylinder  Valve Air 30 3 G5/8 M18 x 1.5 /
14 QF-H30G High Pressre SCBA Cylinder  Valve Air 30 3 M16 x 1.5 M18 x 1.5 39-45
15 TH10-11 High Pressure Escape Apparatus Reducing Valve Air 21 3 M22 x 1.5 M18 x 1.5 29-33
16 TH10-2 High Pressure Escape Apparatus Reducing Valve Air 21    M10*1  M22*1.5 29-33
17 QSF-2 Scuba Diving Valve for cylinder Air 20 2.5 CGA850 G3/4,3/4"-14 NPSM 29-33

Prod Model: TH10-11
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Standard Or Nonstandard: Standard
Structure: Shutoff
Pressure: High Pressure
Power: Manual
Material: Brass Hpb59-1 Plate Ni
Temperature Of Media: Normal Temperature
Port Size: Outlet M22*1.5, Inlet M18*1.5
Delivery Time: Within 15 Days
Loading Port: Shanghai Port
We Nanjing Greteq Industrial Co., Ltd have a long history in China. Now we have two mainly products: Ductile iron pipe/fittings and gas cylinder valve/gas equipment.

In ductile iron pipe/fitting department we use the lost-foam casting process and resin bonded sand process and make production and inspection strict according to ISO2531, BSEN545, BSEN598 and GB/T13295 standard. It annually produces 200000 tons of ductile iron pipe and 15000 tons pipe fitting The diameter are from 80-2600. We have a owned ductile iron pipe factory and several cooperative iron pipe and fitting factory, So we can meet your big quantity order and supply all diameter size ductile ion pipe and fitting to you in short times. Our goods are only for export and had succeeded exported to America, Europe, Africa, Oceania, Southeast Asia and the Middle East.

In gas cylinder valve/gas equipment department. The mainly products are including high and middle pressure oxygen/acetylene/CO2/H2/N2/Ar/Cl/Freon cylinder valve, CGA cylinder valve, CNG/LNG cylinder valve, cryogenic valvepipe shutoff valve and pressure reducer used for all kindly of industries, SCBA cylinder valve and so on. Those products are well-known in domestic market and exported in many countries.

We will 'Survival by Quality, Development by Credit' and looking for your inquiry.
