Air source treatment(pressure regulator, air source treatment
unit, FRL, pneumatic components) series
Specifications1.Air source treatment
2.Media:Pressure air
3.One year guarantee
4.Auto drain Air source treatment
5.Has FESTO type

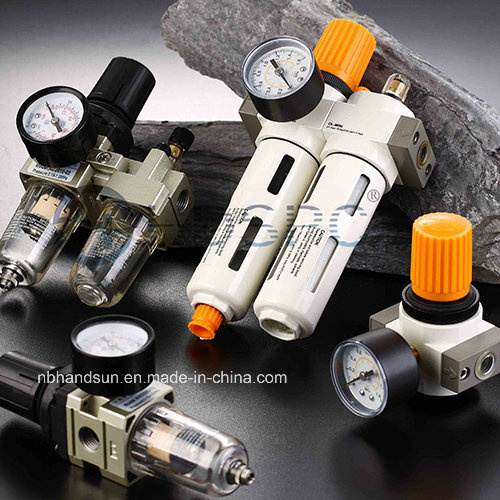

Air source treatment
pneumatic air source treatment unit
FESTO style
| Media | Compressed air |
| Adjustable pressure range | 0.05~0.85Mpa |
| Proof pressure | 1.6Mpa |
| Filtration rate | 40μm , 5μm |
| Ambient and fluid temperature | 0~60°C |
| Assembly position | Vertical ±5° |
| Material of body | Zinc die-casting |
| Material of bowl | Poly carbonate |
| Material of guard | Aluminum alloy |
| Material of filter element | Plastic or brass |
| Sealing parts | NBR |
| Recommended lubrication oil | Turbine No.1 oil (ISO VG32) |
Made up of air source treatment, regulator, lubricator
It's used with the compressor, CNC machine , foot machine .
The air must be treated by this part to make the air to be
cleaning when you are using the solenoid valve , cylinder
Material of body:Aluminum alloy
Material of bowl:Poly carbonate
Material of guard: FAC2000: FESTO STYLE
Material of filter element:Plastic or brass
Recommended lubrication oil:Turbine No.1 oil (ISO VG32)
