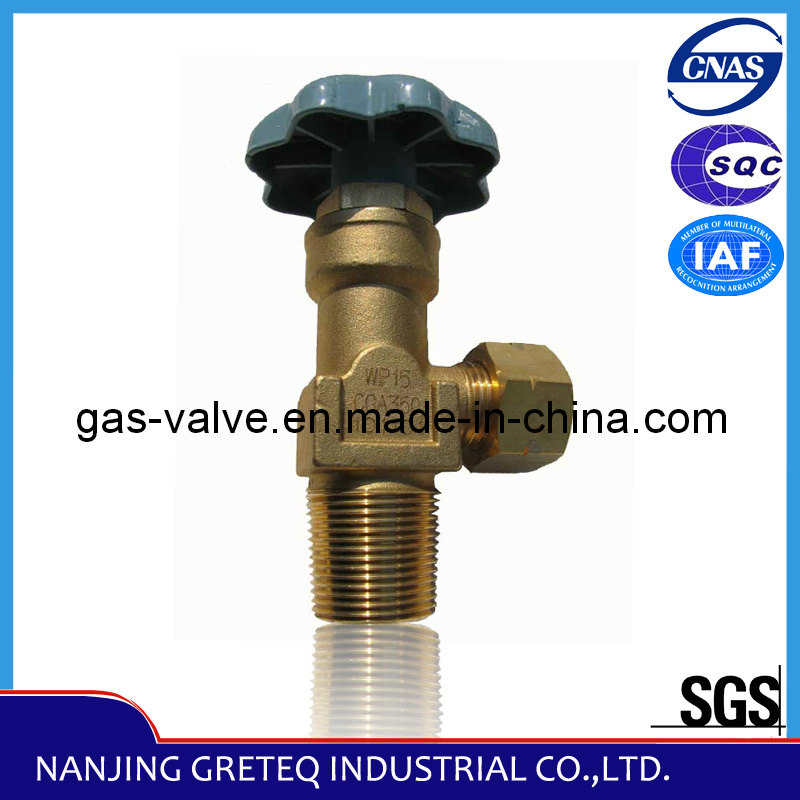

High Quality CGA350 CO2 Cylinder Valve
Specifications:
1)Suitable Medium: H2, O2, N2
2)Working Pressure: 15Mpa
3)Nominal diameter: DN4mm
4)Outlet thread: CGA350,
5) Inlet thread (thread to cylinder): GB8335PZ27.8
6)Safety device: 21± 1.5Mpa
Packaging & Delivery:
Packaging Details: 25 sets/carton
Delivery Detail: Within 15 days
Quality certificate:
SQC certificate for quality management system, has complied with the requirements of GB/T 19001-2000 idt ISO 9001: 2000,
Manufacture License of Special equipment in People's Republic of China TSF210024-2012
NO. |
Type No. |
Produce Name |
suitable Medium |
PN
(Mpa) |
DN
(mm) |
Outlet thread(mm) |
Jiont Thread to cylinder
(mm) |
Temp./Pressure
of safety device |
1 |
CGA200 |
Brass neddle type cylinder valve for C2H2 |
C2H2(acetylene) |
3 |
3 |
CGA200 |
3/8-18-NGT |
100deg±5deg |
2 |
CGA300(QF-70) |
Brass neddle type cylinder valve for C2H2 |
C2H2(acetylene) |
3 |
4 |
.825-14NGO-RH |
3/4-14-NGT |
|
3 |
CGA320 |
Brass flapper type cylinder valve for CO2 |
CO2 |
15 |
4 |
CGA320 |
3/4-14-NGT |
21±1.5 |
4 |
CGA326 |
Brass flapper type cylinder valve for N2O |
N2O |
15 |
4 |
CGA326 |
GB8335 PZ27.8 |
21±1.5 |
5 |
CGA350 |
Brass coupling type cylinder valve for CO2 |
CO2 |
15 |
7 |
CGA350 |
3/4-14-NGT |
21±1.5 |
6 |
CGA510(QF-72) |
Brass coupling type cylinder valve for C2H2 |
C2H2(acetylene) |
3 |
4 |
Female Thread CGA510 |
1-11 1/2 -NGT |
|
7 |
CGA510-1(QF-71) |
Brass flapper type cylinder valve for C2H2 |
C2H2(acetylene) |
3 |
4 |
Female Thread885-14NG0-LH |
3/4-14-NGT |
|
8 |
CGA520 |
Brass neddle type cylinder valve for C2H2 |
C2H2(acetylene) |
3 |
3 |
CGA520 |
3/8-18-NGT |
100deg±5deg |
9 |
CGA540 |
Brass flapper type cylinder valve for O2(oxygen) |
O2,N2,Air |
15 |
4 |
CGA540 |
3/4-14-NGT |
21±1.5 |
10 |
CGA555 |
Brass flapper type cylinder valve for N2 |
N2,O2,Air |
15 |
4 |
CGA555 |
GB8335 PZ27.8 |
21±1.5 |
11 |
CGA580 |
Brass flapper type cylinder valve for H2 |
He,Ne,Ar,Kr,Xe |
15 |
4 |
Female Thread CGA580 |
1-11 1/2 -NGT |
21±1.5 |
12 |
CGA590 |
Brass flapper type cylinder valve for O2(oxygen) |
O2,N2,Air |
15 |
3 |
Female Thread CGA590 |
3/4-14-NGT |
|
13 |
CGA870A |
Cylinder valve for O2(oxygen) |
O2 |
15 |
1.5 |
7 clip2-4.7 fixed mpin |
3/4-16-UNF |
steelcylinder21-23.2 Aluminum cylinder22.9-25.5 73deg±3deg |
14 |
CGA910 |
Cylinder valve for N20 |
N20 |
15 |
2.5 |
7 clip2-4.7 fixed mpin |
3/4-14-NGT |
|
15 |
CGA670 |
Brass neddle type cylinder valve for mixed gas |
mixed gas(Cl2,etc) |
2 |
7 |
Male thread CGA670 |
3/4-14-NGT |
|
We Nanjing Greteq Industrial Co., Ltd have a long history in China. Now we have two mainly products: Ductile iron pipe/fittings and gas cylinder valve/gas equipment.
In ductile iron pipe/fitting department we use the lost-foam casting process and resin bonded sand process and make production and inspection strict according to ISO2531, BSEN545, BSEN598 and GB/T13295 standard. It annually produces 200000 tons of ductile iron pipe and 15000 tons pipe fitting The diameter are from 80-2600. We have a owned ductile iron pipe factory and several cooperative iron pipe and fitting factory, So we can meet your big quantity order and supply all diameter size ductile ion pipe and fitting to you in short times. Our goods are only for export and had succeeded exported to America, Europe, Africa, Oceania, Southeast Asia and the Middle East.
In gas cylinder valve/gas equipment department. The mainly products are including high and middle pressure oxygen/acetylene/CO2/H2/N2/Ar/Cl/Freon cylinder valve, CGA cylinder valve, CNG/LNG cylinder valve, cryogenic valvepipe shutoff valve and pressure reducer used for all kindly of industries, SCBA cylinder valve and so on. Those products are well-known in domestic market and exported in many countries.
We will 'Survival by Quality, Development by Credit' and looking for your inquiry.
