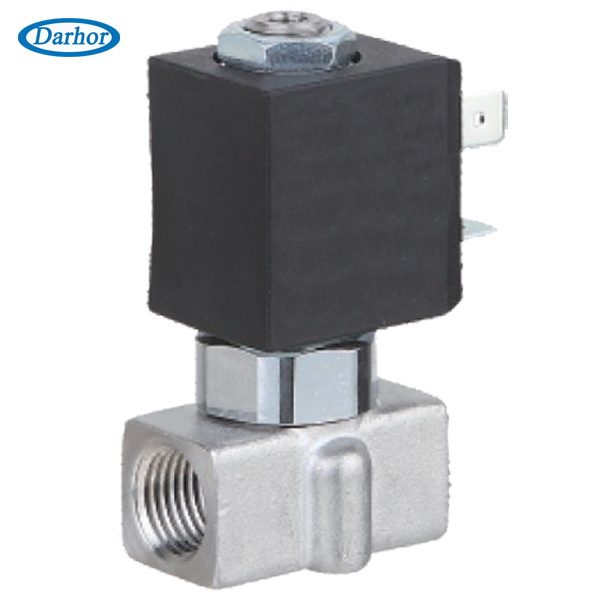

Miniature Valve DHSM31-normally closed
Characteristic: 1. Direct acting miniature construction at low power consumption
2. Compact design to save the space
3. Applied to low pressure system, open from 0 bar
Medium: Air, Water, Steam, Oil, etc
Temperature: NBR Seal: 14F to 176F, -10 to 80
EPDM Seal: 14F to 250F, -10 to 120
VITON Seal: 14F to 300F, -10 to 150
PTFE Seal: -4F to 350F, -20 to 180
Pressure: DHSM31: 0 ~ 16 bar
Port Size: 1/8", 1/4", 3/8"
Port Thread: BSPP, BSPT, NPT, FLANGE
Orifice (mm): 1.6, 2.0, 2.5, 3.0, 3.5, 4.0, 5.0
Voltage: DC - 12V, 24V
AC - 24V, 120V, 240V/60HZ; 110V, 220V/50HZ
Tolerance: +/- 10%
Coils: S91B, 17VA (AC), 10W (DC), IP65, 100%ED
Special coils: Latching coil. DC 6 ~ 12 V on request
Material: Body - Brass or stainless steel
Seal -VITON, NBR, EPDM,
Armature Tube - Stainless Steel 304
Plunger - Stainless Steel 430F
Stop -SS430F
Springs - SS 304
Shading Rings - Stainless Steel 304
|
Valve Body |
Port Size |
Orifice |
Cv |
Min Pressure(bar) |
Max Pressure(bar) |
Coil |
|
AC(22VA) |
DC(17W) |
|
DHSM3101X X X X |
1/8″ |
1.6 |
0.11 |
0 |
16 |
16 |
S91B |
|
DHSM3103X X X X |
1/8″ |
2.5 |
0.18 |
0 |
12 |
12 |
S91B |
|
DHSM3104X X X X |
1/8″ |
3 |
0.3 |
0 |
10 |
10 |
S91B |
|
DHSM3103X X X X |
1/4″ |
2.5 |
0.18 |
0 |
12 |
12 |
S91B |
|
DHSM3104X X X X |
1/4″ |
3 |
0.3 |
0 |
12 |
12 |
S91B |
|
DHSM3105X X X X |
1/4″ |
3.5 |
0.34 |
0 |
10 |
10 |
S91B |
|
DHSM3106X X X X |
1/4″ |
4 |
0.5 |
0 |
9 |
9 |
S91B |
|
DHSM3107X X X X |
1/4″ |
5 |
0.61 |
0 |
6 |
6 |
S91B |
|
DHSM3105X X X X |
3/8″ |
4 |
0.5 |
0 |
6 |
6 |
S91B |
|
DHSM3106X X X X |
3/8″ |
4.5 |
0.61 |
0 |
4 |
4 |
S91B |
|
DHSM3107X X X X |
3/8″ |
5 |
0.71 |
0 |
3 |
3 |
S91B |
|
DHSM3105X X X X |
3/8″ |
6 |
0.8 |
0 |
3 |
3 |
S91B |
|
DHSM3106X X X X |
3/8″ |
8 |
1.24 |
0 |
1 |
1 |
S91B |
|
DHSM3107X X X X |
1/2″ |
10 |
1.72 |
0 |
1 |
1 |
S91B |
Our company supplies different kinds of products. High quality and reasonable price. We stick to the principle of "quality first, service first, continuous improvement and innovation to meet the customers" for the management and "zero defect, zero complaints" as the quality objective. To perfect our service, we provide the products with good quality at the reasonable price.
