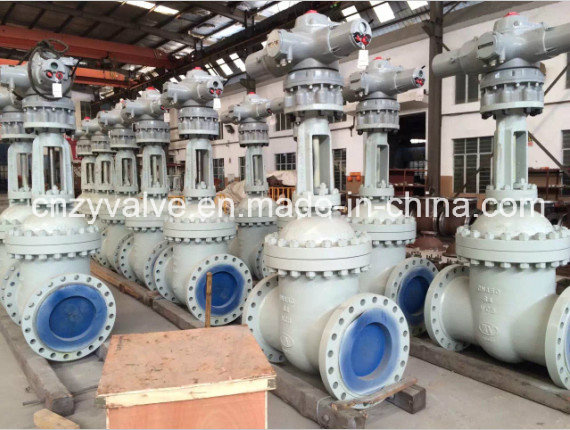

High-quality high pressure electric gate vavle from china manufacture
Standards Compliance:
Design & Manufactured to API 600, ASME B16.34 or DIN3202
P.T Ratings to ASME B16.34
Face to Face dimensions to ASME B16.10
Flanged Ends to ASME B16.5, ASME B16.47
Butt-weld Ends to ASME B16.25
Valves Marking to MSS SP-25
Inspect & Tested to API 598
Sizes Ranges from 1 1/2" thru 60"
Pressure Ratings from Class 150 to Class 1500, PN16 to PN260
Structured in Bolted Cover, Outside Screw and York, Optional Non-rising Stem
Ends Connections in Flanged R.F or RTJ, Butt-welded and Grooved
Body Materials available in Carbon Steel A216 WCB, WCC, Low Carbon Steel LCB, LCC, Alloy Steel A217 WC6, WC9, Stainless Steel A351 CF3, CF8, CF3M, CF8M, Duplex & Super Duplex Steel A890 GR. 4A, GR. 5A, Special Materials in Monel, Alu. Bronze C95800, 95600 etc.
Trim Materials available in 13%Cr, F11, F22, SS304, SS304L, SS316, SS316L and other specials
Actuations can be equipped with Handwheel, Gear Devices, Electric / Pneumatic or Hydraulic Actuators
Optional Bypass system, Live Loading Packing & O-ring Seal available upon request.
| Part Names | Part Materials |
| Body | WCB | LCB | WC6 | CF8 | CF8M | CF3 | CF3M | C83600/C95800 |
| Bonnet | WCB | LCB | WC6 | CF8 | CF8M | CF3 | CF3M | C83600/C95800 |
| Disc/Ball/Wedge | WCB | LCB | WC6 | CF8 | CF8M | CF3 | CF3M | C83600/C95800 |
| Stem | F6a | F304 | F6a | F304 | F316 | F304L | F316L | C83600/C95800 |
| Seat/Seat Ring | 13%Cr | SS304 | 13%Cr | SS304 | SS316 | SS304L | SS316L | C83600/C95800 |
| Packing | Graphite/PTFE |
| Gasket | SS304+Graphite/SS304+Graphite |
| Bolts/Nuts | B7/2H | L7/4 | B16/4 | B8/8 | B8M/8M | B8/8 | B8M/8M | B8M/8M |
| Suitable Medium | W.O.G etc. | HNO3, CH3OOH etc. | Sea Water etc. |
| Suitable Temperature | -29~425 °C | -46~340 °C | -46~340 °C | -196~427 °C | -196~427 °C | -196~427 °C | -196~427 °C | -29~220 °C |
China zhongya valve Co., Ltd. is a collection research and development, manufacturing, sales and integrated high-tech enterprises. The company is located in NO. 3511 Yongqiang Avenue Longwan District Wenzhou city Zhejiang China...The company introduces advanced technology from abroad, the modern scale production, and equips Germany processing center, Taiwan CNC machine, super precision vertical lathe, automatic painting line and special equipment, machining center, CNC machine tools, special molding, slinging cleaning, passivation treatment, ultrasonic cleaning equipment and a variety of valve pressure testing equipments. As well as equipped with photoelectric direct reading analyzer, thickness tester, radiographic, ultrasonic and liquid penetrant ect, non-destructive testing equipment to ensure that the company's products can be manufactured strictly in accordance with clients'requirements of related standard, to meet the different demands of them.
The company mainly in producing gate valve, globe valve, ball valve, check valve, butterfly valve, hydraulic control valve, supply and drainage water equipment and a variety of special non-standard special valves.
The company implements API (USA) and EN (European Union), ISO (international organization for standardization), BS (British), JIS (Japan) and GB (China) and other major advanced industrial countries and the latest standards of the national standard designing production. Valve body materials are used of carbon steel, alloy steel, chrome molybdenum steel, stainless steel, low-temperature steel, high-temperature steel, nickel base and cobalt base alloy and other materials, and materials specified by the user. Products are widely used in petroleum, chemical, natural gas, coal chemical industry, electric power, shipbuilding, pharmaceutical, paper making, beer industry, food, building, water supply, prevent pollution, and a large number of them are exported to the United States, Europe, Russia, Middle East, Japan, South Korea and southeast Asia and other regions.
