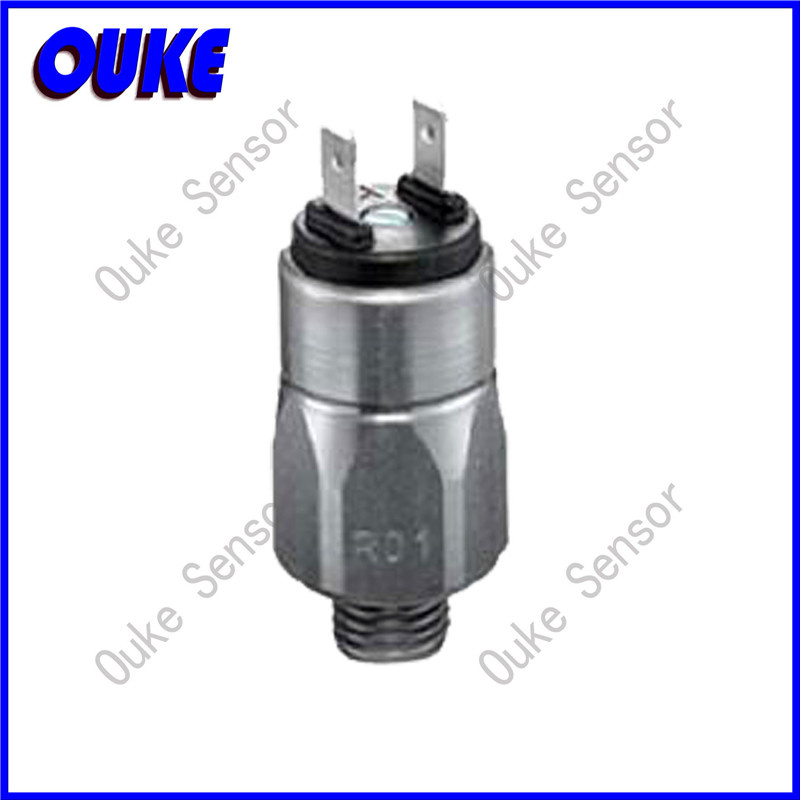

High Quality Industrial Adjustable Pressure Switch (PS1)
Price: |
US $ 15/Piece |
Trade Terms: |
FOB,CFR,CIF |
Min Order: |
10/Piece |
Pay Type: |
L/C,T/T,Western Union |
Specification The switch with built-in piston and contacts with precise spring. When the pressure changes the spring expansion follow with change. If the pressure arrives set point ,the presets mechanical structure will be triggered and send out switch signal.Features Set point can select from 0.3 to 200 bar Normally open or normally close .Used to measure water, oil and gas pressure.

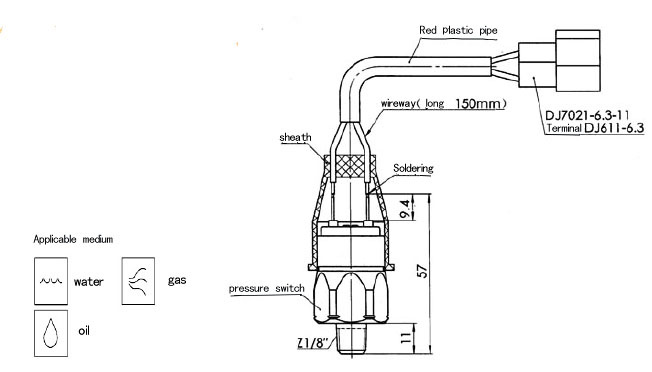

Have the characteristics of high precision, good stability, long working life and high reliabilityApplication The ingenious sensor is widely used in construction machinery ,steamer Valve remote control system. Ideal choice for high pressure device .Dimension

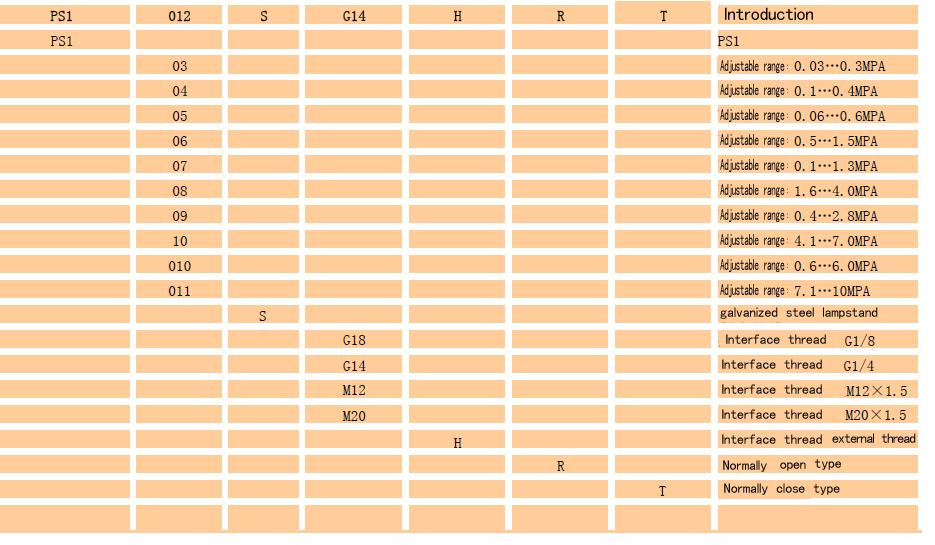

Selection table
Technical parameters |
Range |
Please check the selection able |
Contact capacity |
42V 3A |
Hysteresis |
15% setting point |
Error |
3% setting point |
Storage temperature |
-45^130ºC |
Working temperature |
-45^130ºC |
Protection grade |
IP65 |
Interface mode |
Terminal connection |
Pressure interface |
Stainless steel |
Electrical connection |
6.3×0.8 insert |
Working life |
1 million times |
Material |
Diaplragm |
NBR |
Shell |
Galvanized steel |
Prod Model: |
PS1 |
