High Quality Pneumatic Directional Valve
Specility: Aluminium pilot head and brass button are also optional.
Features:
*Precise dimensions and nice appearance
*Stable life cycle, guaranteed 18, 000, 000 times
*Various voltages are available
*Different colors are optional for body
*Body: Black anodization, hand anodization, natural anodization.
*Voltage: 220V/AC, 110V/AC, 24V/DC, 24V/AC, 12V/DC, special voltage is available.
*Port size: M5, 1/8", 1/4", 3/8", NPT, PT. G thread are all available.
NOTE: If lubricated air is used, it is recommended to use ISO VG32 or equivalent oils, and never interrupt lubricating.
| Model | 4V110-06 | 4V210-08 | 4V310-10 | 4V410-15 |
| Working Medium | 40 Micron filtered air |
| Motion Pattern | Inner ggide type |
| The Position | Two-position five-port |
| Effetive Area | 12mm 2 (CV=0.67) | 16mm 2 (CV=0.78) | 30mm 2 (CV=1.68) | 50mm 2 (CV=2.79) |
| Joint Pipe Bore | Inlet=outlet=exhaust=G1/8 | Inlet=outlet=exhaust=G1/4 | Inlet=outlet=exhaust=G1/4 | Inlet=outlet=exhaust=G1/2 |
| Glide | Have no usefor |
| Working-Pressure | 1.7-7.0kg/cm 2 (24-100psi) |
| Max. Pressure-Resistce | 10.5kg/cm2(150psi) |
| Operating Temperature | 5-50 |
| Voltage Range | ± 10% |
| Power Consumption | AC: 1.3VA DC: 1.5W |
| Insulation | F Class |
| Protect | IP65(DIN40050) |
| Wiring Form | Direct outlet or terminal type |
| Highest Action Frequency | 5 cycle per sencond |
| Shortest Excitation | 0.05 second |
| Weight | 120g | 200g | 310g | 590g |
FRIMA Industry is a professional manufacturer in offering variety of Pneumatic & hydraulic and package of automation products in China.
When choosing any of pneumatic or hydraulic products, you will find Frima is your best choice with several reasons like below:
1. Highest quality guarranteed by Frima
. With decades of experience about pneumatic or hydraulic parts producing, piston pump remanufacturing and repairing, Frima is accomplished in producing parts in high quality and low cost.
II. 70% of our employees are skillful technicians and mechanics. Frima believes, only excellent people can produce excellent products.
III. Frima has complete producing lines with advanced manufacture equipments from material to finished products.
Frima has a series advanced manufacture equipments like below:
CNC machine, NC machine, grinding machine, laser cutters, broaches, gear hobbing & shaping machine, lapping machine, honing machine, brass sintering furnace, ultra sonic cleaning, heat treatment equipment, coordinates measuring machines, projectors, pneumatic gauges, hardness testers, surface finishing testers, spherical testers, test benches, metallurgical, furnace atmospheric and spectrum analysers.
2. Convenient Logistic Solution.
Frima is located in Ningbo, which is a developed sea port and very closed to Shanghai Pudong Airport. So we can deliver our products to you promptly at low freight charge.
3. Competitive Quotation
Our goal is to consistently provide you with quality products, delivered when you need them and at the most affordable prices.
4. Prompt Service
Frima is managing to build a complete distributing network to provide the best service for our customers. All of your requests and responses will be treated seriously and fast.

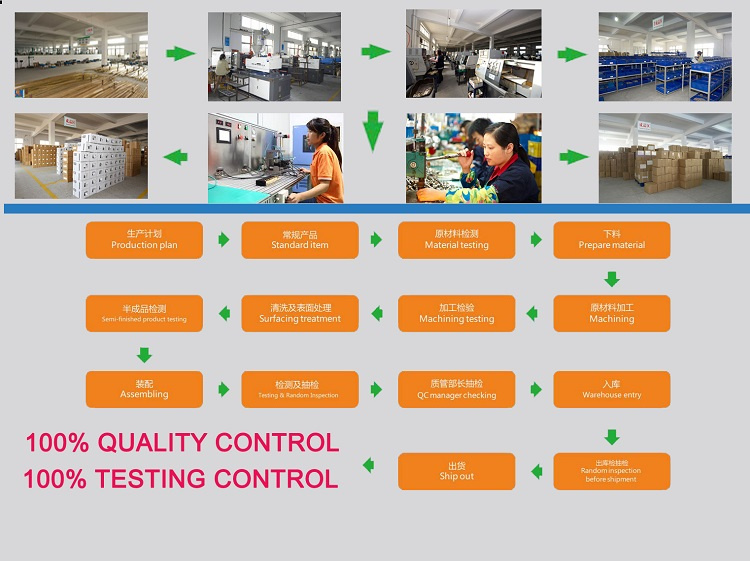

The production runs conforming to the rigorous ISO 9001/2000 requirements. The product range consists of solenoid valves, process valves, Air source treatment units etc, which are found in a variety of industrial applications such as machinery, metallurgy, food, textile and waste treatment.
