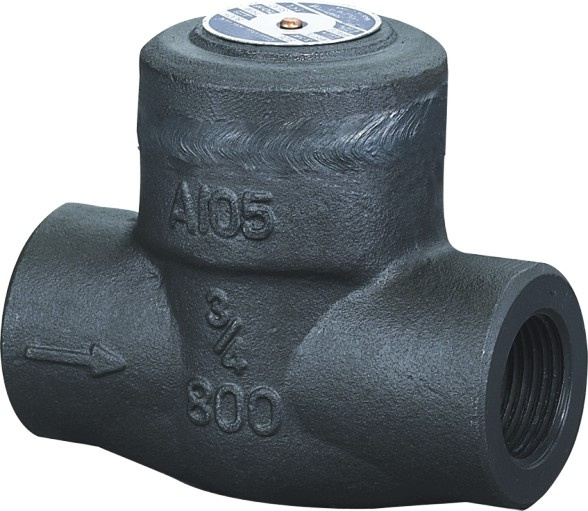

Specifications:
1.？？？？？Pressure seal bonnet ？
2.？？？？？Piston lift type, ？？
Swing type, Ball type are available ？
3.？？？？？Guided Disc in valve body provides accurate sealing alignment？
4.？？？？？Connection can be Socket weld ends: ASME B 16.11
？？Threaded ends: ANSI/ASME B 1.20.1
？？Butt-welded ends: ANSI B16.25
？？Flange ends: ASME B 16.5
5.？？？？？Forged Steel Check Valves conform to MSS-SP-118 and ASME B 16.34. Each valve is tested in accordance with API 598, and marked per MSS SP 25.
6.？？？？？Main materials: A105, LF2, F5, F22, F304, F316, F347, F321, F51, Monel, 20# Alloy
|
(NPS)Specification (CL2500 ) |
F.P |
3/8 |
1/2 |
3/4 |
1 |
1 1/4 |
1 1/2 |
2 |
|
(mm)Face to face |
L |
186 |
186 |
186 |
186 |
232 |
232 |
310 |
|
(mm)Height |
H |
233 |
233 |
233 |
233 |
256 |
256 |
330 |
|
(mm)Flow port dimension |
d |
9 |
11 |
14 |
19 |
25 |
28 |
35 |
|
(Kg)Weight |
10.6 |
10.8 |
11.2 |
11.5 |
25 |
22 |
39 |
