| Price: | US $ 0.1/Piece |
|---|---|
| Trade Terms: | FOB,CIF |
| Min Order: | 1/Piece |
| Pay Type: | L/C,T/T,Paypal,Money Gram,Western Union |
| 3V | 1 | 10 | 06 | NO | AC110V | |
| Model | Code | Valve Type | Port Size | Acting Type | Voltage | Connection |
| 3 port 2 Position | 100 Series | 10:Single Solenoid 20:Double Solenoid | M5:M5 06:1/8 | NO: Normal Open NC: Normal Close | DC12V DC24V AC24V AC110V AC220V AC380V | Blank: DIN Terminal I: Grommet |
| Note: Only Single Solenoid Type has NO and NC type | ||||||
| Model no | 4V110-M5 | 4V120-M5 | 4V130-M5 | 4V130E-M5 | 4V130P-M5 | 4V110-06 | 4V120-06 | 4V130C-06 | 4V130E-06 | 4V130P-06 | 3V110-M5 | 3V120-M5 | 3V110-06 | 3V120-06 |
| Position And Way Numbers | Two Position- Five Way | Three Position-Five Way | Two Position- Five Way | Three Position-Five Way | Two position Three way | |||||||||
| Effective Sectional Area | 10mm²(CV=0.56) | 7mm²(CV=0.4) | 12mm²(CV=0.67) | 9mm²(CV=0.5) | 10mm²(CV=0.56) | 12mm²(CV=0.67) | ||||||||
| Port Size | Inlet,Outlet,Exhausting M5x0.8 | Inlet,Outlet,Exhausting G1/8" | M5x0.8 | G1/8" | ||||||||||
| Model no(22mm) | 4V210-06 | 4V220-06 | 4V230C-06 | 4V230E-06 | 4V230P-06 | 4V210-08 | 4V220-08 | 4V230C-08 | 4V230E-08 | 4V230P-08 | 3V210-06 | 3V220-06 | 3V210-08 | 3V220-08 |
| Position And Way Numbers | Two Position-Five Way | Three Position-Five Way | Two Position-Five Way | Three Position-Five Way | Two position Three way | |||||||||
| Effective Sectional Area | 14mm²(CV=0.78) | 12mm²(CV=0.67) | 16mm²(CV=0.89) | 12mm²(CV=0.67) | 14mm²(CV=0.78) | 16mm²(CV=0.89) | ||||||||
| Port Size | Inlet,Outlet,Exhausting G1/8" | Inlet,Outlet,Exhausting G1/4" | G1/8" | G1/4" | ||||||||||
| Model no(27mm) | 4V310-08 | 4V320-08 | 4V330C-08 | 4V330E-08 | 4V330P-08 | 4V310-10 | 4V320-10 | 4V330C-10 | 4V330E-10 | 4V330P-10 | 3V310-08 | 3V320-08 | 3V310-10 | 3V3210-10 |
| Position And Way Numbers | Two Position-Five Way | Three Position-Five Way | Two Position-Five Way | Three Position-Five Way | Two Position-Five Way | |||||||||
| Effective Sectional Area | 25mm²(CV=1.4) | 18mm²(CV=1.00) | 30mm²(CV=1.68) | 18mm²(CV=1.00) | 25mm²(CV=1.4) | 30mm²(CV=1.68) | ||||||||
| Port Size | Inlet,Outlet,Exhausting G1/4" | Inlet,Outlet G3/8 Exhuasting Port G1/4 | G1/4" | Exhuast G1/4 In and outG3/8 | ||||||||||
| Model no(34mm) | 4V410-15 | 4V420-15 | 4V430C-15 | 4V430E-15 | 4V430P-15 | 3V410-15 | 3V420-15 | |||||||
| Position And Way Numbers | Two Position-Five Way | Three Position-Five Way | Two Position-Five Way | |||||||||||
| Effective Sectional Area | 50mm²(CV=2.79) | 30mm²(CV=1.68) | 50mm²(CV=2.79) | |||||||||||
| Port Size | Inlet,Outlet,Exhausting G1/2" | |||||||||||||
| Working Medium | Compressed 40 Micron Filtered Air | |||||||||||||
| Motion Pattern | Inner Pilot | |||||||||||||
| Working Pressure | 0.15~0.9MPa | |||||||||||||
| Max.Pressure Resistance | 1.2MPa | |||||||||||||
| Operating Temperature | 5~50ºC | |||||||||||||
| Voltage Tolerance | ±10% | |||||||||||||
| Power consumption | AC:4.5VA DC:3W | |||||||||||||
| Insulation&Protection Class | F Class IP65 | |||||||||||||
| Highest motion Frequency | 5 cycle/Sec | |||||||||||||
| Minimum Activate Time | 0.05 Sec | |||||||||||||

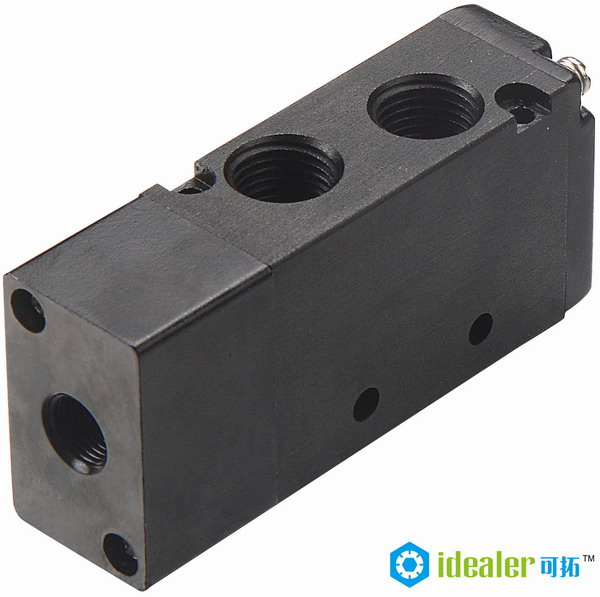

| Prod Model: | 3V1 |
|---|---|
| Markets: | North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Package: | Polybag/Paper Box/Carton |
| Working Medium: | 40 Micron Filtered Air |
| Air Outlet Diameter: | 1.0mm |
| Working Pressure: | 0-0.8MPa |
| Material Of Body: | Aluminum Alloy |
