1. Apply world famous compressor-COPELAND. Expansion valve-ALCO, the performance is higher and more stable.
2. Mcrocomputer LCD controller, assure free attendence.
3. Advanced de-frosting technology, completely remove frost, higher efficiency.
4. Constant temperature water output, automatic circulation heat preserving, water temperature keeps at certain level, convenient use.
5. Computer self-inspection and protection functions, low pollution operate.
6. Evaporator applies clear water membrane, high absorbing ability, high efficirncy, anti-corrosion.
7. Convenient installation, small occupation.

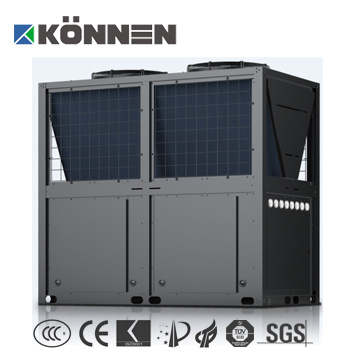

| Product: CEN New Air Source Heat Pump Commercial Type (circulation heating) |
| Model Parameter | CKFXRS-12 II | CKFXRS-19 II | CKFXRS-35 II | CKFXRS-70 II | CKFXRS-105 II |
| Rated Heating capacity (KW) | 12 | 19 | 35 | 75 | 105 |
| Rated outlet hot water quantity (L/H) | 258 | 408 | 752 | 1505 | 2257 |
| Outlet water rated temp | 55 |
| Outlet water max temp | 60 |
| electricity parameter | Rated Power (KW) | 2.9 | 4.75 | 9.2 | 17.8 | 26.8 |
| Rated Current (A) | 4.7 | 8.5 | 16.6 | 35.2 | 50.6 |
| Max. Power (KW) | 4.4 | 6.2 | 12.2 | 24.3 | 32.2 |
| Max. Current (A) | 8.19 | 10.47 | 22.71 | 48.2 | 61.5 |
| Power Supply | 380V~3N/50HZ |
| Refrigerant | R410a(R22/R134a/R407c) |
| Dimensions (mm) | 700*700*870 | 820*820*1060 | 1440*800*1400 | 2060*1100*2050 | 2510*1030*2130 |
| Pipe size (mm) | 2* DN20 | 2* DN25 | 2* DN32 | DN40 | DN50 |
| Circulation Water Flow (M3/h)--big than | 2.06 | 3.3 | 6 | 12 | 18 |
| Weight KG | 100 | 160 | 380 | 850 | 985 |
| Waterproof grade | IPX4 |
| Defend electric shock grade | GRADE 1 |
|
|
|
|
|
|
| Noise Db--low than | 52Db | 63Db | 65Db | 68Db | 70Db |
| Compressor | Daikin |
| Testing Conditions | Ambient Temperature | Water Inlet/Outlet Temperature |
| Dry Bulb Temp. | Wet Bulb Temp. | Water Inlet Temp. | Water Outlet Temp. |
| 20 | 15 | 15 | 55 |
Zhejiang Cen New Energy Technology Co., Ltd. Our company is still developing more styles of products. We take the technology as the core\regard the quality as life\treat the user as god. We dedicated to provide you with the highest cost-effective energy-saving products\high-quality engineering design and meticulous transformation of after-sales service!
Our main products as follows:
Air-source heat pump unit for household and commercial
Ground source heat pump unit
Water source heat pump unit
Combine cooling\heating and hot water heat pump unit
Swimming pool heat pump unit
Heat recovery of centre air-conditioner so on energy-saving products, our products passed prove ISO9001\CCC\CE certificate.
Product features: Reasonable structure\stable quality\reliable and nice.
We consistently insist on the sane business strategy. We don't demand the biggest, only best. Take the most serious attitude, do the most professional thing. Let us enhance friendship with large clients and sincere cooperation, create brilliance!
