High Temperature Stainless Steel Steam Pressure Reducing Valve
| Price: |
US $ 1/Piece |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T,Money Gram,Western Union |

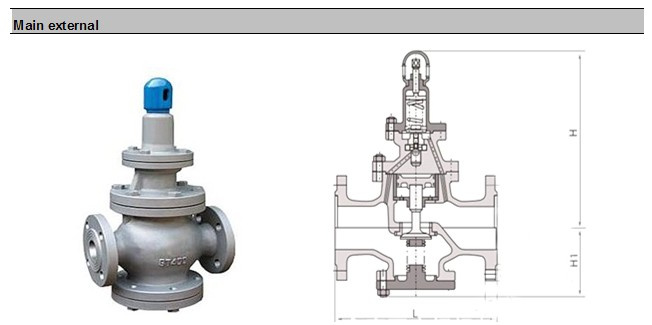

Steam Pressure Reducing ValveBrief introduction:Steam Pressure reducing valve series belongs to the pilot valve piston valve. From the main valve and pilot valve two parts. Mainly by the main valve seat, the main valve plate, piston, cylinder liner, springs and other parts. By adjusting the outlet pressure adjusting spring pressure setting, the use of outlet pressure sensing diaphragm, the drive piston through the guide opening and closing the valve adjust the main throttle valve flow area size of the parts to achieve the pressure regulator function.

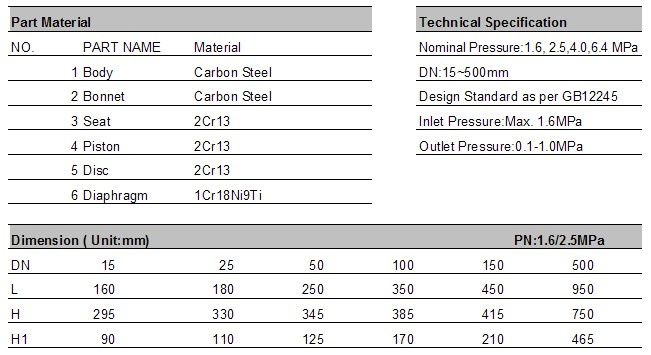

Technical Specification-Nominal diameter:15~500mm -Nominal pressure:1.6, 2.5,4.0,6.4 MPa
|
DN |
G |
L |
H |
Hl |
|
15 |
1/2" |
140 |
295 |
90 |
|
20 |
3-4" |
140 |
330 |
98 |
|
25 |
1" |
160 |
330 |
110 |
|
32 |
1-1/4" |
180 |
330 |
110 |
|
40 |
1-1/4" |
200 |
345 |
125 |
|
50 |
2" |
230 |
345 |
125 |
| Prod Model: |
Y43H |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Mid East,Eastern Asia,Western Europe |
| 150lbs~2500lbs,Pn16~Pn400: |
1/2inch~24inch;Dn15~Dn600 |
Shanghai Kangquan Valve Co., Ltd. is a professional valves manufacture, with a high-quality workforce of 218, 10 Senior Engineers, 25 MID-level technicians. Provided with two production bases, it covers an area of 15000 square meters with strong technical forces, well-equipped 90 kinds of machine tools and 2, 500 tons of valves output capacity annually.
Kangquan have accumulated a wealth of information and experience in this field and enjoy a high reputation in dealing with both domestic and overseas trading. In 1998, "green valve P&R&D Unit " cooperated with Shanghai University' S has been set up to development of green products successfully-soft seal epoxy coating gate valve, and has gained P&R&D engineering item Third Honors. Our products line includes various kinds of gate valves, globe valves, ball valves, check valves, cock valves, butterfly valves, etc. Always under the ISO 9001 quality assurance system, up to the international advanced standards of ANSI, API, JIS, DIN, BS and so on. Materials mainly include carbon steel, stainless steel, ductile iron and so on. With hand wheel, worm-gear actuator, pneumatic and electric actuator to be selected, widely used in the industries of petrochemical, natural gas, metallurgy, electric power, pharmaceutical, construction, etc...
With highly qualified professionals and first class service, Shanghai Kangquan Valve Co., Ltd. Has established a highly respected enterprise which has been relied on for years. And we will continuously offer customers the most accurate and high quality delivery service possible.
Excellent quality assurance is our sales purpose,
Competitive price is our sales policy,
On time product delivery and responsive service is our standard.
Shanghai Kangquan Valve Co., Ltd. Hopes to work together with you for a better future. Let' S work together building a mutually beneficial relationship that will last for years.
