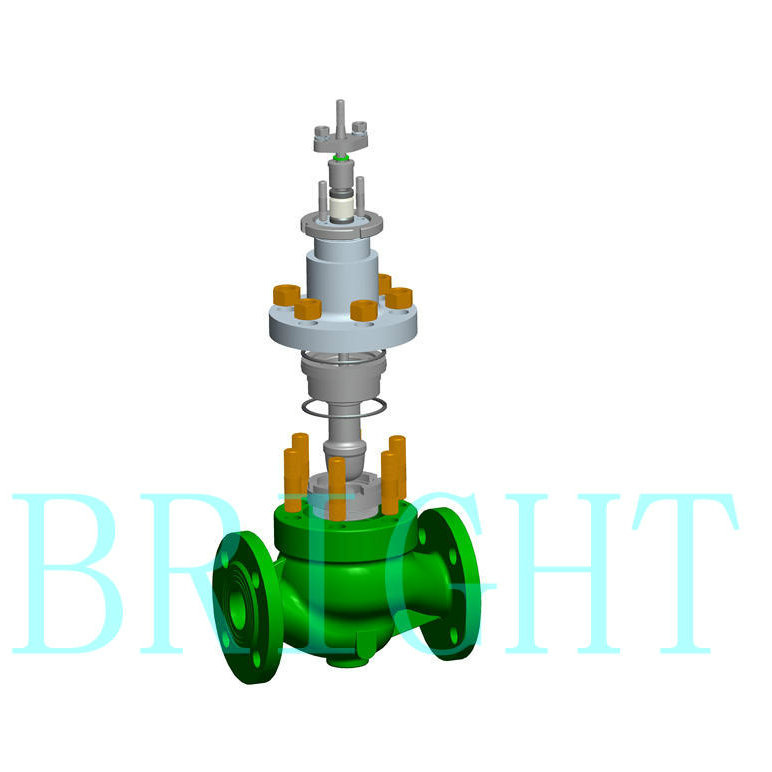

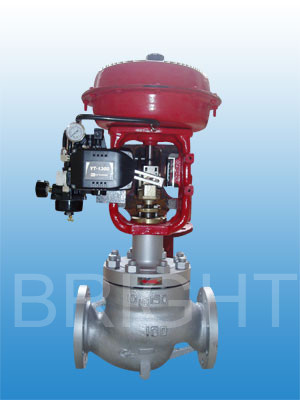

Hls/Hts Pneumatic Single Seat Globe Control Valve

Hls/Hts Pneumatic Single Seat Globe Control Valve
Price: US $ 200/Piece
Trade Terms: FOB,CFR,CIF
Min Order: 1/Piece
Pay Type: L/C,T/T,D/P,Paypal,Money Gram
1. Product  Introduction
   HLS/HTS Pneumatic Single Seat Globe Control Valve is applicable to chemical, petroleum, metallurgy, light indutry and other industries for the automatic control of liquid and gas in pipelines. It features small pressure drop, wide adjustable range and high accuracy of flow characteristic, small leakage, reliable packing seal and compact structure.
  Patent No. 2012301852068, 2012301852087, 201220257606X,

2012202575387


2. Main Specifications


Flow characteristics
HLS
Metal seat ring
For equal percentage characteristic (%CF) and linear characteristic (LCF), refer to Fig.1 and Fig. 3 of Catalogue for HLS/HTS Pneumatic Single Seat Globe Control Valve
Soft seat ring
For equal percentage characteristic (%CF)and linear characteristic (LCF), refer to Fig. 2 and Fig.4 of Catalogue for HLS/HTS Pneumatic Single Seat Globe Control Valve
HTS
Metal seat ring

High capacity

For equal percentage characteristic (%C) and linear characteristic (LC), refer to Fig. 4 of Catalogue for HLS/HTS Pneumatic Single Seat Globe Control Valve

Soft seat ring

For equal percentage characteristic (%T) and linear characteristic (LT), refer to Fig.4 of Catalogue for HLS/HTS Pneumatic Single Seat Globe Control Valve

Metal seat ring
High Accuracy
For equal percentage characteristic (%CF)and linear characteristic (LCF), refer to Fig.5 of Catalogue for HLS/HTS Pneumatic Single Seat Globe Control Valve

Soft seat ring

For equal percentage characteristic (%CF)and linear characteristic (LTF), refer to Fig.5 of Catalogue for HLS/HTS Pneumatic Single Seat Globe Control Valve

Adjustable range
HLS50:1(0.25Cv14),30:1( Cv0.16)
HTS50:1

Leakage
HLSHard sealing: Class IVSoft sealing: Class VI
HTSHard sealing: Class IVSoft sealing: Class VI


3.  Body Specifications
Nominal dia.mm202540506580
Inch3/411.522.53

Model
HLS    Δ



   Δ




HTS      Δ


   Δ


    Δ


    Δ


Nominal dia.mm100125150200250300
Inch45681012

Model
HTS    Δ


  Δ


    Δ


    Δ


    Δ


    Δ



Nominal pressure
PN1.6,4.0,6.4
ANSICL150,CL300,CL600

Connection
Flanged
Welded

Body type

Straight bore single casting ball valve

Gland type
Bolt clamp

Plug type
Single-seat plunger valve plug


Bonnet temp. range
(P)Normal-17+230ºC
I(EI)-45-17ºC,+230+566ºC
II(EII)-100~-45ºC
III(EIII)-196-100ºC

Note: 1.Δ refers to the specifcation range of valve.

4. Applicable Standard




Chinese Standard

American Standard

Quality assurance
ISO9001,TS2710J59ISO9001

Design and manufacture
GB12224-2005ASME B16.34

Flange standard
GB9112-9124,HG20592-2009ASME B16.5

Length of structure
GB12221-2005ASME B16.10
Inspection and test standardGB/T4213-2008API598


5. Temp. Range of Main Material for Body


Name

Material

Limit temperature

Name

Material

Processing

Temp. Range

Body
WCB-29~+425ºCPlugSS304+PTFE-20~+180ºC
CF8-196~+538ºC+STL-196~+538ºC
CF8M-196~+538ºCSS316+PTFE-20~+180ºC
CF3M-196~+538ºC+STL-196~+538ºC

Bonnet
WCB-29~+425ºCSS316L+PTFE-20~+180ºC
CF8-196~+538ºC+STL-196~+538ºC
CF8M-196~+538ºCSeatSS304+STL-196~+538ºC
CF3M-196~+538ºCSS316+STL-196~+538ºC

Packing
PTFE-20~+180ºCSS316L+STL-196~+538ºC
Prod Model: HLS/HTS
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Size: 20mm (3/4")-300mm(12")
Nominal Pressure: Pn.6MPa (Cl150) -Pn6.4MPa (Cl600)
Material: CS, S.S, Alloy Steel
