1. Product Introduction

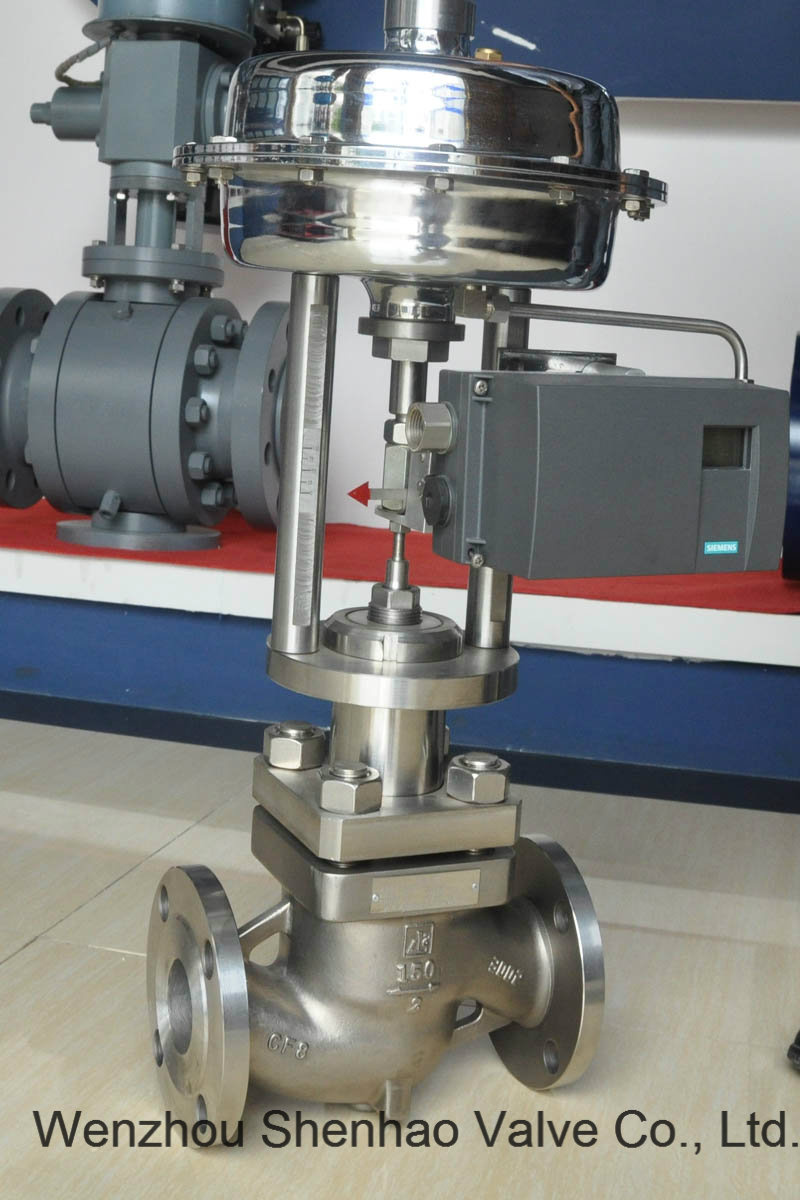

HLS/HTS Pneumatic Single Seat Globe Control Valve is applicable to chemical, petroleum, metallurgy, light indutry and other industries for the automatic control of liquid and gas in pipelines. It features small pressure drop, wide adjustable range and high accuracy of flow characteristic, small leakage, reliable packing seal and compact structure.
Patent No. 2012301852068, 2012301852087, 201220257606X,
2012202575387
2. Main Specifications1. Product Introduction
HLS/HTS Pneumatic Single Seat Globe Control Valve is applicable to chemical, petroleum, metallurgy, light indutry and other industries for the automatic control of liquid and gas in pipelines. It features small pressure drop, wide adjustable range and high accuracy of flow characteristic, small leakage, reliable packing seal and compact structure.
Patent No. 2012301852068, 2012301852087, 201220257606X,
2012202575387
Flow characteristics | HLS | Metal seat ring | For equal percentage characteristic (%CF) and linear characteristic (LCF), refer to Fig.1 and Fig. 3 of Catalogue for HLS/HTS Pneumatic Single Seat Globe Control Valve |
Soft seat ring | For equal percentage characteristic (%CF)and linear characteristic(LCF), refer to Fig. 2 and Fig.4 of Catalogue for HLS/HTS Pneumatic Single Seat Globe Control Valve |
HTS | Metal seat ring | High capacity | For equal percentage characteristic (%C) and linear characteristic (LC), refer to Fig. 4 ofCatalogue for HLS/HTS Pneumatic Single Seat Globe Control Valve |
Soft seat ring | For equal percentage characteristic (%T) and linear characteristic (LT), refer to Fig.4 ofCatalogue for HLS/HTS Pneumatic Single Seat Globe Control Valve |
Metal seat ring | High Accuracy | For equal percentage characteristic (%CF)and linear characteristic (LCF), refer to Fig.5of Catalogue for HLS/HTS Pneumatic Single Seat Globe Control Valve |
Soft seat ring | For equal percentage characteristic (%CF)and linear characteristic (LTF), refer to Fig.5of Catalogue for HLS/HTS Pneumatic Single Seat Globe Control Valve |
Adjustable range | HLS | 50:1(0.25≤Cv≤14),30:1( Cv≤0.16) |
HTS | 50:1 |
Leakage | HLS | Hard sealing: Class IV | Soft sealing: Class VI |
HTS | Hard sealing: Class IV | Soft sealing: Class VI |
3. Body Specifications
Nominal dia. | mm | 20 | 25 | 40 | 50 | 65 | 80 |
Inch | 3/4 | 1 | 1.5 | 2 | 2.5 | 3 |
Model | HLS | Δ
| Δ
|
|
|
|
|
HTS |
|
| Δ
| Δ
| Δ
| Δ
|
Nominal dia. | mm | 100 | 125 | 150 | 200 | 250 | 300 |
Inch | 4 | 5 | 6 | 8 | 10 | 12 |
Model | HTS | Δ
| Δ
| Δ
| Δ
| Δ
| Δ
|
Nominal pressure | PN | 1.6,4.0,6.4 |
ANSI | CL150,CL300,CL600 |
Connection | Flanged Welded |
Body type | Straight bore single casting ball valve |
Gland type | Bolt clamp |
Plug type | Single-seat plunger valve plug |
Bonnet temp. range | (P)Normal | -17~ +230ºC |
I(EI) | -45~ -17ºC,+230~ +566ºC |
II(EII) | -100~-45ºC |
III(EIII) | -196~ -100ºC |
Note: 1.Δ refers to the specifcation range of valve.
4. Applicable Standard
| Chinese Standard | American Standard |
Quality assurance | ISO9001,TS2710J59 | ISO9001 |
Design and manufacture | GB12224-2005 | ASME B16.34 |
Flange standard | GB9112-9124,HG20592-2009 | ASME B16.5 |
Length of structure | GB12221-2005 | ASME B16.10 |
Inspection and test standard | GB/T4213-2008 | API598 |
5. Temp. Range of Main Material for Body
Name | Material | Limit temperature | Name | Material | Processing | Temp. Range |
Body | WCB | -29~+425ºC | Plug | SS304 | +PTFE | -20~+180ºC |
CF8 | -196~+538ºC | +STL | -196~+538ºC |
CF8M | -196~+538ºC | SS316 | +PTFE | -20~+180ºC |
CF3M | -196~+538ºC | +STL | -196~+538ºC |
Bonnet | WCB | -29~+425ºC | SS316L | +PTFE | -20~+180ºC |
CF8 | -196~+538ºC | +STL | -196~+538ºC |
CF8M | -196~+538ºC | Seat | SS304 | +STL | -196~+538ºC |
CF3M | -196~+538ºC | SS316 | +STL | -196~+538ºC |
Packing | PTFE | -20~+180ºC | SS316L | +STL | -196~+538ºC |
