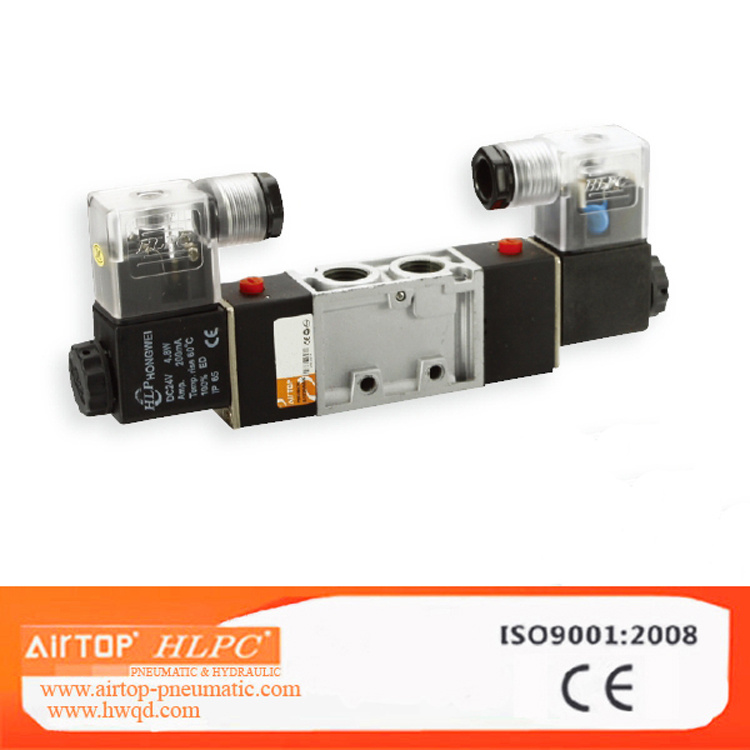

Hlv Series Pneumatic Solenoid Valve
| Price: |
US $ 1-100/Piece |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T |
Ordering Code:
HL - V - 52 - 2 - S - AC220V - W
HL: Hong Wei Brand;
V: Series Code V: Solenoid Valve A: Pneumatic Control Valve;
52: Position and Way Number 52: Two-position Five-way 53: Three-position Five-way 32: Two-position Three-way 22: Two-position Two-way;
2: Joint Pipe Bore 1: G1/8 2: G1/4 3: G3/8 4: G1/2;
S: Single-head Double-position D: Double-head Double-position C: Double-head Three-position Close Type E: Double-head Three-position Exhaust Type P: Double-head Three-position Pressure Type;
AC220V: Standard Voltage DC12V DC24V AC24V 50HZ/60HZ AC110V 50HZ/60HZ AC220V 50HZ/60HZ AC380V 50HZ/60HZ;
W: Wiring Form Blank: Standard Connector LD: Brown with Lighting Connector LD1: White with Lighting Connector W: Lead Wire Type;
Model: HLV522S HLV522D HLV532C(E/P) HLV523S HLV523D HLV533C(E/P) HLV524S HLV524D HLV534C(E/P) HLA522S HLA522D HLA532C(E/P) HLA523S HLA523D HLA533C(E/P) HLA524S HLA524D HLA534C(E/P);
The position counting: Two-position Five-way Three-position Five-way;
Effective Sectional Area: 14mm² 12mm² 25mm² 18mm² 50mm² 30mm² (CV=1.68);
Working Medium: 40 Micron Filtered Air;
Motion Pattern: Inner Guide Type;
Working Pressure: 0.15~0.8MPa;
Max. Pressure Resistance: 1.2MPa;
Operating Temperature: 5~50° ;
Voltage Range: ± 10%;
Power Consumption: AC: 4.5VA DC: 2.5W;
Insulation & Protection Class: F. IP65/F Class. IP65;
Wiring Form: Lead Wire or Connector type
Highest Action Frequency: 20 Cycle/Sec;
Shortest Excitation Time: 0.05Second.
| Prod Model: |
HLV |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Type: |
Pilot Operated |
| Application: |
Industrial Usage |
| Power Supply: |
AC or DC |
Ningbo AirTOP Pneumatic Hydraulic Co., Ltd.(AirTOP) specializes in manufacturing pneumatic and hydraulic components, including pneumatic cylinders, solenoid valves, directional valves, mechanical valves, FRL units, pneumatic fittings, PU tubes, air guns, power chuck, hydraulic cylinders, standard jaw etc.
Our factory - Hongwei Pneumatic & Hydraulic Kit Factory (HLPC) was established in 1988.Over twenty years' manufacturing experience in pneumatic and hydraulic field laid solid foundation for excellent quality.ISO9001:2008 Quality System and CE Certifications ensure every component to be precise, accurate and durable.
AirTOP has imported advanced CNC machines from Germany and Japan and we also have die-casting machines, injection machines, advanced computer testing machines, ultrasonic washing machines etc.Seals are from American Parker, Japan and Germany, pursing excellent quality and developing various products for global market.
Today, AirTOP has developed a complete sales network and after-sales services and has steady customer groups in the international market.AirTOP pneumatic products are favored especially by customers in Europe, North and South America, the Middle East and Southeast Asia.
"Quality Reliable, Credit First, Customers Uppermost" is AirTOP's persistent and permanent pursuit.AirTOP will continuously provide our customers with the highest quality/price rate products and the best service, supporting our agents grow in this competitive world with the most favorable terms and making our end-users satisfied and assured by using our products.AirTOP sincerely hopes that we can keep up with the times of the development paces of pneumatic industry and world automation, continuously pursuing excellent quality and developing new products for our customers in the world automation industry.
