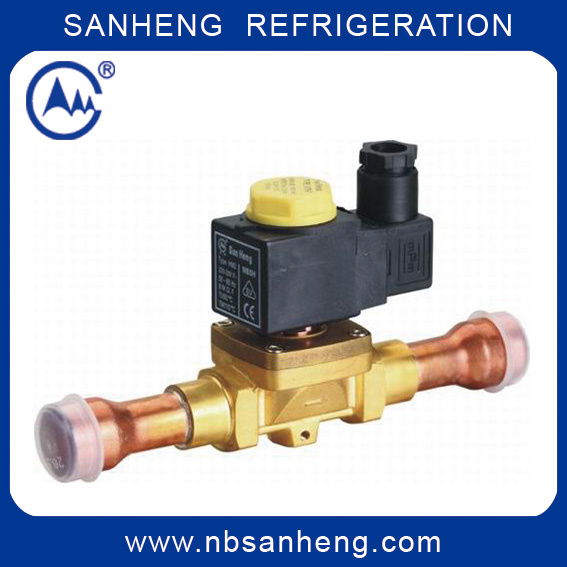

Hot Sale 12V Solenoid Valve for Air ConditionerProduct Introduction

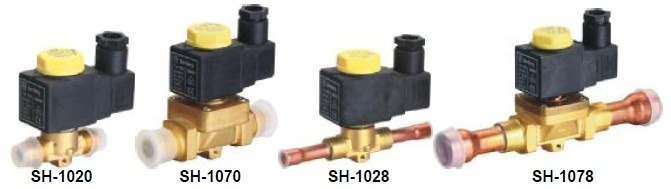

SHF series Solenoid Valve is designed based on SH series solenoid valve, which is used in liquid line, suction line and steam line of refrigeration system to control the refrigerant to pass or not, the valve is widely used in refrigeration compressor group, central air-conditioning, cold storage equipment and bus air-conditioning system.
Specification
Refrigerant R12, R22; R134A, R404, R407C, R410, R502
Media Temperature -30º C~+105º C
Service 100, 000 cyeles
Working Pressure 3.0Mpa
Solenoid Coil 12W
| Model | Operating
Principles | Port Size (mm) | Connection Size | Opening Pressure Differential(Bar) | Dimension
(mm) |
| SAE | ODF | Min. | Max. |
| | in. | mm | A. C. | D. C. | Length | Width | Height |
| SHF2-02 | Direct
Acting | 2.5 | 1/4" | | - | - | 0 | 21 | 19 | 58 | 24 | 84 |
| SHF2-02S | - | | 1/4" | - | 107 | 24 | 84 |
| SHF3-03 | 3 | 3/8" | | - | - | 58 | 24 | 84 |
| SHF3-03S | - | | 3/8" | - | 107 | 24 | 84 |
| SHF7-03 | Diaphragm
Pilot Operated | 7 | 3/8" | | - | - | 0.05 | 72 | 30 | 90 |
| SHF7-03S | - | | 3/8" | - | 118 | 30 | 90 |
| SHF7-04 | 1/2" | | - | - | 72 | 30 | 90 |
| SHF7-04S | - | | 1/2" | - | 108 | 30 | 90 |
| SHF8-03 | 8 | 3/8" | 10 | - | - | 17 | 85 | 45 | 97 |
| SHF8-03S | | | 3/8" | 10 | 125 | 45 | 97 |
| SHF10-04 | 10 | 1/2" | 12 | | | 85 | 45 | 97 |
| SHF10-04S | - | | 1/2" | 12 | 125 | 45 | 97 |
| SHF13-05 | 13 | 5/8" | 16 | | - | 89 | 45 | 97 |
| SHF13-05S | | | 5/8" | 16 | 150 | 45 | 97 |
| SHF16-06S | 16 | | | 3/4" | 19 | 185 | 60 | 120 |
| SHF19-07S | 19 | | | 7/8" | 22 | 190 | 60 | 120 |
Company Introduction:Ningbo Sanheng Refrigeration Control Co., Ltd is locates in Xikou Industrial Park, Fenghua, Ningbo City, Zhejiang Province, formerly known as Zhejiang Fenghua Sanshi Solenoid Valve Fantory, after decades of development, has formed a set of automatic control components of refrigeration independent research and development, production, sales and import & export trade in the integrated company.

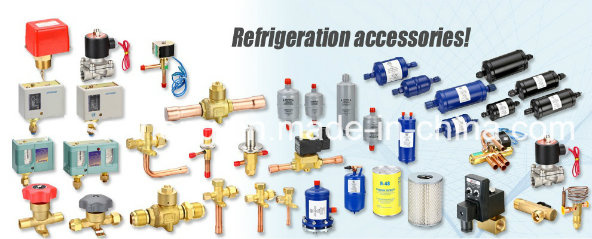

Ningbo Sanheng Refrigeration Control Co., Ltd. is located at Xikou Industrial Zone, Ningbo City, Zhejiang Province. It is specializes in developing and manufacturing of refrigeration unit, refrigerated air dryer, Refrigeration Parts, Air Conditioner Parts and Auto A/C Parts, like refrigeration solenoid valves, thermal expansion valves, manifold gauge set, filter drier, ball valve, many kinds of expansion valve for Auto A/C and so on.
After decades of development, we have a profeeional refrigeration technology team with wealth of practical experience, self-developed special-purpose welding lines and unique testing equipment and advanced injection technologies. Meanwhile, we focus on improving the quality and stability of product, keep on investing in the introduction of various high-tech equipment, now we have a complete set of production equipment, such as high-precision CNC lathes, Automated assembly lines and so on. They help us to strictly control product quality and stability. Our company has passed ISO9001-2000 certificate and CE certificate.
Sanheng Company relies on the "Sanheng"spirit, i. e. "Quality Eternal, Service Eternal, and Prestige Eternal". We believe that we will make great contribution to refrigeration industry.
