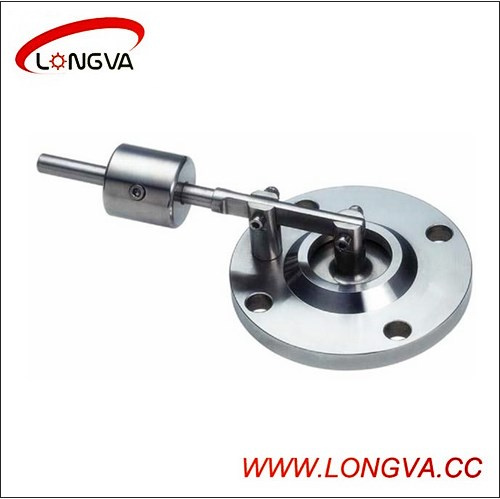

Name: Hotsale Food Grade Stainless Steel Anti-vacuum Valve
1. Material: SS304, SS316L
2. Normal pipe size: DN50-DN150
3. Connection: Flange
4. Standard: DIN, SMS, IDF, ISO
5. Working vacuum degree: 50-300mmHg
6. Working temperature: -10ºC to 80ºC
7. Breath-in capacity: 300m³/h
8. Design
The advantages of an integrated anti vacuum valve are lower initial costs, superior hygiene and smaller area required for seat valve. The size and setting of the anti vacuum valve is based on the tank design data, cleaning procedure and process requirements. The anti vacuum valve is produced in a sanitary and robust design.
9. Application:
The anti vacuum valve is used for minimizing the risk of implosion of tanks exposed to vacuum e. G. During emptying, cool rinsing after hot-cleaning (max. 85° ) or caustic cleaning in a CO2 atmosphere. The anti vacuum valve can be applied on any closed tank.
10. Benefits:
1) Valve seat design ensures operational reliability
2) Sensitive vacuum set points for precise operation
3) Fully cleanable with CIP system
