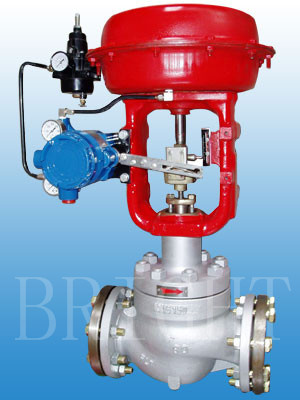

HPS/Hpc High Pressure Single Seat Globe Control Valve & Cage Type Control Valve
| Price: |
US $ 200/Piece |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T,D/P,Paypal,Money Gram |
1. Product Introduction
HPS/HPC High Pressure Single Seat Globe Control Valve & High Pressure Cage Type Control Valve are applicable to chemical, petroleum, metallurgy, light indutry and other industries for the automatic control of liquidand gas in pipelines. It features small pressure drop, wide adjustable range and high accuracy of flow characteristic, low leakage, reliable packing seal and compact structure.
Patent No. 2012301852068
,
2. Main Specifications
Flow characteristics | HPS/HPC | Metal seat |
Refer to Fig. 1 and Fig.2 of the Catalogue for High Pressure Single Seat Globe Control Valve & High Pressure Cage Type Control Valve for EQ% characteristic (%CF) and linear characteristic(LCF)
|
| Leakage | HPS/HPC | Hard seal: Class IV
|
Less than 0.01% of rated capacity |
| Adjustable range | HPS/HPC | 50:1 |
3. Body Specifications| Nominal Dia. | mm | 25 | 40 | 50 | 65 | 80 |
| inch | 1 | 1-1/2 | 2 | 2-1/2 | 3 |
Model | HPS | Δ | Δ | Δ | Δ | Δ |
| HPC | | Δ | Δ |
| Δ |
| Nominal Dia. | mm | 100 | 150 | 200 | | |
| inch | 4 | 5 | 8 | | |
| Model | HPS | | | | | |
| HPC | Δ | Δ | Δ | | |
Nominal Pressure | PN | 150,260,420 |
| ANSI | CL900,CL1500,CL2500 |
Connec. | Flanged
Welded(SW,BW) |
Body type |
Straight-way single seat globe valve |
Gland type | Bolt clamping |
| Plug type | HPS |
Single-seat plunger |
| HPC |
Pressure balance structure |
Bonnet temp. | Normal Temp.(P) | -17~ +230ºC |
| ExtensionI(EI) | -45~ -17ºC,+230~ +566ºC |
| ExtensionII(EII) | -100~ -45ºC |
| ExtensionIII(EIII) | -196~ -100ºC |
Note: 1.Δ refers to valve size range
2.The bonnet working temperature cannot exceed the allowed working temperature of various materials.
4. Applicable Standard
|
Chinese Standard |
American Standard |
Quality assurance | ISO9001,TS2710J59 | ISO9001 |
Design and manufacture | GB12224-2005 | ASME B16.34 |
Flange standard | GB9112-9124,HG20592-2009 | ASME B16.5 |
5. Temp. Range of Main Material for Body
| Name |
Material |
Temp. Limit |
Name | Material | Treatment |
Temp. Limit |
| Body | WCB | -40~+450ºC |
Plug | 304 | +PTFE | -20~+180ºC |
| CF8 | -60~+580ºC | +STL | -60~+580ºC |
| CF8M | -60~+580ºC | 316 | +PTFE | -20~+180ºC |
| CF3M | -60~+580ºC | +STL | -60~+580ºC |
| Bonnet | WCB | -40~+450ºC | 316L | +PTFE | -20~+180ºC |
| CF8 | -60~+580ºC | +STL | -60~+580ºC |
| CF8M | -60~+580ºC | Seat
Cage | 304 | +STL | -60~+580ºC |
| CF3M | -60~+580ºC | 316 | +STL | -60~+580ºC |
| packing | PTFE | -20~+180ºC | 316L | +STL | -60~+580ºC |
| Prod Model: |
HPS/HPC |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Nominal Diameter: |
25mm (1")-200mm(8") |
| Nominal Pressure: |
Pn15MPa (Cl900) -Pn42MPa (Cl2500) |
| Material: |
CS, S.S, Alloy Steel |
