All lab fume hood should be customized.

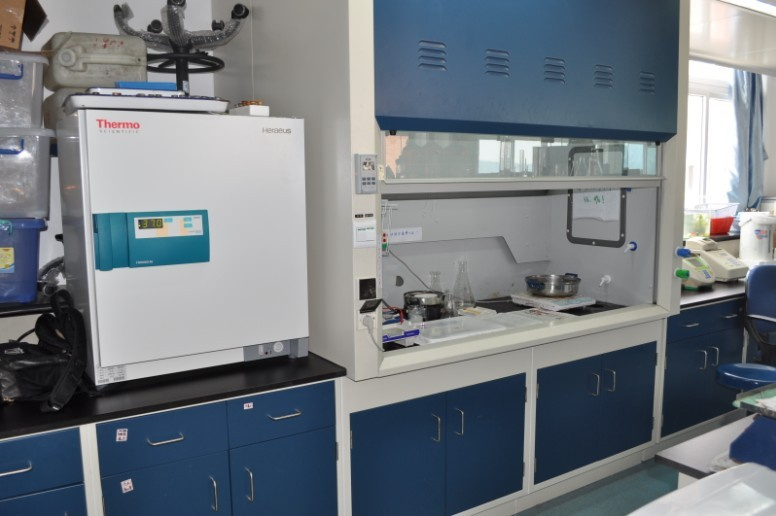

1. Fume Hood (fume cupboard & fume cabinet): Exterior materials: Quality 1.2mm cold-rolled steel construction cabinets finished in 0.5mm safety epoxy enamel perfect for resisting corrosion and heat.
2. Interior materials: All interior surface of fume hoods are made of chemical resistant plate, it was developed to have excellent chemical- resistance and anti high temperature.
3. Sash: The full view vertical raising sash is manufactured of laminated safety glass with the sash set into an extruded, low turbulence PVC track that delivers smooth operation and steady sash positioning.
4. Worktops: Equipped with phenolic resin, epoxy resin, stainless steel board or ceramics to meet your specific needs.
5. Baffles: Made up of three parts, which can make the exhaust controlled and take away.
6. Lighting: 30W lighting and switch, which can make the worktop to have the 450 LUX lighting standards.
7. Power: Multi-function power plug.
8. Lab fittings: Equipped remote control valve and cup sink.
9. Exhaust system: The exhaust system should be CAV/VAV system, the piping and fan system need to communication according to the architectural structure.
10. Exterior Dimensions: 1200/1500/1800*800/1000*2400mm
11. Air Volume: 1750m3/h (1500*800*2400mm)
Worktop |
16mm thick phenolic resin (black) countertop, most chemical resistant |
Cabinet body |
1.2mm thick cold-roll steel with 75μm epoxy resin coating |
Dimension
|
1200*800*2350mm |
1500*800*2350mm (or customized) |
1800*800*2350mm |
Visual windows |
Transparent tempered glass, explosion-proof |
Control panel |
Touch, intelligent control panel |
Handle |
Embedded aluminum alloy handle with epoxy coating |
|
Hinge |
DTC175° hinge |
Faucet |
Brass body with ceramic valve core |
Gas valve |
Solid brass body, high gloss epoxy powder coating |
Sink |
High grade pp, resistant to most chemicals and organic solvent |
Socket with USB |
Multi socket. double electric, international standard |
Guangdong Huilv Laboratory Equipment Scientific & Technological Co., Ltd. is a specialized manufacturer of modern lab furniture. We integrate consultation, production, installation, and after-sales service together.
We have attained ISO9001: 2000 and ISO14001: 2004 certifications. Our company mainly produces various kinds of laboratory furniture and devices.
Our company has been established for 10 years since 1999. We furnished high-quality products and excellent service based on newest design and modern production technology.
We have regarded the quality of products as the life of our company. At the same time, we have extended our sales network to other fields such as layout before sale, consultation and design, specialized installation, and regular feedback.
We focus on establishing a modern lab of safety, high-efficiency and personality for customers.
