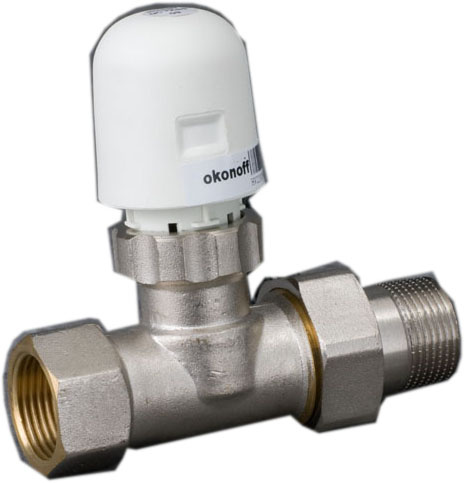

HVAC Motorized Valve (CHV320)

HVAC Motorized Valve (CHV320)
Price: US $ 23-25.14/Piece
Trade Terms: FOB,CFR,CIF
Min Order: 200/Piece
Pay Type: L/C,T/T,Western Union
CHV300 series of electrothermal valve are used to control the on/off of flux in water system, and also can be used as the on/off valve of fan coil in air-conditioning system, or as the flow control valve in radiator or floor heating system. It can be used together with room thermostat or other electrical switch.

Technical parameter:
Working Voltage: 24VAC± 10% or 230VAC± 10% 50/60Hz
Power Consumption: 4w (working voltage: 24VAC); 2w (working voltage: 230VAC)
Size: Dn15, Dn20
Single running time: About 4 minutes (off-on)
Nominal Pressure: 1600kpa
Connection Way: Pipe thread (screw thread g)
Working Journey: ≥ 3mm
Medium Temperature: 2~80º C
Environment Temperature: -5~50º C
Protection Grade: IP54
Safety Class: Ii(double insulation)
Connecting Line: 100cm
The material of valve body: Casting brass
The material of actuator: PC engineering plastic, fire-resistant
ModelSpecDimensionsKv (m³/h)
DN(mm)Inner screw thread(G)LH
2-wayCHV315151/2″55854
CHV320203/4″65906.3

Prod Model: CHV320
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Working Voltage: 24VAC± 10% or 230VAC± 10% 50/60Hz
Single Running Time: About 4 Minutes (off-on)
Nominal Pressure: 1600kpa
Medium Temperature: 2~80o C
