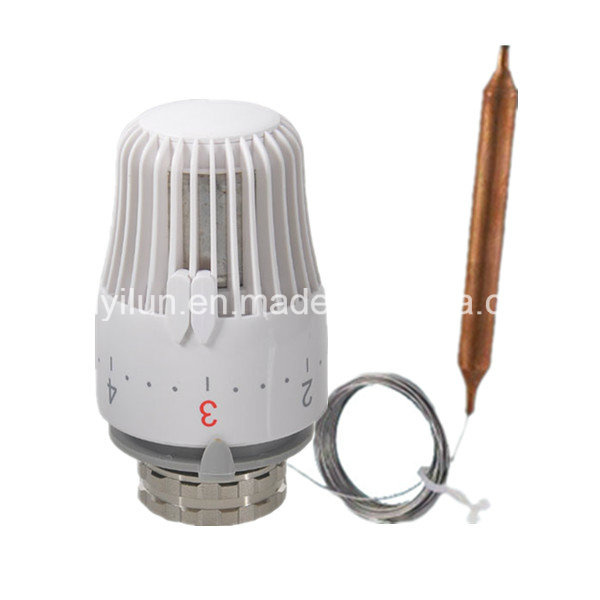

HVAC System Automatic Control Capillary Thermostat
Long range controller is used screw to joint on the control valve body; by adjust the controller to set the temperature range. This can keep the temperature to a certain point, in case to set at a wrong point, keeping flow rate to a steady range.
Temperature setting
For example, you can use it to control the return water of the floor heating system, temperature of the hot water tank and so on to reach your desired temperature. Two temperature range can be choosed: For room: 6ºC-28ºC ; For underfloor heating system: 30ºC-70ºC, 20ºC-60ºC
Temperature range is following:
For room:
Room temperature ºC: 6 12 16 20 24 28
Scale range : * 1 2 3 4 5
For underfloor heating system:
Room temperature ºC: 30 38 46 54 62 70
Scale range: * 1 2 3 4 5
Room temperature ºC: 20 28 36 44 52 60
Scale range: * 1 2 3 4 5
Main specifications
Max pressure:1.0Mpa
Max differential pressure:0.1Mpa
Size:1/2",3/4",1"
Connection size:M30X1.5
Tube length:2m
Control range:6ºC-28ºC,30ºC-70ºC,20ºC-60ºC
Working medium:Water
Max pressure:10bar
Stroke:3mm
Avonflow Baiyilun TRV Co., Ltd. (old name "Wenzhou Baiyilun Hardware Co., Ltd") specializes in the development and manufacture of heating and temperature control products. Baiyilun constant temperature control valves, used in pressure temperature regulator of city heating and hot water system, are equipped with body as automatic constant temperature control valve. This valve doesn't need exterior energy while automatically controlled by indoor temperature, which can not only save energy but also protect environment and give you a suitable indoor temperature.
Manufacture and test of Baiyilun constant temperature control valve of radiator is according to GB/T13927-92; EN215-1 standard and through the test of Beijing Construction Project Quality Testing Centre. Our company also has advanced and complete testing and inspecting instrument.
2 EN215 Standard Testing Bench, 8 automatic plastic injection machines, Over 10 years production experience on TRVs, 30 CNC machines, Over 40 exported Countries, Production Capicity around 3, 000, 000 pieces/year, Welcome you come to visit us and cooperate with us.
