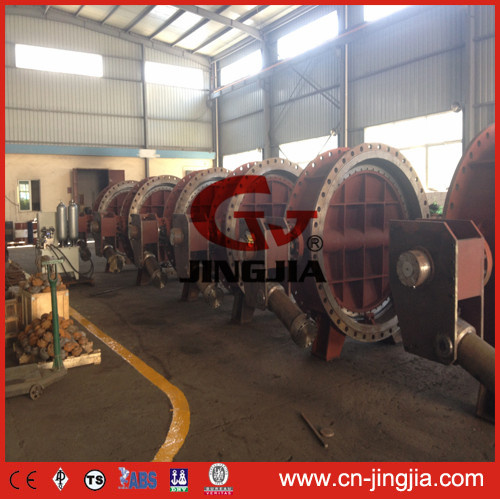

Hydraulic Control Butterfly Valve with Counter Weight & Hydraulic Station (HD743H)
Price: |
US $ 2900-21900/Piece |
Trade Terms: |
FOB,CFR,CIF |
Min Order: |
100/Piece |
Pay Type: |
L/C,T/T |
JINGJIA Hydraulic Control Butterfly Valve Features:
Designed and Manufactured of Butterfly Valve to BSEN593 and MSS SP-67 and API 609
Butterfly Valve is Suitable to ANSI 125/150, BS4504, DIN flanges
Size Ranges of Butterfly Valve: NPS 2"~52"
Pressure Rating: PN10/16, ANSI125/150/300/600
Materials of Butterfly Valve available in Iron, Steel, Stainless Steel, Duplex and Bronze, Seat Material in Both Resilient and Metal Type, Different trim materials of Butterfly Valve are available to suit different service conditions
Butterfly Valve Fire-safe design to API 608/API 6FD upon request
To MSS SP 01-75 On request
Pressure |
Class 150 ~ Class 600 / PN 6 ~ PN 100 |
Size |
2" ~ 112" / 50mm ~ 2800mm |
Operation |
Hydraulic |
Prod Model: |
HD743H |
Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Size: |
2"-112";Dn50-Dn2800 |
Nominal Pressure: |
Pn6-Pn100;150lb-600lb |
Work Pressure: |
Mid-Pressure (',2.5mpa< Pn <6.4mpa) |
Material Of Seal Surface: |
Metal Hard Sealed |
Connection Form: |
Flange |
Structure: |
Three-Eccentric Sealing |
Seal Form: |
Supercharging Pressured Sealed |
Working Temperature: |
Medium Temperature (',120??C
|
Application: |
Household Usage |
JINGJIA VALVE GROUP, founded in 1984, is a national level non-regional group that integrates the professional R&D, manufacturing, sales and services of pressure vessels. The headquarter is located at No. 4383, Cao An road, Shanghai with 106.8 Million registered capital and controls six subsidiaries. It is equipped with modernized technical research and development center, computer controlled test center, spray coating assembly line system, and self-developed automated butterfly valve and ball valve lifespan testing center. The group occupies 40, 000 square meters of total area and over 30, 000 square meters of construction area with 435 employees. The turnover of JINGJIA VALVE GROUP in year 2010 is over 150 Million RMB, of which export products account for 4.6%. The ZHEJIANG JINGJIA VALVE CO. Ltd is located in Oubei Town, Yongjia County.
The Group has obtained ISO 9001: 2008 quality system certificates from United Kingdom Accreditation Service (UKAS) and China Classification Society (CCS), API 6D and API 609 certificates from American Petroleum Institute, European Safety Mark (CE/PED), National License for Manufacturing Special Equipment (TS), Type Approval certificate from Bureau Veritas (BV), American Bureau of Shipping (ABS), and China Classification Society (CCS). Meanwhile, the testing certificates of LR, GL, DNV etc, can be also provided according to client's requirement. The group is the governing unit of China Valve Association, a 1st-Class supplier of SINOPEC, CNPC and State Grid, the compiler member of National Valve Standard, a deputy director member of China Shipbuilding Industry Corporation (CSIC) standardize research center. The group has obtained multiple national patents and new product development projects license at the provincial level. The grooved-ends valve which is developed by the group has filled the blank in domestic market. The group is also the executive editor of three industry standards, compiler member of seven industry standards, the executive editor of National Standard of automated butterfly valve and ball valve for marine services, an AAA credit and honoring-all-contracts enterprise.
The group mainly manufactures butterfly valve, ball valve, gate valve, globe valve, marine valve, waterworks valve, hydraulic systems and its accessories with material cast steel, stainless steel, cast iron, bronze, etc. And actuation including manual, electric, pneumatic, hydraulic etc. The pressure range is from 0.1Mpa to 42Mpa and the size range is from DN 6 to DN 3200mm. All the products are manufactured and inspected in strict accordance with API, DIN, JIS, GB and other industry standards, and excellent in substituting imported items and also being exported.
Under the flag of "JINGJIA" brand, with the JINGJIA spirit in mind, "Technology innovation, Stable Quality, Customer Oriented, Sincerity for Trust, No best but only better", The JINGJIA VALVE GROUP is always ready to provide clients with more satisfactory products and services.
