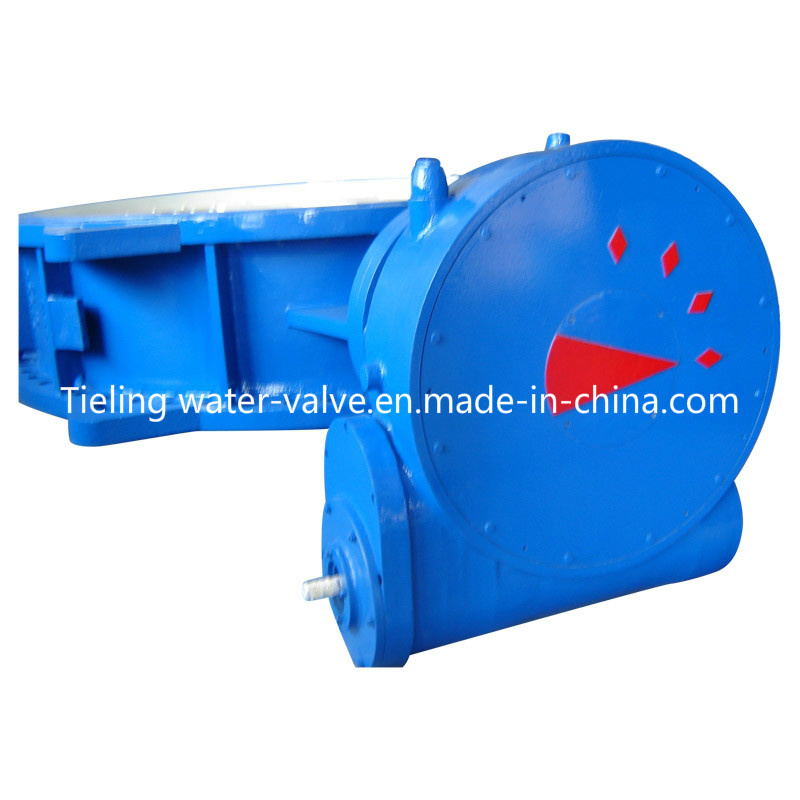

Hydraulic Control Check Butterfly Valve (HD741X-2.5/6/10 /16)
Price: |
US $ 6800/Piece |
Trade Terms: |
FOB |
Min Order: |
1/Piece |
Pay Type: |
T/T |
Product specification
Butterfly valve:Features:Main material:grey cast iron,ductile cast
iron,alloy cast iron,carbon steel.Nominal diameter:DN250-2800mm.flange connectiion.
The valve is opened and closed by the hy- draulic system and able to regulate the disc in 90. By quick and slow closing stages and it is can be installed vertically and horizon-tally.
The key hydraulic unit are made in USA, Germany and other developed countries which arevery reliable; The motor system is intellegentand controlled by PLC. The key elec-tric components are made in Japan, Germany and otherdeveloped countries.
X type-Rubber sealing
R type-Metal sealing
Main size, connection size and weight.
Nominal pressure | PN2.5-25bar |
Nominal diameter | DN500-2800mm |
Flange dimension | BS4504 ISO2531, ISO7005 and other standards conforming to the requirements |
Face to Face length | BS5155, ISO5752, DIN3352, AWWAC504 and other standards conforming to the requirements |
MATERIALS OF MAIN PARTS
Name of parts | Material of parts |
Body disc | Cast iron/ductile iron/carbon steel |
Shaft | Stainless steel |
Body sealing ring | Stainless steel |
Disc sealing ring | Rubber/stainless steel |
DN(mm) | PN(MPa) | D | D1 | b | L | L1 | B1 | B2 | B3 | d1 | Z-d |
500 | 1.0 | 670 | 620 | 43 | 229 | 150 | 1200 | 458 | 520 | 23 | 20-φ 27 |
600 | 1.0 | 780 | 725 | 48 | 267 | 150 | 1200 | 538 | 586 | 23 | 20-φ 31 |
700 | 1.0 | 895 | 840 | 54 | 292 | 240 | 1200 | 610 | 696 | 23 | 24-φ 31 |
800 | 1.0 | 1015 | 950 | 58 | 318 | 240 | 1200 | 677 | 770 | 23 | 24-φ 34 |
900 | 1.0 | 1115 | 1050 | 61 | 330 | 230 | 1310 | 764 | 870 | 27 | 28-φ 34 |
1000 | 1.0 | 1230 | 1160 | 67 | 410 | 220 | 1360 | 812 | 980 | 27 | 28-φ 37 |
1200 | 0.6 | 1405 | 1340 | 65 | 470 | 290 | 1460 | 912 | 1120 | 27 | 32-φ 34 |
1.0 | 1455 | 1380 | 65 | 470 | 290 | 1460 | 912 | 1120 | 27 | 32-φ 40 |
1400 | 0.6 | 1630 | 1560 | 68 | 530 | 290 | 1631 | 1041 | 1390 | 33 | 36-φ 37 |
1.0 | 1675 | 1590 | 68 | 530 | 290 | 1631 | 1041 | 1390 | 33 | 36-φ 43 |
1600 | 0.25/0.6 | 1830 | 1760 | 68 | 440 | 355 | 1821 | 1225 | 1520 | 33 | 40-φ 37 |
1800 | 0.25/0.6 | 2045 | 1970 | 70 | 490 | 355 | 1986 | 1348 | 1710 | 33 | 44-φ 40 |
2000 | 0.25 | 2265 | 2180 | 54 | 540 | 230 | 2203 | 1465 | 2000 | 39 | 48-φ 43 |
2200 | 0.25 | 2475 | 2390 | 60 | 590 | 250 | 2594 | 1739 | 2200 | 39 | 52-φ 43 |
2400 | 0.25 | 2685 | 2600 | 62 | 650 | 250 | 2840 | 1699 | 2400 | 39 | 56-φ 43 |

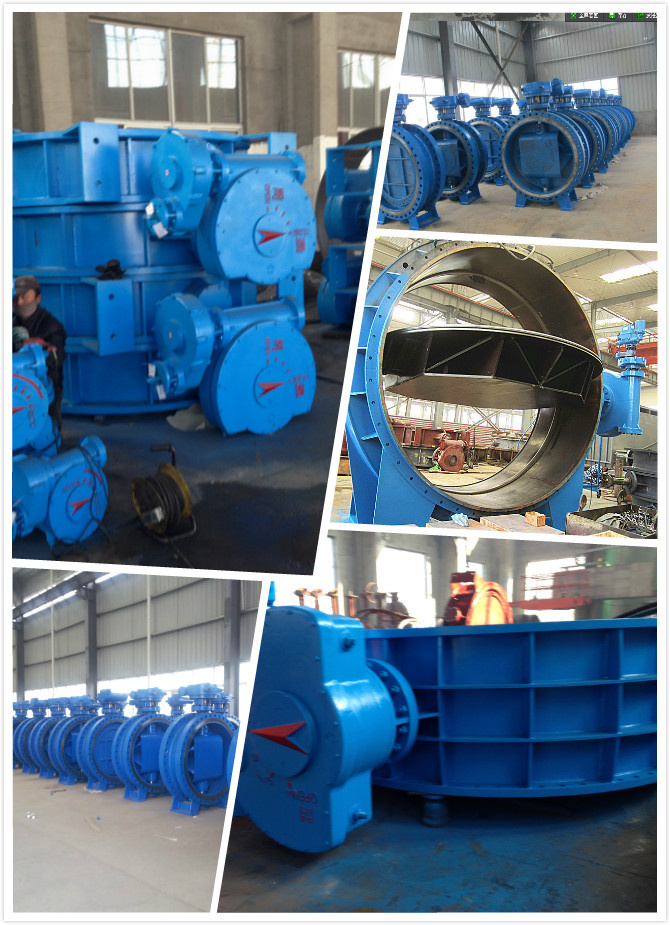

About us Tieling Water Valve Co., Ltd. is one of the key enterprises after the former Tieling Valve Works was reformed. It is the largest low pressure big diameter valve, penstock manufacturing base. It has a history of more than 70 years, it is named as advanced new and high-tech enterprise.
The registered capital is 65 million. We have 180 staff which include 2 senior professional title technicians; 15 middle professional title technicians; 40% of the staff graduated from the college. Our company occupies an area of 18558 m2 and a building area of 7800 m2. We have 4M, 2.5M, 1.25M vertical lathes, T111 boring machine, TP*6111B/2 horizontal boring and milling machine, TP*6213 stand boring and milling machine, crane, fork truck, Z3080*25, Z30100*31 large radial drilling machine, plate shearing machine, cutting machine, planning machine, universal tool grinding machine, plate bending area of 7800 m2. We have 4M, 2.5M, 1.25M vertical lathes, T111 boring machine, TP*6111B/2 horizontal boring and milling machine, TP*6213 stand boring and milling machine, crane, fork truck, Z3080*25, Z30100*31 large radial drilling machine, plate shearing machine, cutting machinerolls. There are more than 80 machining equipments and cranes of 32/5 T, 20T and 5T. We can produce gray cast iron, ductile iron, low alloy iron valves, steel penstock, cleaning machine, different kind of wind gates, strainers, and pipe fittings and valve actuators. The annual capacity (production value) is RMB 50 million.
The main products: Butterfly valve, gate valve, check valves, air release valve, rotating strainer, comb type cleaning machine, grating, steel penstock, cool and hot isolating gate, guarding gate, regulating shrinkage hole, inserting gate; The suitable medium: Clean water, sewage water, sea water, air, high temperature stove air, gas, steam and different acid and alkali liquid; Suitable temperature: -40º C to 600º C; Suitable pressure: 0.01MPa~2.5MPa; Nominal diameter: DN50-DN3000, actuating methods: Manual, motor, pneumatic, hydraulic, motor& hydraulic. According to the customer' S requirements we can design and manufacture the products conforming to GB, JB, ISO, DIN, BS, API, ANSI. The products are widely used in water power plant, thermal power plant, water plant(city water supplying and distributing), sewage treatment plant, gas, airline, metallic, petroleum and chemical, mine, water power.
Our products have been applied in many projects such as: Beijingyanshang Petroleum &Chemical, Yuanbaoshan Power Plant, Tangshansanyou Thermal Power plant Co., Ltd., Fuxin Power Plant, Anhuipingwei Power Plant, Guodian Puyang Thermal Power Plant Co., Ltd., Jilin Songyuan Oil Refining Plant, Jinxi Petroleum & Chemical Co., Ltd., Jinzhou Power Plant, Guangdong Liede Water Plant. Our company has the right of importing&exporting, some of the products have been exported to USA, Canada, England, Turkey, Spain, Pakistan, Iran, Iraq, Singapore, Thailand, Malaysia, Cambodia, Syria. South Africa, Nigeria, Egypt, Tanzania and other countries.
We have gained the belief and good evaluation from the foreign and domestic customers for our Good product quality and perfect after sale service.
Sincerely welcome the domestic and foreign clients to our company for visiting and negotiation. We will provide you with best products and perfect service.
Our quality policy: Customer is the center, pursuit excellence; Quality first, credibility supreme.
Prod Model: |
HD741X-2.5/6/10 /16 |
Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Large Diameter,Low Pressure Valve: |
Material Is Ductile Iron or Cast Iron |
Material: |
Cast Iron |
Connection Form: |
Flange |
Structure: |
Butterfly |
Application: |
Water Industrial Usage |
