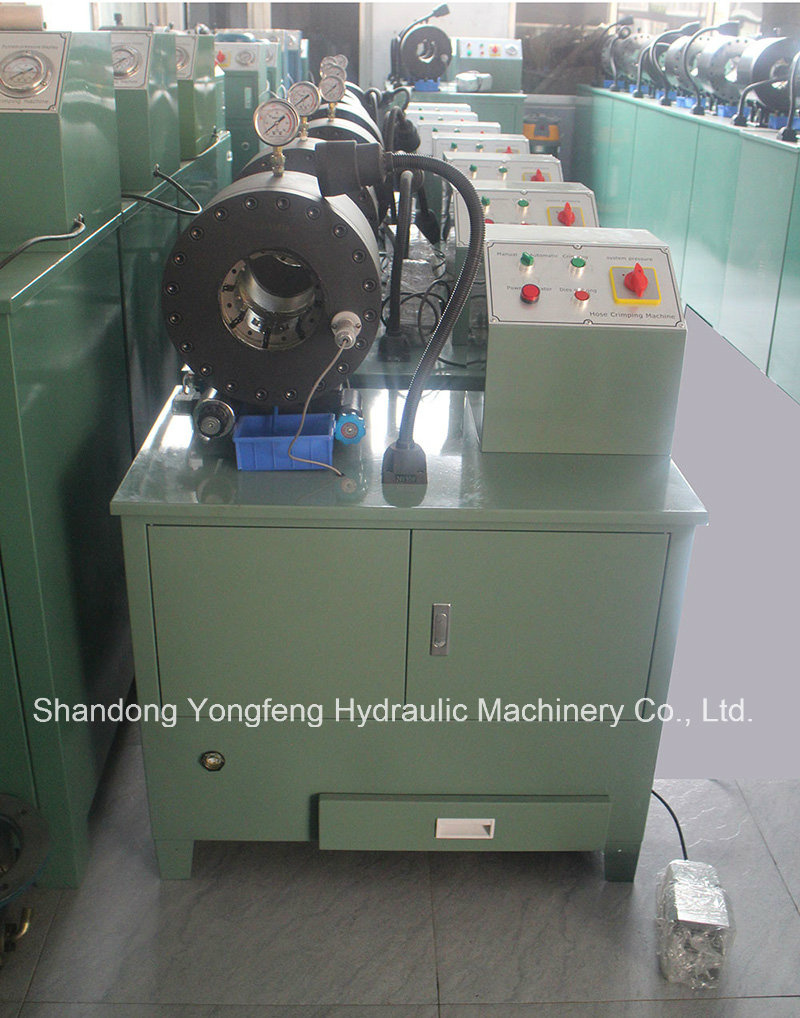

Hydraulic Crimping Tool (YJK-51z1)
| Price: |
US $ 3100/Set |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
1/Set |
| Pay Type: |
L/C,T/T,Western Union |
Product Description
The Crimper with a hose capacity up to 2½ inch 2 wire hose and 2 inch 4 wire hose is able to
handle a wide range of hoses and fittings effectively. The easy micrometer setting, built in die storage and included foot switch make this series ideal for many users.
Technical Data
| Crimping Force (Ton) | 500 |
| Max Hose Diameter (2 wire) | 2½″ |
| Max Hose Diameter (4 wire) | 2″ |
| Max Industrial Hose Diameter | 2½″ |
| Max Opening w/o Dies (mm) | 120 |
| Dimension (L*W*H) (mm) | 800*500*1350 |
| Weight (kg) | 310 |
| Power Supply (V) | 220/380 |
| Motor Power (kw) | 3/4 |
| Manual/Auto Crimping | Yes |
| Inch/Metric Settings | Metric Only |
| Dies Sets | 10+4 |
Die specifications
Dies for High Pressure Oil Pipe| Model | Φ6 | Φ8 | Φ10 | Φ13 | Φ16 | Φ19 | Φ25 | Φ32 | Φ38 | Φ51 |
| Crimping range (mm) | 15-25 | 18-28 | 20-30 | 23-33 | 26-36 | 29-39 | 37-47 | 46-56 | 51-61 | 63-73 |
| Die length (mm) | 65 | 65 | 65 | 65 | 65 | 65 | 80 | 80 | 80 | 80 |
Dies for Low Pressure Oil Pipe| Model | Φ6 | Φ8 | Φ10 | Φ12 |
| Crimping range (mm) | 6 | 8 | 10 | 12 |
| Die length (mm) | 35 | 35 | 35 | 35 |
Packaging
| Prod Model: |
51z1 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Type: |
Hydraulic Power Units |
Shandong Yongfeng Hydraulic Machinery Co., Ltd, founded in 1992, specializes in manufacturing hose crimpimg machine, hose shiving machine, hose cutting machine, hose cleaning machine, pressure testing machine, hose and fitting, which are widely used in the areas of oil field, mining, defense industry, greenhouse, shipbuilding, hydraulic hose production, automobile, machine repair, etc.
As one of the largest and most professional manufacturers in China, our products are sold to over 20 provinces and municipalities at home and exported to Europe, North America, East Asia, Southeast Asia, Middle East, Africa, Latin America and Oceania.
Hydraulic hose crimping machine, also called hose crimper, is a sort of hydraulic equipment used to withhold a wide range of hose such as low or high pressure oil pipe, water or gas pipe and cable joint.
We are committed to supplying you with high quality products. We accept special orders about the products as well. If you are interested in our products, please let us know. We are delighted to offer you the detailed information. We assure you that the quality of our products is first-class and you have wide selection. Our products are excellect in quality and reasonable in price.
Shandong Yongfeng Hydraulic Machinery Co., Ltd is a company integrating R&D, manufacturing and sales. It is located at Diandong Village, Beicheng Township, Economic Development Zone, Weifang City, China, boasting abundant resources and convenient transportation.
Please contact us or visit our website for more information.
