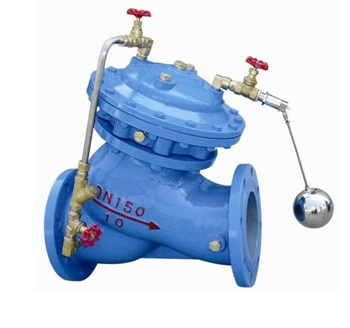

F745X-type remote control float valve, the main purpose is installed in the mining industry and civil construction in various pools, water towers, water inlet pipe, when the water level reaches a predetermined level, the valve automatically closes; When the water level drops, the valve automatically open the replenishment.
Second, features:
1 closed tight. Solid rubber seal ring seal, pump and valve control principle, proportional to the sliding tray is closed and inlet pressure, high sealing reliability.
2, over flow. The valve body adopts streamlined design of the whole channel, fluid resistance, flow.
3, easy maintenance. The main valve is installed in the pool outside, commissioning checks and simple maintenance.
Nominal Pressure (Mpa) Casing test pressure Seal test pressure Minimum operating pressure
1.0 1.5 1.1 ≥ 0.04
1.6 2.4 1.76 ≥ 0.04
2.5 3.75 2.75 ≥ 0.04
Fluid: Water
Temperature: 0-80(C)
Working Principle
The main valve is installed on the outside of the water tank, the float pilot valve installed in the tank. When the liquid is lowered, the float pilot valve open, the loss of pressure on the control chamber, the main valve is opened, to supply water to the water tank. When the liquid level rises the float pilot valve closed, the upper control chamber pressure is increased, the main valve is closed, to stop supplying water to the water tank.
Installation and adjustment
1, the best way to install is installed in a horizontal pipe, valve cover upward;
2, installation outside the body water labeled arrows, follow the direction of the installation;
3, prior to installation to complete removal of debris inside the pipe, piping must be thoroughly washed with water;
Valve before you want to install a filter valve should install a gate valve, in order to repair;
5, test the water, slowly open the valve before the gate valve, pay attention to the control line is leaking outside the body. Hand when the copper ball valve is closed, the main valve can be closed, if the main valve can not close the main valve sealing surface of the folder with the stolen goods, dual-chamber diaphragm drive mechanism removed, clear water and try again after the stolen goods;
6, copper filter should be cleaned regularly.
