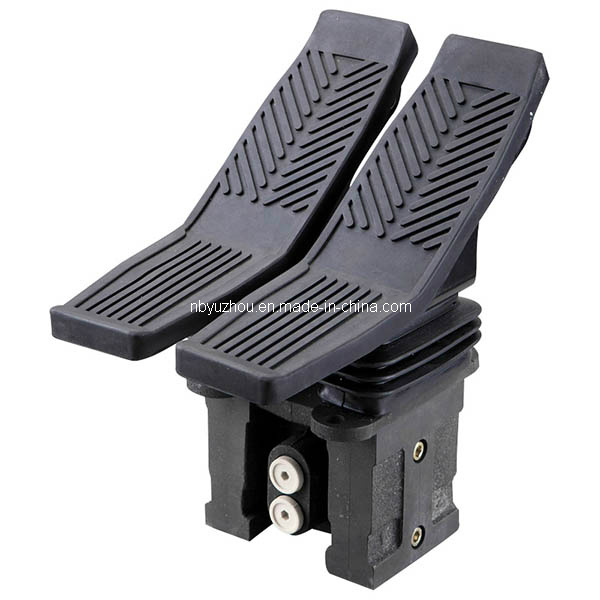

4JT Series Pilot control Valve
Application
Pilot valve series products are mainly used in the control oil circuits of hydraulic system, through the pilot valve to control the output pressure of the pilot oil, to meet working conditions of the system. To achieve remote control of multiple valves, pumps and motors high response proportional hydraulic control valve, widely used in excavators, loaders, rippers and
Functions and features
1. Adopting the way of foot manipulation;
2. Mainly used in low pressure control circuits;
3. Small size, light weight, easy to install;
4. By replacing the spring to meet different output requirements of customers 'need;
5. Strong durability;
6. Choose flexible installation location;
Basic datasheet
1. Max. allowable oil inlet pressure at P port: 10MPa
2. Max. allowable back pressure at T port: 3bar
3. Rated flow: 12L/min
4. Pilot system pressure:4MPa;
5. Secondary output pressure:0.66~2.5MPa.

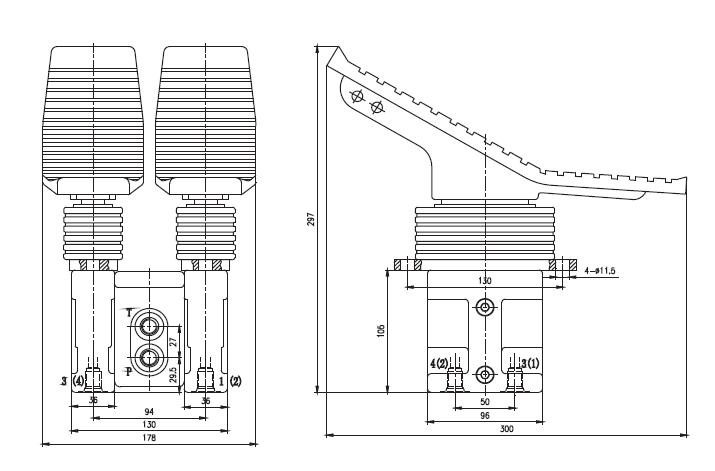

6. All the connection port is G1/44JT-3.0 dimensions

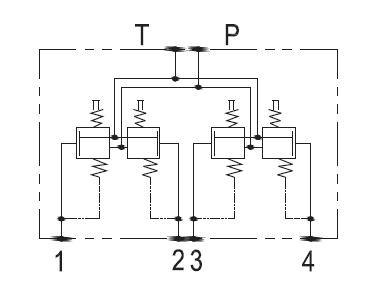

4JT-3.0 symbols
