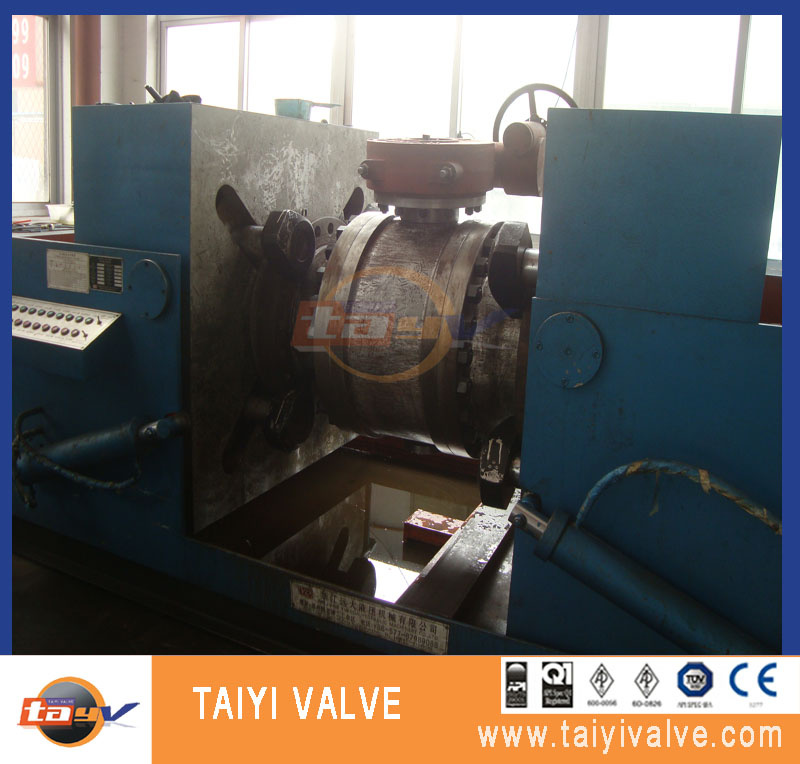

Hydraulic & Pneumatic Testing Ball Valve

Hydraulic & Pneumatic Testing Ball Valve
Price: US $ 3000/Piece
Trade Terms: FOB,CFR,CIF
Min Order: 1/Piece
Pay Type: L/C,T/T,D/P,Paypal
PRODUCT RANGE
Class 150 from 2'' to 42''
Class 300 from 2'' to 42''
Class 600 from 2" to 42"
Class 900 from 2" to 36"
Class 1500 from 2" to 24"
Class 2500 from 2" to 24"

MATERIALS
BODY: Carbon steel, Stainless steel, Low temperature carbon steel, Duplex, Special Alloys, ...Other materials under request
SOFT SEATS: PTFE, RPTFE, PEEK, DEVLON, NYLON, ...Other materials under request
METAL SEAT: Tungsten Carbide(TC), Stellited
, Ni60...Other materials under request.
TRIM: A105+EP, 304, 316, 410, MONEL, ...Other materials under request

DESIGN STANDARDS
ASME Standards:
B1.20.1Pipe Threads, General Purpose(Inch)
B16.10Face-to-Face and End-to-End Dimensions of Valves
B16.25Buttwelding Ends
B16.11Forged Fittings, Socket-Welding and Threaded
B16.5Flanged Fittings and Pipe Flanges
B16.47Large Diameter Steel Flanges
API Standards:
6DSpecifications for Pipeline valves
598Valve Inspection and Testing
607Fire test for soft-seated quarter-turn valves
6FASpecification for Fire Test for Valves
MSS Standards:
SP-55Quality Standard for Steel Castings for Valves, Flanges, and Fittings and Other Piping Components-Visual Method for Evaluation of Surface Irregularities
SP-54Quality Standard for Steel Castings for Valves, Flanges, and Fittings and Other Piping Components-Radiographic Examination Method
SP-53Quality Standard for Steel Castings for Valves, Flanges, and Fittings and Other Piping Components-Magnetic Particle Examination Method

DESIGN FEATURE
3-pieces body, full bore. Fire-Safe certified, trunnion ball with spring loaded seats, blow out proof stem, flanged connections.
Non-removable antistatic devices assure electric continuity between ball and
Body through the stem.
All wetted component materials and bolting meet NACE MR. 01.75 latest edition as standard.
Asbestos free.


APPLICATION
Refinery
Chemical
Petrochemical
Power plant
Gas
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
600lb: 18"
Connection Form: Flange
Channel: Straight Through Type
Structure: Fixed Ball Valve
Type: Fixed Ball Valve
Application: Household Usage
Material: Carbon Steel
TAIYI Valve Co., was founded in 2005, which is an industrial ball valve manufacturer of China, covering trunnion mounted, floating, top entry, DBB and metal seat type ball valves etc. In carbon steel & stainless steel materials and used in oil & gas, chemical, water field and etc. With ISO 9001 certified.

TAIYI Co., now has our own manufacturing facility with more than 5, 000 square feet locating in qianshi industrial zone, Owned with modern production facility and technical skills with annual output of 10million tons, which above 70% sold to overseas, such as Middle East, Europe, Southeast Asia, South America etc.

TAIYI Co., always regards product's quality and client's requirements as our central work. Through years of consistent innovation and development, we got good reputation from our esteemed clients with timely delivery, good quality and best services.

We will be your choice for ball valve!
