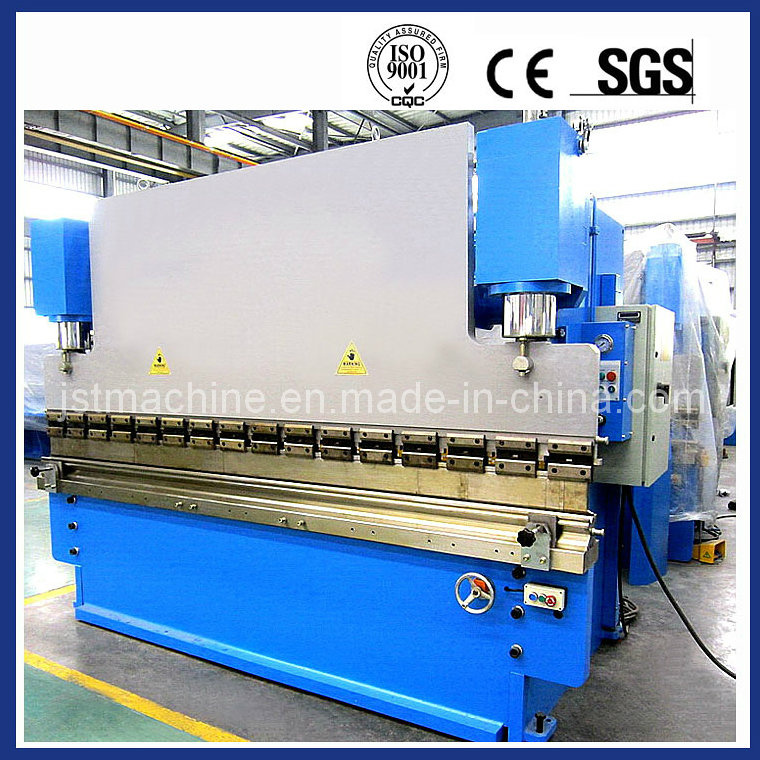

APB63.31 (capacity: 63tonx3100mm)Hydraulic Press Brake with Italy MPF Digital Read Out:
Component:
-Digital readout display-MPF (Italy)
-Imported Pump-Bosch Germany,
-Imported Hydraulic Valves-Aron Italy
-EMB type fitting
Model: APB 63.31 complete with
- Max. Bending Capacity: 3100mmx 63Tons
- Distance between housing: 2550mm
- Standard intermediate clamping with standard Gooseneck Top tool- Sectionalised.
- Standard Multi V-die Block, full length.
- Standard motorized backgauge
Standard Equipment
Mechanical equilibration of the RAM-Torsion Arm.
Motorised mechanical depth stops incorporated in the machine complete with manual fine adjustment with digital read out display-MPF (Italy).
Electrical panel with manual and auto operation.
Adjustable working pressure.
Gear pump and Italy hydraulic valve.
Foot pedal, tool kit.
Operation manual
Option: Quick Clamp
Top Tool + Multi-V Block + Die Rail
Deep Throat 310mm
| Model Type | Capacity | Working Table | Distance between house | Throat Depth | Max
Stroke | Max Opening Height | Main
Motor | Ram Speed | Weight | Overal Size |
| Approch | Working | Return | L | W | H |
| Unit | KN | mm | mm | mm | mm | mm | H. P | mm/s | mm/s | mm/s | Kg | mm | mm | mm |
| 40.20 | 400 | 2200 | 1850 | 230 | 100 | 320 | 7.5 | 80 | 8.5 | 80 | 2500 | 2200 | 1200 | 1910 |
| 40.25 | 400 | 2500 | 1850 | 230 | 100 | 320 | 7.5 | 80 | 8.5 | 80 | 2720 | 2500 | 1200 | 1910 |
| 63.25 | 630 | 2500 | 1900 | 250 | 100 | 320 | 7.5 | 80 | 8.5 | 80 | 3500 | 2500 | 1300 | 2210 |
| 63.31 | 630 | 3100 | 2560 | 250 | 100 | 320 | 7.5 | 80 | 8.5 | 80 | 4800 | 3200 | 1300 | 2210 |
| 110.25 | 1100 | 2500 | 25020 | 320 | 120 | 320 | 10 | 80 | 9 | 80 | 5130 | 2500 | 1600 | 2400 |
| 110.31 | 1100 | 3100 | 2600 | 320 | 150 | 340 | 10 | 80 | 9 | 80 | 6400 | 3200 | 1600 | 2600 |
| 110.40 | 1100 | 400 | 3500 | 320 | 150 | 340 | 10 | 80 | 9 | 80 | 7240 | 4000 | 1600 | 2700 |
| 160.31 | 1600 | 3100 | 2600 | 320 | 200 | 375 | 15 | 70 | 8 | 80 | 9500 | 3200 | 1700 | 2700 |
| 160.37 | 1600 | 3700 | 3100 | 320 | 2500 | 375 | 15 | 70 | 8 | 80 | 9700 | 3700 | 1700 | 2750 |
| 160.40 | 1600 | 4000 | 3500 | 320 | 200 | 375 | 15 | 70 | 8 | 80 | 10440 | 4000 | 1700 | 2800 |
| 200.31 | 2000 | 3100 | 2600 | 320 | 200 | 385 | 20 | 65 | 7 | 70 | 9500 | 3200 | 1950 | 2800 |
| 200.40 | 2000 | 4000 | 3500 | 320 | 200 | 385 | 20 | 65 | 7 | 70 | 10440 | 4000 | 1950 | 800 |
| 200.50 | 2000 | 5000 | 4000 | 320 | 200 | 385 | 20 | 65 | 7 | 70 | 13000 | 5000 | 2000 | 3000 |
| 250.31 | 2500 | 3100 | 2500 | 400 | 250 | 450 | 25 | 60 | 6 | 60 | 15000 | 3250 | 2000 | 3200 |
| 250.40 | 2500 | 4000 | 3500 | 400 | 250 | 450 | 25 | 60 | 6 | 60 | 17000 | 400 | 2000 | 3400 |
| 300.40 | 3000 | 4000 | 3000 | 400 | 250 | 470 | 25 | 60 | 6 | 60 | 19380 | 4000 | 2000 | 3450 |
| 300.50 | 3000 | 5000 | 4000 | 400 | 250 | 470 | 30 | 60 | 6 | 60 | 23000 | 5000 | 2180 | 3450 |
| 400.40 | 4000 | 4000 | 3500 | 400 | 250 | 500 | 30 | 60 | 5 | 50 | 19000 | 400 | 2180 | 3400 |
| 400.50 | 4000 | 5000 | 4000 | 400 | 250 | 500 | 40 | 60 | 5 | 50 | 28000 | 5000 | 2180 | 3500 |
| 400.60 | 400 | 6000 | 5000 | 400 | 250 | 500 | 40 | 60 | 5 | 50 | 32000 | 600 | 3500 | 3800 |
| 500.50 | 5000 | 5000 | 4000 | 400 | 250 | 500 | 40 | 60 | 5 | 50 | 47000 | 5050 | 3500 | 3700 |
| 500.60 | 5000 | 6000 | 5000 | 400 | 320 | 500 | 60 | 60 | 5 | 50 | 53500 | 6050 | 4500 | 3700 |
| 600.40 | 6000 | 4000 | 3500 | 400 | 320 | 500 | 60 | 60 | 5 | 50 | 45000 | 4050 | 4500 | 3700 |
| 600.60 | 6000 | 6000 | 5000 | 400 | 320 | 500 | 75 | 60 | 5 | 50 | 70000 | 6050 | 4500 | 3700 |
| 800.60 | 8000 | 6000 | 5000 | 400 | 320 | 500 | 75 | 60 | 5 | 50 | 85000 | 6300 | 4500 | 6000 |
Jadestone Machine Tool Co., Ltd is a high Technology Enterprise specializes in the Field of Metal Sheet Fabricating Industry with Highest Quality Standards 9001: 2001 and Powerful Facility and Productivity.
With Years of Exporting Experiences, we Devote and leading in Manufacturing, Research, Marketing and Puissant Ocean Freight capacity global in Metal Cutting, Bending Machine, CNC Punching Machine, Cast Iron and Moulds Design. Our sales network stretches all over the world, with our business conception of Honesty, Creation. Quality. And after Service. To optimize maximum benefits for various Customers with those High performance products, which awards highly praises and repeat orders continuously from different regions.
Apply Territory:
Our products are widely used in Decor, Metallurgy, Boat & Auto Industries. Elevator, and outside construction building.
Products Ranges:
CNC Press Brake
CNC Shearing Machine
Hydraulic Guillotine Shear
(Option with: Estun, Delem, Cybelec, Italy controller )
Punch Press( CNC punch and Power Press. Hydrauic Press)
Tooling Set for Machine model (Amada. Durma. LVD. Haco. Trumpf...)
Drilling Machine and Milling Machine
Production Line, Uncoiled, Cutting, Bending and Punching. Or can be separated ordered.
Shipments:
Shipments to European, North America. South America. Middle East, South-East Asian and Ocean Countries globally.
After Services:
Provide with technical Services. Training service. Maintenance services. Spare parts in Warranty.
Within 24 hours online Service
