Pressure max.: 210kgf/cm2
Displacement max.: 2CC/rev~12CC/rev
Mounting Type: (Flange type): JIS 4-bolt
Model name:
PR1-2A-F-02-R-X-4BJ
Specifications:
Series Number: PR1
Group: 2 group
Mounting: F(Flange Type)&L(Foot Type)
Displacement: 2: 2CC/rev, 3: 3CC/rev, 4: 4CC/rev, 6: 6CC/rev, 7.5: 7.5CC/rev, 9: 9CC/rev, 10.5: 10.5CC/rev, 12: 12CC/rev
Rotation Directional
R: Clockwise L: Counter-clockwise
Shaft Type:
X: Straight Shaft,
Y: Spline Shaft
Flange Mounting Type: 4BJ: JIS 4-bolt
Model numbers:
PR1-020
PR1-030
PR1-040
PR1-060
PR1-075
PR1-090
PR1-105
PR1-120

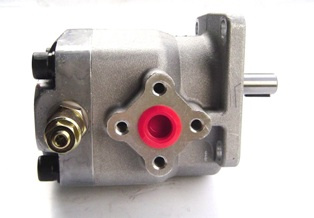

Hydraulic Pump Gear Pump with Relief Valve
Lih Cherng Hydrualic Co., Ltd (LCH) is a professional manufacturer of hydraulic valves and pumps with more than 20 years rich experience in this industry. We are located at Industry Park in Dali, Taichung, where a renowned advanced industrial area and the geographical position are favorable and with convenience traffic.
Lih Cherng Hydrualic Co., Ltd (LCH) manufactures thousands of different parts in house to ensure the quality and excellent performance. Lih Cherng Hydrualic Co., Ltd (LCH) have the widest range of fluid power parts which could meet your need and wants. Lih Cherng Hydrualic Co., Ltd (LCH) specialized in 9 series, including pressure control valves, flow control valves, directional control valves, modular control valves, logic valves, solenoid check valve, hydraulics gear pumps, and hydraulic vane pumps & piston pumps series. Lih Cherng Hydrualic Co., Ltd (LCH) could also provide check valves, needle valves, valves and relief valves. The products are widely used in automatic molding sand control equipment, auto molding making system, metallurgical structure inspect, vane grinder, slit grinder, directional valve body working system, high pressure parts washer, etc. These valves could be customized in accordance with the requirements.
In addition, Lih Cherng Hydrualic Co., Ltd (LCH)'s quality control system is strictly managed. Lih Cherng Hydrualic Co., Ltd (LCH)'s highly-skilled technical staff, CAD system, complete production equipment, advance process and effective quality control committed to providing the best product, quality and service to Lih Cherng Hydrualic Co., Ltd (LCH)'s customers.
LCH started from a state-owned hydraulic valves and pumps enterprise in 1987. Granted with LCH trade market right in 1995 and approved by Chinese government's authority in 1998 with patent No. 478678. In 1980, become one of the members of Taiwan Fluid Power Organization.
With an achievement of excellent quality, before and after-sales service, technical support while using it, and competitive price, LCH tries the best to provide satisfaction to meet customers' requirements.
