Hydraulic Valve Sets - AC Valve (Vaillant, Baxi, Bosch, Ariston etc)
Function: Heating/ scouring bath
Nominal diameter: 20mm
Reverse way: Motor drive
Motor working violtage: 220VAC/50Hz
Flux transducer working voltage: DC5V
Control pressure of heating water: 0.5~3.0kgf/cm2
Maximum working pressure of sCouring bath water: 7 kgf/cm2
Minimum working pressure for scouring bath water: 0.3 kgf/cm2
Minimum water flux of scouring bath: 2.51/min
Limit water flux of scouring bath: 7.3/101/min
Specification for Bithermal Hydraulic Circuit :
|

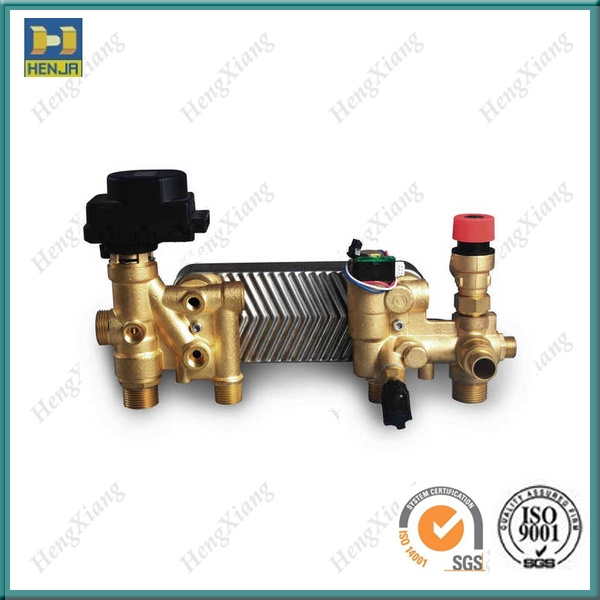

The hydraulic sets include hydraulic valve,by-pass valve,circulating water pump and water flow sensing unit, temperature sensor, etc. It is used for wall hung boiler (combination gas boiler) system to reverse, inspect and control the flow of heating water and bathing water.
|
Flux transducer working voltage
|
DC5V |
|
Control pressure of heating water |
0.5~3.0kgf/cm2 |
|
Maximum working pressure of sCouring bath water |
7 kgf/cm2 |
|
Minimum working pressure for scouring bath water |
0.3 kgf/cm2 |
|
Minimum water flux of scouring bath |
2.51/min |
Advantages:
It almost integrates all funtions and parts of the water circling system of the boiler. Special design results in a low water resistence. Hall flow sensor makes the sanitary temperature more stable. Compact dimension,easier for installation. Runs reliablely |
Zhejiang Hengxiang Holding Group was established in 1999. As a professional manufacturer of gas boilers parts, water heater fittings, hardware, machine accessories, automobile parts, refrigeration parts, etc., the Group have total more than 170 sets punching machine, CNC lathe, CNC bending machine, drilling machine, milling machine, hydraulic machines, dryers and other more advanced production equipment and owns such building facilities as Modern General Assembly Workshop, Precision Processing Workshop, Research & Development Centre and Operation Centre, which in all exceed 70, 000 square meters.
Zhejiang Hengxiang Import and Export Co., Ltd as a member of the Hengxiang Holding Group is in charge of the worldwide sales and marketing of our group and dedicated to the supply excellent quality products at competitive pricing, in a timely manner. In line with the philosophy of the Group to which it belongs, Zhejiang Hengxiang Import and Export Co., Ltd views quality as much more that a simple target; in fact, it has become the underlying theme in the development and optimization of our productive processes.
To be your global sources partner and industrial components solution provider, we shall continuously enhance the developing and manufacturing capacity of our high quality products. With international industrial standards as the leader, we will deepen existing products; meanwhile unceasingly bring out products with international competitive ability to meet the requirements of global customers
