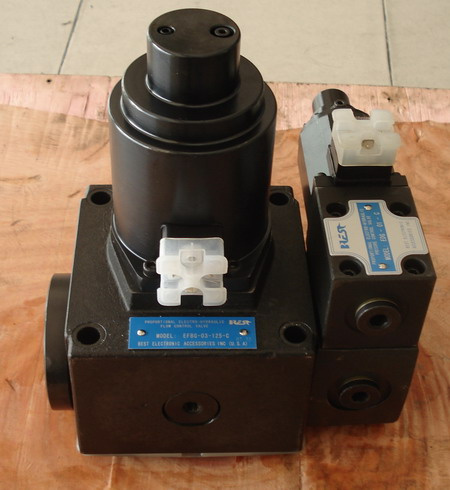

40Ω -10Ω Series flow control and relief valves
Hydraulic valves, proportional valves
|
Items |
EFBG-03-125-*-26 |
EFBG-06-250-*-15 |
EFBG-10-500-*-15 |
|
Max.Operating Pressure MPa |
25 |
25 |
25 |
|
Max.Flow L/min |
125 |
250 |
500 |
|
Metred flow adj.Range L/min |
1~125 |
2.5~250 |
5~500 |
|
Flow controls |
Rated current mA |
680 |
580 |
700 |
|
Coil resistance Ω |
43.5 |
43.5 |
43.5 |
|
Differential Pressure MPa |
0.6 |
0.7 |
0.9 |
|
Hysiteresis |
Less than 7% |
Less than 7% |
Less than 7% |
|
Repeatability |
Less than 1% |
Less than 1% |
Less than 1% |
|
Pressure controls |
Pres.Adj.RangeMPa |
C:1.4~14
H:1.4~21 |
C:1.5~14
H:1.5~21 |
C:1.6~14
H:1.6~21 |
|
Rated current mA |
C:710
H:770 |
C:690
H:730 |
C:690
H:690 |
|
Coil resistance Ω |
10 |
10 |
10 |
|
Hysteresis |
Less than 3% |
Less than 3% |
Less than 3% |
|
Repeatability |
Less than 1% |
Less than 1% |
Less than 1% |
|
Approx.Mass kg |
Refer to F-40~F-42 |
