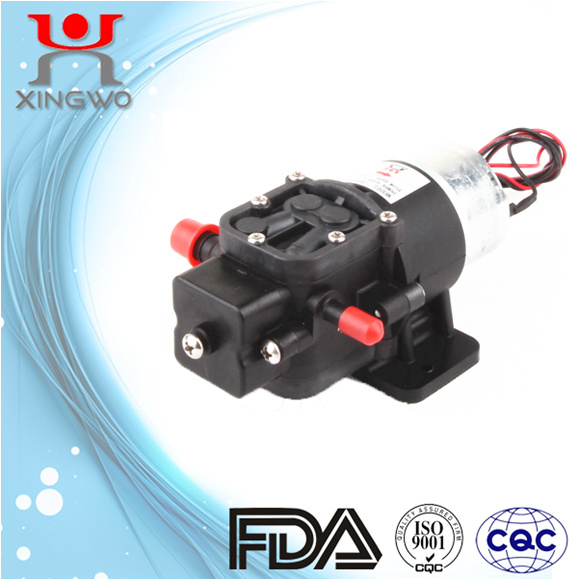

High Quality Electric Mini Diaphragm Pump
--- Working life time more than 800 hours
--- Your best choose for Sprayer, Water Filter, Medical Equipments, Water Purifier etc.
--- Medium: Water, oil or solution with pH value between 5 to 8
1. General Info
2. Flow Rate Curve:
3. Drawing:
4. Electric Diaphragm Pump Characteristic
--- Combined the advantages of self-priming displacement pump and chemical pump. Integrated structure of motor and pump. Completely isolated and anti-leakage, with favorable performance in oil resistance, heat resistance and chemistry resistance.
--- Self-priming and overheat protection, stable running, no damaged under long time life testing, small size and low noise.
--- Non-chemical seal, built-in valve could prevent flowing backwards.
--- Prevent sputtering, heat exhaust from internal, free of external heatsink.
--- The pump body is made of anti-corrosive PP, the internal structure is made of diversified synthetic, rubbers to achieve best chemical adapt ability.
--- It is reliable for self-priming with internal check valve, the pump is controled by pressure switch(on/off).
--- Available voltage 12VDC / 24VDC / 36VDC / 110VAC / 220VAC, apply for independent pump chamber, self-priming lift reaches 12 inches (370cm).
--- By adjusting the switch, the max output pressure can be improved by 30%~50%, but it should not be too high, otherwise, the rubber parts will be damaged or the life will be shortened.
5. Application
--- This series products are widely supplied in universal industrial equipments, medical equipments, chemical equipments, agriculture sprayer, tourism vehicles, speial purpose vehicles, boats and beverage equipments, car cleaning, carpet cleaning, floor cleaning, water purifier and water treatments.
--- Provide water for washing, taking bath, toilet and flushing on vehices, ships and crafts etc.
--- Transfer, distribute and feed liquid in food and beverage processing and treatment equipments.
--- Water for household, such as water dispenser, self-cleaning and cooling dispenser, RO system.
--- Solar energy industries.
--- Water purifier industries.
--- Sprayer for Agriculture.
|
Model# |
Voltage |
Current |
Max
Flow Rate |
Max
Pressure |
Noise |
Inlet/Outlet |
|
DP005A1 |
12VDC |
0.9A |
0.8L/Min |
35PSI |
<48dBA |
6.4mm |
|
DP005A2 |
12VDC |
1.2A |
1.2L/Min |
35PSI |
<53dBA |
6.4mm |
|
DP005B1 |
24VDC |
0.6A |
0.8L/Min |
35PSI |
<48dBA |
6.4mm |
|
DP005B2 |
24VDC |
1.0A |
1.2L/Min |
35PSI |
<53dBA |
6.4mm |
Foshan Xingwo Electric Co., Ltd. Was established in 2008, which is a modern enterprise integrating research and development, marketing and manufacturing of different kinds of pumps, mainly including electric mini gear pumps, diaphragm pumps and centrifugal pumps.
Xingwo is located in Shunde Area, Foshan City, Guangdong province, with a flow area of 4000 square meters, is equipped with advanced testing facilities of flow rate and noise level, ISO system as the quality control method, with 90 employees and we produce more than one million pumps each year, integrity, innovation and win-win, Xingwo follows the demand of the market closely and has developed more than 100 different kinds of special pumps for different industries, our pumps are widely used in environmental protection, constructions, water treatment, chemical industries, medical instruments and household etc., further, our engineering team had worked with our customers and provided them customs design accordingly to their requirements.
Xingwo will keep focusing on the mission to create more value for customers, with strict quality and procedure control; We are looking forward to building long term relationship with more and more customers from all over the world.
