Product Description
Application

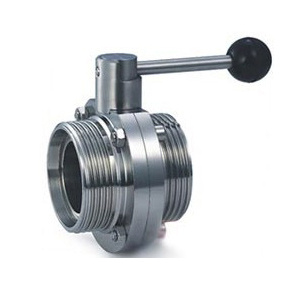

This series is a manual type sanitary butterfly valve with thread-thread ends, which is widely used in process piping systems for isolation and control.
Materials
Valve disc: AISI 316L / 304 (forged)
Valve body: AISI 316L / 304 (forged)
Valve seat and gasket: EPDM, comply with FDA 21CFR177.2600
Options
The seat and gasket can be NBR (Nitrile), VMQ (Silicone) or Viton (FPM) all complying with FDA 21CFR177.2600.
End connection can be butt-welded, sanitary clamp, threaded, flanged, I-line or others upon request.
Handle: 3-position pull handle; Multi-position handle in either pure stainless steel or with plastic cover.
Actuator: Pneumatic stainless steel actuator (vertical type), pneumatic aluminum actuator (horizontal type), electric actuator.
Control: Position sensor, C-top controller, C-top controller (AS-I)
Design Features
Various standards can be provided: DIN, 3A, SMS, ISO / IDF, BS / RJT, and ASME / BPE.
Available in sizes from DN25 / 1" to DN300 / 12"
Multi-position handles can be used for valves up to DN100 / 4"; Pull handles can be used for valves from DN25 / 1" to DN300 / 12"
Manual handle, pneumatic actuator and electric actuator are interchangeable.
Seals comply with FDA 21CFR 177.2600.
The valve body can be customized with a wide selection of different connections.
Technical Specification
Available in sizes from DN25 / 1" to DN300 / 12"
Max. Pressure: 10bar (145psi) DN25 ~ 100; 8bar (120psi) DN125 ~ 150
Temperature range: 14 ~ 248° F (-10 ~ 120° C), EPDM
End connections: Butt-welded, sanitary clamp, threaded, flanged, I-line or others upon request.
Surface treatment: Ra 16 ~ 32µ In (0.4 ~ 0.8µ M)
Supply pressure for air actuator: 70 ~ 115psi
Standard | 3A, DIN, IDF, SMS etc. |
Size | DN15-150 & 1/2" -8" |
Material | SS304, SS316L |
Body/Disk | Made by Forged material, fully precision machined by CNC machine. |
Gaskets | Silicone, EPDM, Telfon, Nitrile etc. |
Connection | Welding, clamp, thread and flange |
Handle | Manual, 2/3/4-position pulling handle, multi-position plastic/stainless steel handle, 12 position gear handle. (can be produced by requirements) |
Surface Treatment | 180-420 Grit or unpolished |
Quality/Certificate | ISO9001 |
Temperature | -10 degree to 200degree |
Special product | As per the requirements of customers |
Applications | Food, dairy, beverage, beer, wine, pharmacy, biology and chemical industry. |
Other Choice | Pneumatic valve and Electric valve (100% Tested /100% Inspected) |
Service | Prompt quotation, competitive price, punctual delivery and guaranteed quality |
