Working Medium: Air, Water, Oil
Motion Pattern: Direct Drive Type /Guide Type
Type of Acting: Normal Close Type
Working Temp.: -10-+80° C
Voltage Fluctuation Range: ± 10%
Power Consumption: AC: 7VA/60HZ, 9VA/50HZ; DC: 6W
Insulation Protective Class: F Class. IP65
Minimum Activate Time: 0.05second

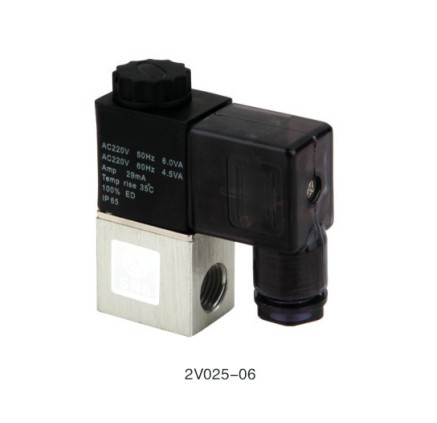

| Model | 2V025-06 | 2V025-08 | 2V130-10 | 2V130-15 | 2V025-20 | 2V025-25 |
| Working Medium | Air, Gas, Water, Hot Water, Liquid |
| Type | 2/2 Normal Closed |
| Orifice(mm) | 2.5 | 13 | 25 |
|
| Port Size | 1/8" | 1/4" | 3/8" | 1/2" | 3/4" | 1" |
| Working Pressure | 0-10Bar |
| Max. Pressure Resistance | 11Bar |
| Note | Seal Material: NBR/EPDM/VITON |
|
| Max. Temperature For Media: NBR: 80 EPDM: 130 VITON: 120 |
|
Ningbo Hailan Pneumatic Equipment Co., Ltd is a professional pneumatic enterprise which collected R&D, manufacturing, sales and after-sales service. It is specialized in production of control components, air source treatment units, executive components, and other pneumatic accessories.

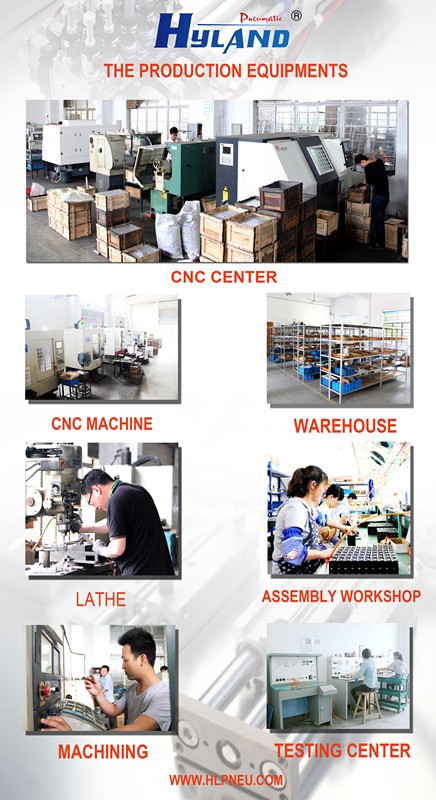

Hailan pneumatic owns 4, 000 square meters of factory, and a batch of experienced professional and technical engineers, various international advanced production and testing equipments. And in the process of production, we accord to the customerized quality goal, compare and analyze the gap between the implementation process and result, make appropriate adjustment and improvement, thus eventually ensure that the customer's quality requirements are reached.
Ningbo Hailan Pneumatic Equipment Co., Ltd has passed the ISO9001: 2000 quality management system certification, and in strict accordance with the requirements of the quality system for both production and management.
"Hailand Pneumatic, Make Things Better".
