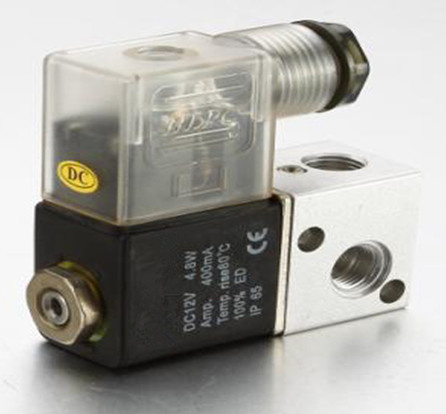

Hyland 3V1 Series Pneumatic Solenoid Valve/Directional Valve
| Price: |
US $ 4/Piece |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T,Western Union |
3V1 series Direct Drive type Solenoid Valve-2/3 way
Thread Option: G and NPT
Standard Voltage Option: DC12V,DC24V,AC110V,AC220V
Material Option: Alloy
Oil Seal Option:NBR
|
Model |
3V1-M5 |
3V1-06 |
|
Media |
40 micron filtered air |
|
Action |
Direct drive type |
|
Port size |
M5 |
1/8 |
|
Ambient temperature |
-10~60°C |
|
Gas temperature |
5~60°C |
|
Air outlet diameter |
1.0mm |
|
Lubrication |
Not Necessary |
|
Pressure range |
0-8bar(0-116.03psi) |
|
Max. pressure resistance |
1.2Mpa |
|
Power Consumption |
AC:4.5VA DC:3W |
|
Protect class |
IP65 |
|
Power connection form |
Lead wire or connector type |
|
Material of body |
Aluminum alloy |
|
Max.action frequency |
10 Cycle/Sec |
|
Insulation |
F Class |
|
Voltage Range |
±10% |
| Prod Model: |
3V1-M5, 3V1-06 |
| 3V1-M5 3V1-06: |
M5 1/8 |
| Type: |
Direct Acting |
| Connection Form: |
Thread |
| Valve Structure: |
Direct-Acting Piston Structure |
| Power Supply: |
AC and DC |
Ningbo Hailan Pneumatic Equipment Co., Ltd is a professional pneumatic enterprise which collected R&D, manufacturing, sales and after-sales service. It is specialized in production of control components, air source treatment units, executive components, and other pneumatic accessories.
Hailan pneumatic owns 4, 000 square meters of factory, and a batch of experienced professional and technical engineers, various international advanced production and testing equipments. And in the process of production, we accord to the customerized quality goal, compare and analyze the gap between the implementation process and result, make appropriate adjustment and improvement, thus eventually ensure that the customer's quality requirements are reached.
Ningbo Hailan Pneumatic Equipment Co., Ltd has passed the ISO9001: 2000 quality management system certification, and in strict accordance with the requirements of the quality system for both production and management.
"Hailand Pneumatic, Make Things Better".
