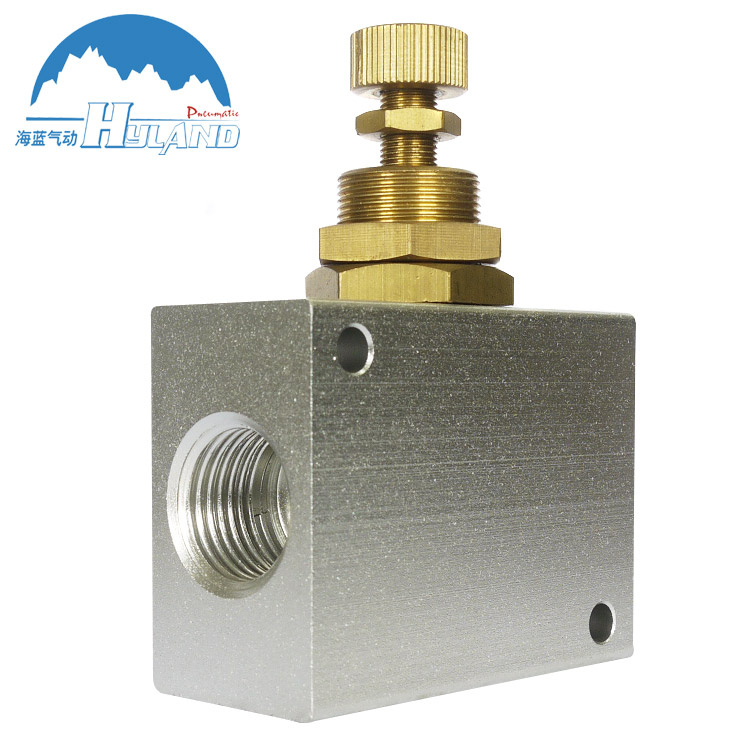

Hyland Asc Series Flow Control Valve
| Price: |
US $ 2.5-10/Piece |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T,Western Union |
1. Flow control valve2. No need lubrication3. Easy for installation and control
|
Type |
ASC100-06 |
ASC200-08 |
ASC300-10 |
ASC300-15 |
|
Fluid |
Air |
|
Pressure range |
0.05-0.95MPa(7-135psi) |
|
Temperature range |
-20-70°C |
|
Port size |
G1/8 |
G1/4 |
G3/8 |
G1/2 |
|
Body material |
Aluminium alloy |
|
Rated flow(L/min) |
Control flow |
200 |
450 |
1250 |
1650 |
|
Free flow |
400 |
800 |
1500 |
2500 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Ningbo Hailan Pneumatic Equipment Co., Ltd is a professional pneumatic enterprise which collected R&D, manufacturing, sales and after-sales service. It is specialized in production of control components, air source treatment units, executive components, and other pneumatic accessories.
Hailan pneumatic owns 4, 000 square meters of factory, and a batch of experienced professional and technical engineers, various international advanced production and testing equipments. And in the process of production, we accord to the customerized quality goal, compare and analyze the gap between the implementation process and result, make appropriate adjustment and improvement, thus eventually ensure that the customer's quality requirements are reached.
Ningbo Hailan Pneumatic Equipment Co., Ltd has passed the ISO9001: 2000 quality management system certification, and in strict accordance with the requirements of the quality system for both production and management.
"Hailand Pneumatic, Make Things Better".
