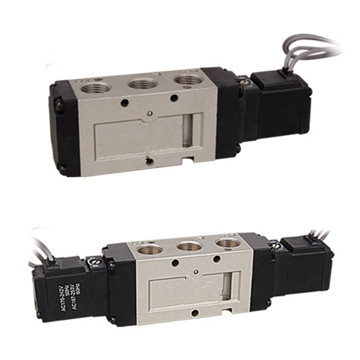

Hyland Vf, Vz Series Pneumatic Valve, Solenoid Valve
| Price: |
US $ 8-50/Piece |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T,Western Union |
Features: 1). Low power consuming. 2). Pilot valve and main valve exhaust together. 3). Small volume, high flow rate 4). Smart appearance and quick action. 5). Can be installat together with the valve manifold.
|

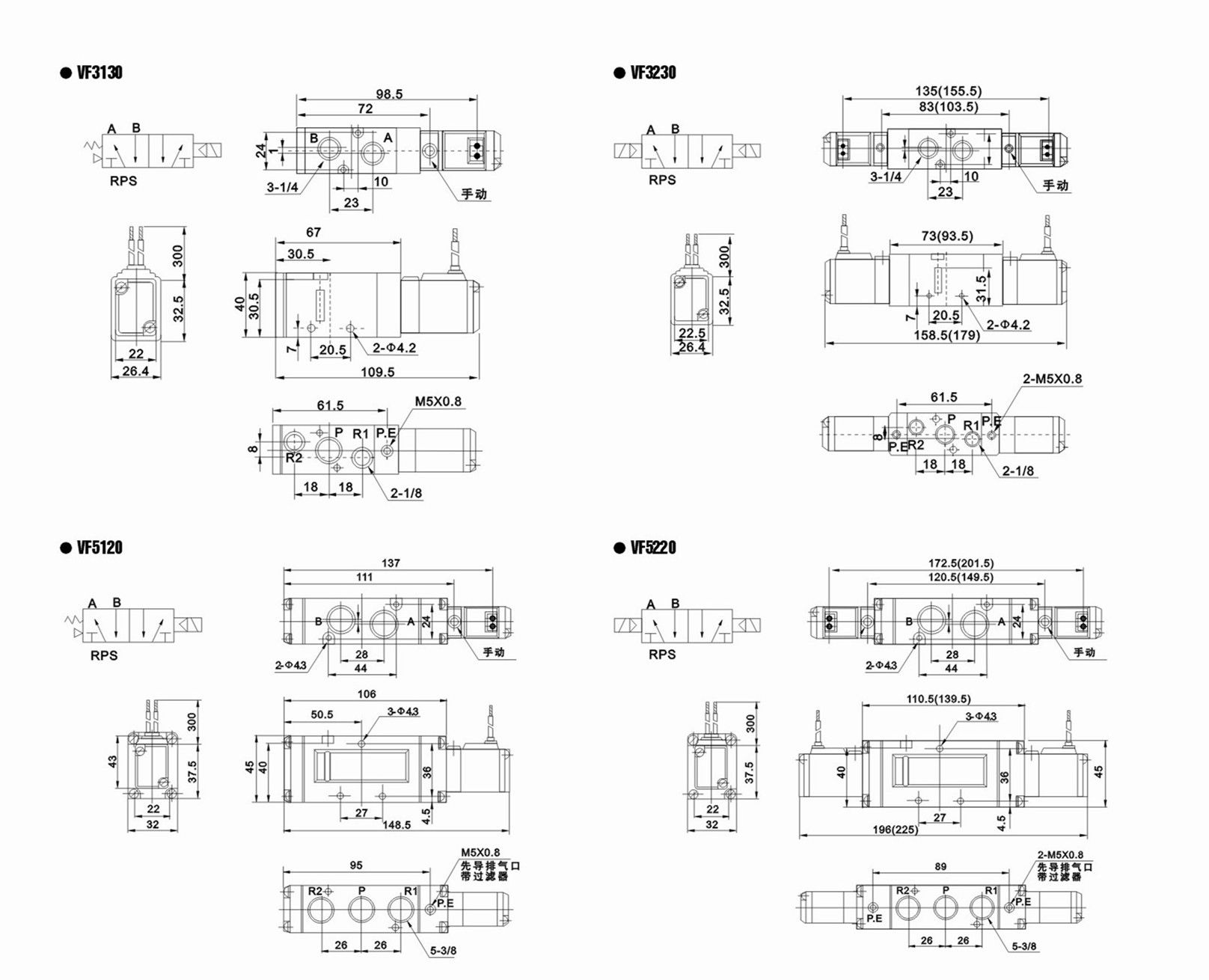

Model |
VF3130 |
VF3230 |
VF5120 |
VF5220 |
VZ5120 |
VZ5220 |
VF33(4/5)30 |
VF53(4/5)20 |
VZ53(4/5)20 |
|
Type |
5 port 2 way |
5 port 3 way |
|
Orifice Size |
16mm 2 (CV=0.89) |
25mm 2 (CV=1.40) |
12mm 2 (CV=0.67) |
12mm 2 (CV=0.67) |
18mm 2 (CV=1.00) |
9mm 2 (CV=0.50) |
|
Media |
Air |
|
Action |
Internally piloted |
|
Operating Pressure Range |
1.5~8bar (21.75~116.03psi) |
|
Proof Pressure |
12bar (174.04psi) |
|
Ambient Temperature Range |
5~50 o C (41~122 o F) |
|
Valtage Range |
±%10 |
|
Power Consumption |
AC:405VA, DC:3W |
|
Protection |
IP65(DIN40050) |
|
Insulation |
F class |
|
Wiring/Connector |
Lead wire or Connector type |
|
Max. Frequency |
5 cycle/second |
|
Min. Activate Time |
0.05 second |
| Prod Model: |
VF, VZ Series |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Type: |
Direct Acting |
| Connection Form: |
Thread |
| Valve Structure: |
Direct-Acting Piston Structure |
| Application: |
Household Usage |
| Power Supply: |
AC and DC |
Ningbo Hailan Pneumatic Equipment Co., Ltd is a professional pneumatic enterprise which collected R&D, manufacturing, sales and after-sales service. It is specialized in production of control components, air source treatment units, executive components, and other pneumatic accessories.
Hailan pneumatic owns 4, 000 square meters of factory, and a batch of experienced professional and technical engineers, various international advanced production and testing equipments. And in the process of production, we accord to the customerized quality goal, compare and analyze the gap between the implementation process and result, make appropriate adjustment and improvement, thus eventually ensure that the customer's quality requirements are reached.
Ningbo Hailan Pneumatic Equipment Co., Ltd has passed the ISO9001: 2000 quality management system certification, and in strict accordance with the requirements of the quality system for both production and management.
"Hailand Pneumatic, Make Things Better".
