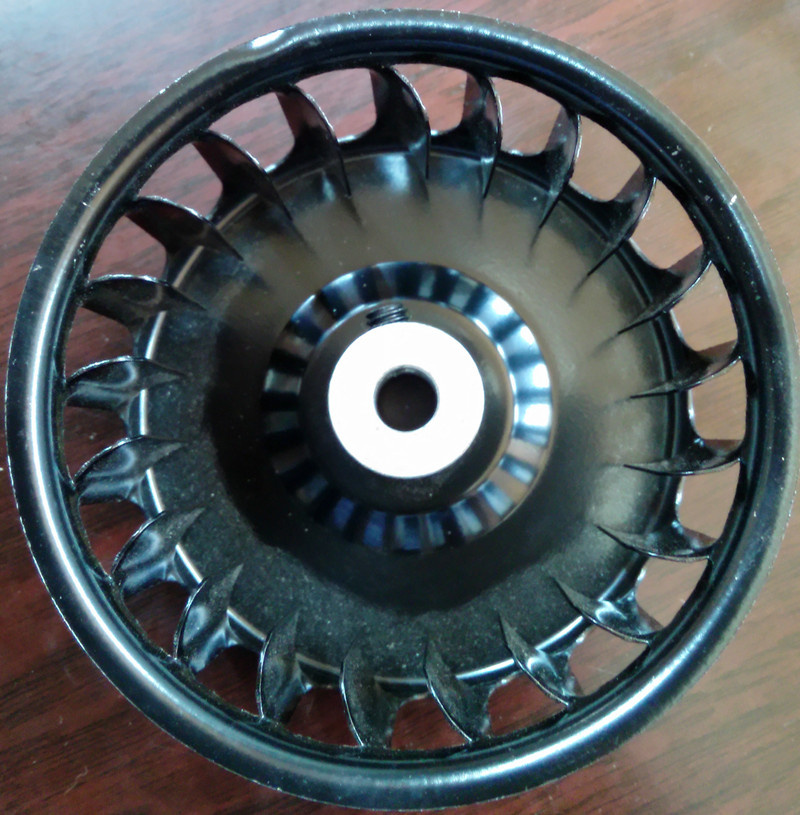

Diameter : 83 mm
Height : 38 mm
Blade Quantity : 21
Axle Hole : 8 mm
With Key Slot
Definition of centrifugal impeller: wind blows toward both sides of motor shaft
There are several shapes of blade such as single board, arc, wing etc. Wing blades have outstanding aerodynamical features, high efficiency, excellent intensity, high rigidity. However, its manufacturing process is complicated, when transporting air with high dust concentration, blades would easily wear off, after they are worn through, impurities enter into blades which cause impeller lose its balance and vibrate. The manufacturing process of flat straight blades is easy, but its air circulating is slightly inferior
Definition of impeller: it's a critical component of centrifugal pump, it's made of a number of camber blades. Its function is to transfer mechanical energy of prime motor directly to liquid in order to boost static pressure and dynamic pressure of the liquid. Impeller is energy supplying device.
It's punched by precise hardware mould, it applies to all kinds of mechanical equipments such as environment testing machine, constant temperature and humidity machine, frozen food machinery, apparel machinery, ironing table machinery, packaging machinery, shoemaking machinery, food machinery etc. High voltage machinery, basic industry, ordinary industrial machinery, factory equipments for air exhausting, air blowing, air ventilating, air conditioning, heating, heat dissipating, cooling, air cleaning etc.
Category: its mechanical structure can be divided into closed type, semi-closed type and opened type. Closed impeller is suitable for transporting clean liquid, due to its high efficiency, it's usually used with multistage centrifugal pump; Semi-closed impeller is suitable for transporting precipitated materials or granular materials, its efficiency is lower than closed impeller; Opened impeller is suitable for transporting materials that contained much suspended matter, its efficiency is rather low, so is the pressure of transporting liquid. Its imbibition style can be divided into sing suction and double suction. Structure of single suction is simple, liquid is only sucked from one side; Structure of double suction is relatively complicated, liquid is sucked from both side, it has big capacity of imbibition. Blade shapes can be divide into backward-curved, radial direction and forward curved, due to backward-curved blades can acquire high static pressure, centrifugal pump often use backward curved blade.
Purpose: water pump impeller is driven by electromotor which gives medium such as water centrifugal force or elevating power and mechanical energy.
Our ventilators are with fantastic fan with excellent performance and elegant shape for circular pipe. With the perfect match between new designed shell and backward centrifugal impeller, our ventilators have the best pneumatic and hydrodynamic performance as well as compact size and practical application, our ventilators are easy to be installed, lightweight, quiet, and able to provide strong power for air feeding, exhausting, returning and purifying. With extremely high pressure, our ventilators can be used for a pipe over several decameters long, able to control multiple areas by one ventilator and can be applied to buildings, indoor air exchanging and pipe pressurizing. Air intake and outlet are designed in compliance with standard pipe diameters and can be connected to a pipe directly at both ends. Our ventilators are wildly used in public places like hotel, hall, conference room, supermarket, station, airport, etc.
