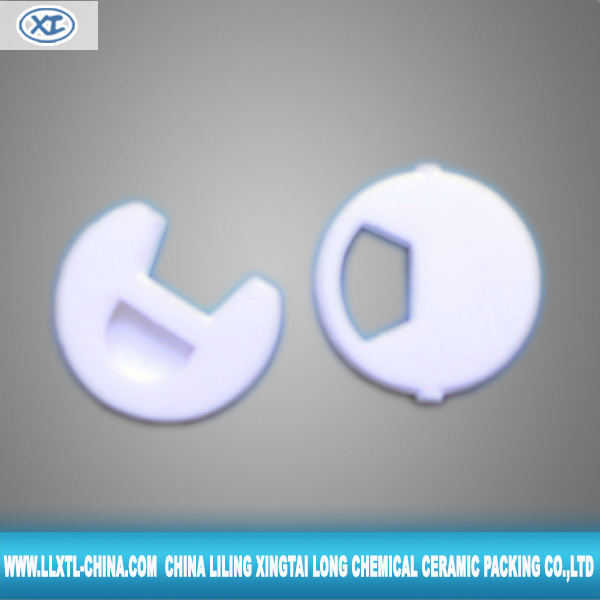

Industrial 96%Alumina Ceramic Disc for Faucet (XTL-AD23)

Price:	US $ 0.01-0.5/Piece
Trade Terms:	FOB
Min Order:	5000/Piece
Pay Type:	L/C,T/T,D/P,Western Union,Paypal

Contact Supplier

Liling Xing Tai Long Special Ceramic Co., Ltd.

Showroom Product Company Profile

Industrial 96%alumina ceramic disc for faucet with bottom price

Liling Xing Tai Long Chemical Ceramic Packing Co., Ltd
20 years manufactory experience for Alumina Ceramic Disc, Good performance with Reasonable Price.

Specification:

OD: 12.5mm---16.2mm ceramic discs
The frictional times is 300, 000 to 500, 000,
Rigidity is 84~86 HRA,
The thickness tolerance is less than 0.05mm, the diameter tolerance is less than 0.05mm.

physical analysis sheet for 95%Al2O3:

	Density		g/cm 3	3.6
Substance Characteristic	Water Absorption			O
	Sinter Temperature			1710
Physical Characteristic	Hardness		HV	≥12
	Bending Strength		Mpa	≥310
	compressive strength		Kgf/cm 2	25000
	Elastic Modulus		GPa	300
	fracture toughness		Map.m 3/2	3 to 4
	Max Using Temperature			1450
Thermal Characteristic	Coefficient of Thermal Expansion		1X 10-6/°C	8
	heat-resistant Temperature		T()	220
	Thermal Conductivity		W/m.k(25-300)	24
		20		>1012
	Volume Resistance	100	>.cm	1012-1013
Electric Characteristic		300		>1010
	Dielectric Strength		KV/mm	18
	Dielectric Constant		100MHz(E)	9.5

Prod Model:	XTL-AD23
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Shape:	Optional
Size:	Optional
Raw Material:	Alumina Ceramic
Style:	Mechanical Seal
Material:	Alumina Ceramic
Shape (For Gasket):	Ring Gasket
Function:	Rotary Sealing
Application:	Hydroseal
Standard:	Nonstandard
