Home Valve Products Insulator High Purity Porous 99.5% Alumina Ceramic Valve Plate

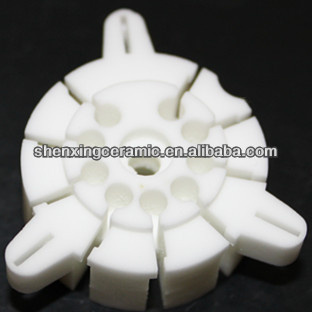

Insulator High Purity Porous 99.5% Alumina Ceramic Valve Plate

Insulator High Purity Porous 99.5% Alumina Ceramic Valve Plate
Price: US $ 0.4/Piece
Trade Terms: FOB
Min Order: 5000/Piece
Pay Type: T/T,Western Union
1. Material: 95% alumina ceramic

2. Advantages:
1)High purity and superior function.
2)Good flateness and high precision in size.
3)Strong production capacity.
4)High qualification rate.
5) There are no fragile plates because we use high strength alumina ceramic.

3. Applications:
1) High power equipments.
2) IC MOS pipe
3) High frequency prower source, communication, mechanical equipment.
4) Heavy current, heavy voltage, high temperature, thermal conductive insulating parts.

4. About us:
Shenxing is engaged in R&D, design, manufacture, construction, and operations for technical ceramic parts and components. LED lighting ceramic, electrothermal ceramic, ceramic resistors, electronic ceramic, steatite ceramic, zirconia ceramic, alumina ceramic and etc. Are our main products. These products have good insulation and thermal conductivity. The advantages are irreplaceable. They are applied to power, high-frequency induction welder, audio, computer, LED, bathrooms, etc.
We can produce products according to your drawings or samples. Welcome you contact us for more information. I hope Shenxing can have the chance to give you the best service.
Thank you and best regards.
Siri
Performance
Item   Index Unit                    Steatite ceramic            95 Al2O3              99 Al2O3
Physical Characteristics    Bulk density             g/cm 3 2.7 3.6 3.6
Water absorption    % 0 0 0

Mechanical Characteristics

Flexural strength  Mpa 145 320 340
Hardness Vickers  Gpa 5.7 12.2 13.5
Elastic modulus   Gpa 120 280 320
Poisson's ratio   - 0.21 0.22 0.23
Thermal Characteristics  Linear expansion coefficient     20-500 0 C       10 -6 / 0 C 7.9 7.1 7.2
Thermal conductivity  w/(m.k) 2.5 16 24
Specific Heat     *10 -3 J/(kg*K) 0.75 0.78 0.78
Electrical Characteristics  Dielectric constant(1MHZ)      - 6.2 9 9.4
Dielectric loss angle                *10 -4 18 15 5
Dielectric strength                 *10 6 V/m 18 12 15

Prod Model: According to your drawing or samples
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Good Insulating: High Temperature Resistance
Feature: Insulating Ceramics
Color: White
Established in 1993, Yixing Shenxing Technology Co., Ltd. is engaged in R&D, design, manufacture, construction, and operations for technical ceramic parts and components. LED lighting ceramic, electrothermal ceramic, ceramic resistors, electronic ceramic, steatite ceramic, zirconia ceramic, alumina ceramic and etc. are our main products. These products have good insulation and thermal conductivity. The advantages are irreplaceable. They are widely used in electric appliance industry, automotive industry, mechanical industry, engineer industry and etc.
Shenxing Technology operates and maintain a Quality Assurance Management System fully meeting ISO9001: 2008. We can process products according to your drawings.
Welcome you contact me for more information.
I hope Shenxing can have the chance to give you the best service in the future.
